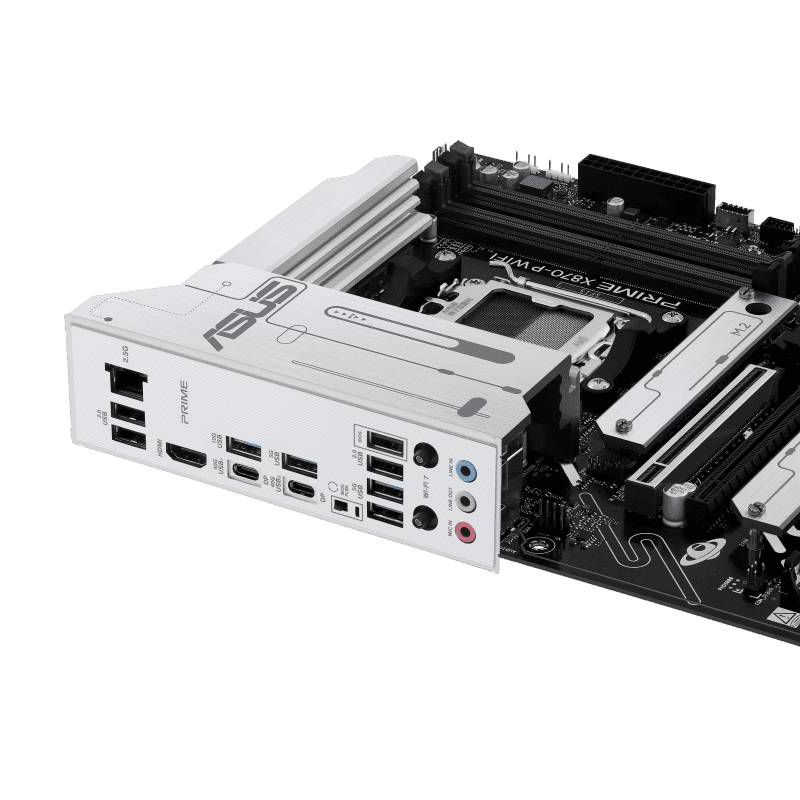

ASUS PRIME X870-P WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
Original price was: R6599,00.R5969,00Current price is: R5969,00.
Or as low as R2984,50 / month interest-free, using your existing credit card. For orders over R6000,00.How it worksOut of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Description
Features:
- ATX Form Factor
- AMD X870 Chipset
- Socket AM5
- AMD Ryzen 9000, 8000 & 7000 Series CPUs Supported
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports up to DDR5-8000MHz+(OC)
- 1x PCIe 5.0 x16 Slot (supports x16 mode)
- 1x PCIe 4.0 x16 Slot (supports x8/x4 Mode), 2x PCIe 4.0 x16 Slots (support x1 Mode)
- Supports 4x M.2 Slots & 2x SATA 6Gb/s Ports
- 2x USB 4 Type-C (40Gbps) Ports, 1x USB 10Gbps Type-A Port
- 3x USB 5Gbps Type-A Ports, 4x USB 2.0 Type-A Ports
- 1x HDMI Port, 1x Realtek 2.5Gb Ethernet Port, 3x Audio Jacks
- Realtek 2.5Gb Ethernet, ASUS LANGuard
- 16+2 Phase Power Design with DrMOS
- 2x M.2 Heatsinks
- 4x Chassis Fan Headers
- 1x Water Pump+ Header, CPU / CPU OPT Fan Headers & AIO Pump Header
- 3x Addressable Gen 2 RGB Headers
- Realtek 7.1 Surround Sound High Definition Audio Codec
- Supports DTS Audio Processing
- 3 Year Warranty
| SPECIFICATIONS | |
|---|---|
| Brand | ASUS |
| Series | PRIME |
| Model | PRIME X870-P |
| CPU | AMD Socket AM5 for AMD Ryzenâ„¢ 9000, 8000 & 7000 Series Desktop Processors. Refer to ASUS support for CPU support list. |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 (supports up to 8000+MT/s OC), ECC and Non-ECC, Un-buffered Memory. Dual channel memory architecture. Supports AMD Extended Profiles for Overclocking (EXPOâ„¢) and ASUS Enhanced Memory Profile (AEMP). Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x HDMI™ port (supports 4K@60Hz), 2 x USB4® (40Gbps) ports supporting USB Type-C® display outputs (supports max. 4K@60Hz as specified in DisplayPort 1.4a). Graphics specifications may vary between CPU types. |
| Expansion Slots | AMD Ryzenâ„¢ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode). AMD Ryzenâ„¢ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode). AMD X870 Chipset: 2 x PCIe 4.0 x16 slots (support x1 mode). PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs. M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports. AMD Ryzenâ„¢ 9000 & 7000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode). AMD Ryzenâ„¢ 8000 Series: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode). AMD X870 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode). |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| USB (Rear) | 2 x USB4® (40Gbps) ports (USB Type-C®), 1 x USB 10Gbps port (Type-A), 3 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports (Type-A) |
| USB (Front) | 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports), 2 x USB 2.0 headers (supporting 4 additional USB 2.0 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC. Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking, supports up to 24-Bit/192 kHz playback. Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (USB Type-C®), 1 x USB 10Gbps port (Type-A), 3 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports (Type-A), 1 x HDMI™ port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers. Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors. Storage Related: 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports. USB: 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports), 2 x USB 2.0 headers (supporting 4 additional USB 2.0 ports). |
| Miscellaneous | 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O. ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot. ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design. ASUS EZ DIY: BIOS FlashBackâ„¢ button, BIOS FlashBackâ„¢ LED, ProCool, Pre-mounted I/O shield, SafeSlot. Aura Sync: Addressable Gen 2 headers. |
| Software Features | ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving), ASUS Driver Hub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 for Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial). UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey). |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
| Warranty | 3 Year Warranty |
Additional information
| Weight | 2,5 kg |
|---|
