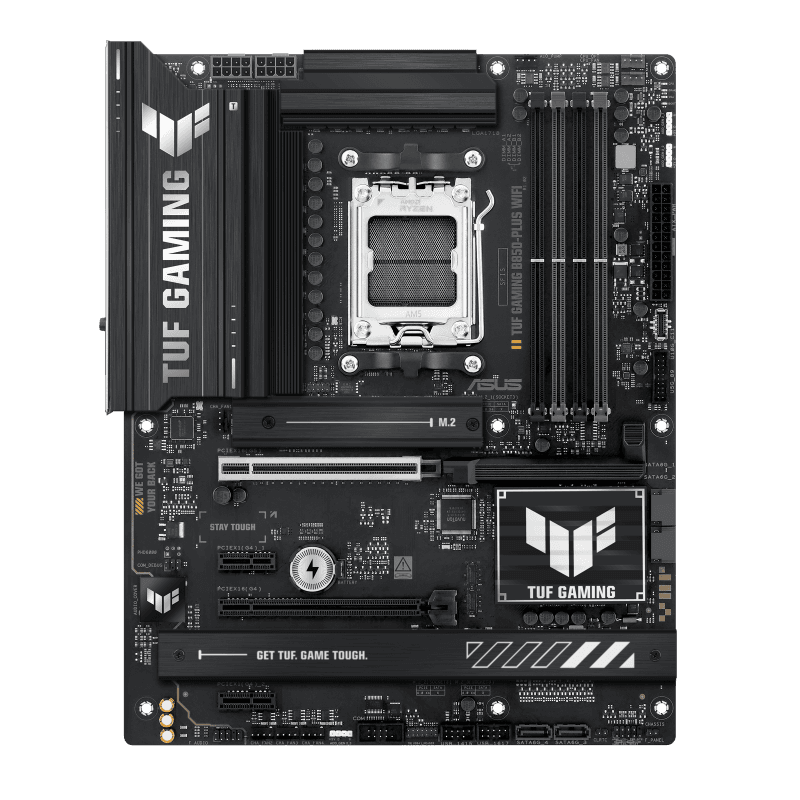

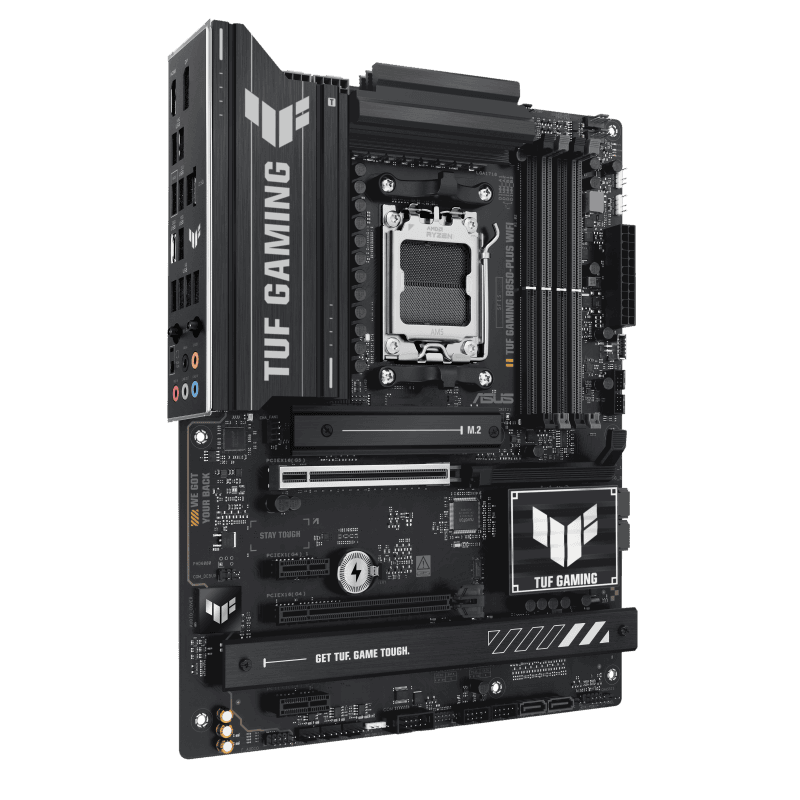

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard - Image 1

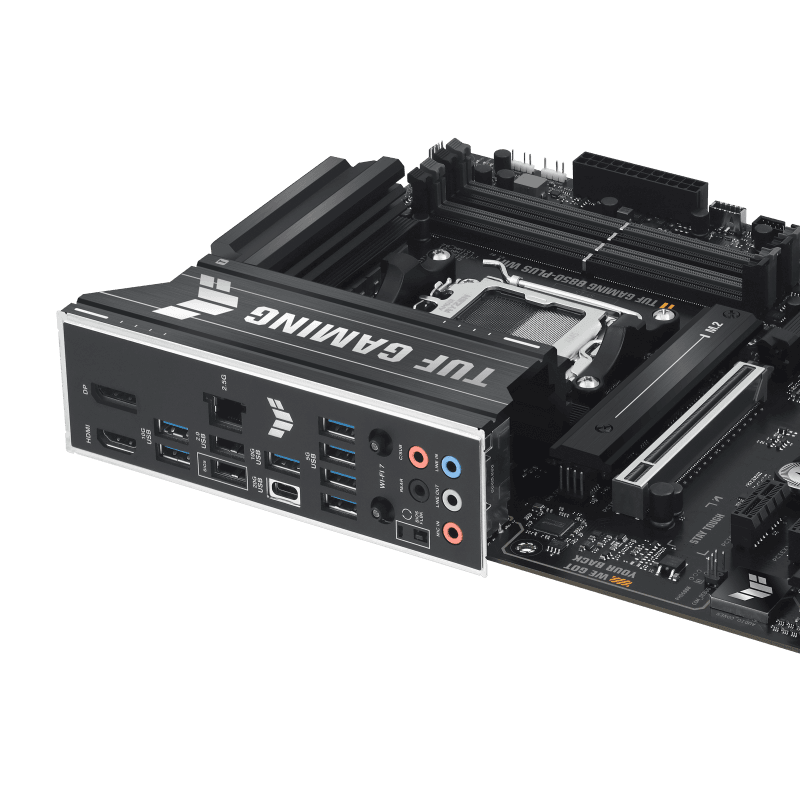

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard - Image 2

Click to enlarge

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard - Image 2

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard - Image 3

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard - Image 4

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

R5799,00

Ordered:0

Items available:13

– ATX Form Factor
– AMD B850 Chipset
– Socket AM5
– 4x DDR5 DIMM Slots, Supports Up To 192GB
– Supports Up to DDR5-8000MHz+ (OC)
– Supports AMD EXPO DDR5 Modules
– 1x PCIe 5.0 x16 Slot (supports x16 mode)
– 1x PCIe 4.0 x16 Slot (supports x4 mode)
– 2x PCIe 4.0 x1 slots
– Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
– 1x USB 20Gbps Type-C Port
– 3x USB 10Gbps Type-A Ports, 4x USB 5Gbps Type-A ports
– 2x USB 2.0 Type-A Ports
– 1x DisplayPort, 1x HDMI™ port
– 1x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port
– 5x Audio jacks, 1x BIOS FlashBack Button
– Realtek 2.5Gb Ethernet Port
– 802.11be Tri-Band 320MHz Wi-Fi 7 Module
– Bluetooth v5.4
– Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
– DIGI+ VRM (- Digital power design with DrMOS)
– ASUS Q-Design
– ASUS Thermal Solution
– ASUS EZ DIY
– Aura Sync
– 3 Year Warranty

13 in stock

Add to wishlist

SKU: TUF GAMING B850-PLUS WIFI Categories: AM5, AMD, Motherboards, Specials Tags: ASUS_Cash_Back, EngineeredToWin

Description
Shipping & Delivery

Description

ASUS TUF GAMING B850‑PLUS WIFI

Built for marathon gaming with AMD Ryzen™ 9000/8000/7000 CPUs, the TUF GAMING B850‑PLUS WIFI combines military‑grade durability, an 14+2+1 (80 A) power design, PCIe 5.0, tri‑band Wi‑Fi 7, and comprehensive cooling to deliver rock‑solid performance and modern connectivity.

Key Features

14+2+1 (80 A) Power Stages: Premium DrMOS and enlarged VRM heatsinks for stable overclocking headroom.
PCIe 5.0 x16 SafeSlot: Reinforced slot ensures next‑gen GPU performance with EMI protection.
DDR5 8000+ MT/s (OC): Four DIMM slots support AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) for extreme memory speeds.
Wi‑Fi 7 & 2.5 Gb Ethernet: Tri‑band 2×2 Wi‑Fi 7 with ASUS Q‑Antenna and Realtek 2.5 Gb LAN for ultra‑low latency.
Ultra‑Fast USB: Rear USB 20 Gbps Type‑C, front USB 10 Gbps Type‑C, plus internal USB4® header.
Triple M.2 & SATA: One PCIe 5.0×4 and two PCIe 4.0×4 M.2 slots plus four SATA 6 Gb/s ports for expansive NVMe and SATA storage.
Comprehensive Cooling: Heatsinks on VRM, chipset, and M.2 slots, Smart Fan 6 headers, and dedicated AIO pump support keep temperatures in check.
TUF Protection & DIY: SafeSlot, SafeDIMM, ESD guards, Q‑LED diagnostic, Q‑Release PCIe, M.2 Q‑Latch, and pre‑mounted I/O shield for reliable builds.

Specification	Detail
CPU Socket	AMD AM5 (Ryzen™ 9000/8000/7000 Series)
Chipset	AMD B850
Memory	4× DDR5 DIMM, up to 256 GB, EXPO & AEMP; DDR5 8000+ MT/s OC
PCIe Slots	1× PCIe 5.0×16 SafeSlot 1× PCIe 4.0×16 (x4) 2× PCIe 4.0×1
Storage	1× M.2 PCIe 5.0×4 (2280) 1× M.2 PCIe 4.0×4 (2242‑22110) 1× M.2 PCIe 4.0×4 (2280) 4× SATA 6 Gb/s
LAN	Realtek 2.5 Gb Ethernet with TUF LANGuard
Wireless	Wi‑Fi 7 (802.11be) 2×2, Bluetooth 5.4
Rear USB	1× USB 20 Gbps Type‑C 3× USB 10 Gbps Type‑A 4× USB 5 Gbps Type‑A 2× USB 2.0
Front USB	1× USB 10 Gbps Type‑C header 1× USB 5 Gbps header 2× USB 2.0 headers
Audio	Realtek ALC1220P 7.1‑ch HD Codec; DTS Audio Processing; 120 dB SNR playback
Form Factor	ATX (30.5 × 24.4 cm)
OS Support	Windows 11

Why You’ll Love It

Whether you’re pushing high-core-count Ryzen CPUs, running multiple NVMe drives, or streaming at the highest settings, the TUF GAMING B850‑PLUS WIFI delivers military-grade reliability, blazing connectivity, and advanced cooling in a rock-solid ATX package.
