ASUS TUF Gaming X870-PLUS WIFI AMD Ryzen Socket AM5 ATX Desktop Motherboard
R7899,00
– ATX Form Factor
– AMD X870 Chipset
– Socket AM5
– AMD Ryzen 9000 & 8000 & 7000 Series CPUs Supported
– 4x DDR5 DIMM Slots, Supports Up to 192GB
– Supports up to DDR5-8000MHz+(OC)
– 1x PCIe 5.0 x16 slot (supports x16 mode)
– 1x PCIe 4.0 x16 Slot (Supports x8/x4 Mode), 1x PCIe 4.0 x16 Slot (Supports x4 Mode)
– Total Supports 4x M.2 Slots & 2x SATA 6Gb/s Ports
– 2 x USB 4 Type-C (40Gbps) Ports, 3x USB 10Gbps Type-A Ports
– 4x USB 5Gbps Type-A Ports, 1x USB 2.0 Type-A Port
– 1x HDMI port, 1x Wi-Fi module, 1x Realtek 2.5Gb Ethernet port, 5x Audio jacks
– Realtek 2.5Gb Ethernet
– 802.11be 2×2 Tri-Band WiFi 7
– Bluetooth v5.4
– 16(80A)+2(80A)+1(80A) Power Stages
– 2x M.2 Heatsinks for Three M.2 Slots
– 4x Chassis Fan Headers
– Water Pump+ Header, CPU / CPU OPT Fan Headers & AIO Pump Header
– 3x Addressable Gen 2 RGB Headers
– Realtek ALC1220P Audio Codec
– Exclusive DTS Audio Processing
– 3 Year Warranty
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
ASUS TUF GAMING X870-PLUS WIFI – AM5 ATX Motherboard
Built for Ryzen™ 9000/8000/7000, the TUF GAMING X870-PLUS WIFI combines a robust
16+2+1 (80 A) power design with DDR5 up to 8000+ MT/s (OC), PCIe® 5.0 for your GPU,
dual PCIe 5.0 M.2 plus two PCIe 4.0 M.2, USB4® 40 Gbps on the rear I/O, and next-gen networking with
Wi-Fi 7 and Realtek 2.5 GbE—wrapped in TUF-grade durability and DIY conveniences like PCIe Q-Release and M.2 Q-Latch.
Key Features
- Power for modern Ryzen: 16+2+1 power stages (80 A) with enlarged VRM heatsinks for stable boosts on high-core CPUs.
- Fast DDR5: 4× DIMMs up to 256 GB and 8000+ MT/s (OC) with EXPO/AEMP tuning.
- Next-gen graphics & storage: 1× PCIe 5.0 x16 SafeSlot for GPUs, plus 2× PCIe 5.0 M.2 (CPU-linked) and 2× PCIe 4.0 M.2—each under heatsinks.
- Creator-grade I/O: Rear 2× USB4 40 Gbps (Type-C, DP 1.4 display out), and a front USB-C 20 Gbps header with up to 30 W USB-PD fast charge.
- Networking: Wi-Fi 7 (2×2, BT 5.4) and Realtek® 2.5 Gb Ethernet with LANGuard. (Full Wi-Fi 7 features require Windows 11 24H2+.)
- Audio: Realtek ALC1220P 7.1-ch with DTS processing, premium caps, shielding, and de-pop circuitry.
- DIY & protection: PCIe Slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED, pre-mounted I/O shield, SafeSlot/SafeDIMM, ESD guards, and BIOS FlashBack™.
| Specification | Detail |
|---|---|
| CPU Support | AMD AM5 — Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM, dual-channel, up to 256 GB; up to 8000+ MT/s (OC); AMD EXPO™ / ASUS AEMP supported |
| Graphics I/O | 1× HDMI 2.1 (4K60) · 2× USB4 Type-C with DP 1.4 display output (up to 4K60) |
| Expansion Slots | Ryzen 9000/7000: 1× PCIe 5.0 x16 (SafeSlot) Ryzen 8000: 1× PCIe 4.0 x16 (x8/x4 mode) Chipset: 1× PCIe 4.0 x16 (x4) |
| Storage | 4× M.2 total + 2× SATA 6 Gb/s: • M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000) • M.2_2: PCIe 5.0 x4 (disabled on Ryzen 8000) • M.2_3: PCIe 4.0 x4 · M.2_4: PCIe 4.0 x4 (2242–22110) |

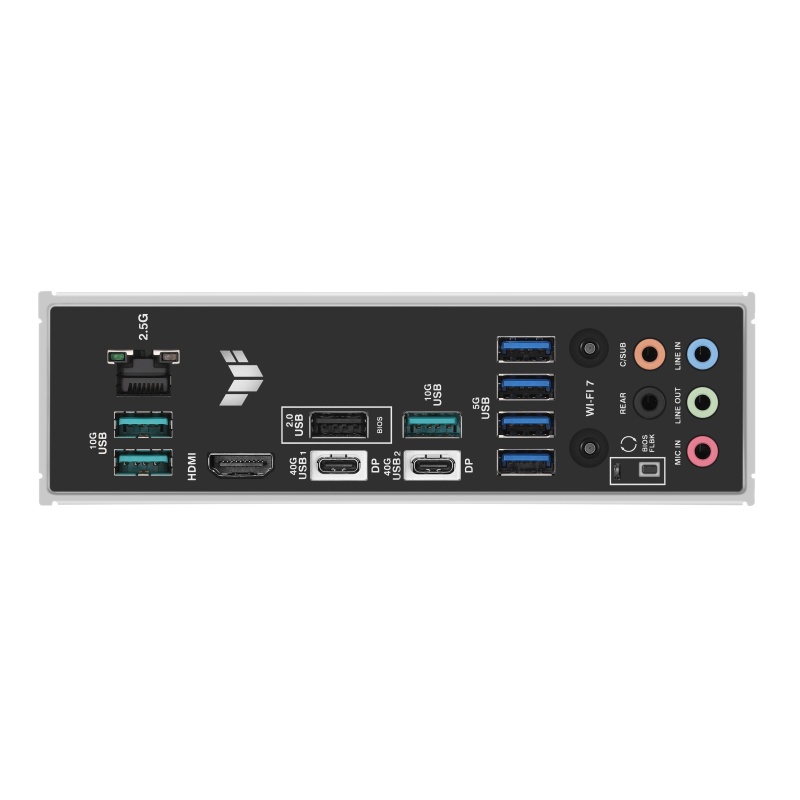

| USB (Rear) | 2× USB4 40 Gbps (Type-C) · 3× USB 10 Gbps (Type-A) · 4× USB 5 Gbps (Type-A) · 1× USB 2.0 (Type-A) |
| USB (Front) | 1× USB-C 20 Gbps header (PD up to 30 W) · 1× USB 5 Gbps header (adds 2) · 2× USB 2.0 headers (adds 4) |
| Networking | Realtek® 2.5 GbE · Wi-Fi 7 (2×2) · Bluetooth 5.4 |
| Audio | Realtek ALC1220P 7.1-ch HD, 120 dB SNR playback / 113 dB SNR recording; 5× rear audio jacks |
| Rear I/O (other) | BIOS FlashBack™ button, HDMI, 2.5 GbE, Wi-Fi module, 1× USB 2.0 (Type-A) |
| Headers & Cooling | CPU_FAN, CPU_OPT, AIO_PUMP, W_PUMP+, 4× CHA_FAN, 3× ARGB Gen 2, Clear CMOS, Thermal Sensor, Q-LED |
| Form Factor | ATX (30.5 × 24.4 cm) · Windows 11 support |
Why You’ll Love It
If you want a durable AM5 board with Gen-5 performance where it matters, creator-friendly USB4, fast front-panel USB-C with real 30 W charging, and next-gen Wi-Fi 7, the TUF GAMING X870-PLUS WIFI is a balanced, upgrade-ready platform for high-FPS gaming and everyday creation.
