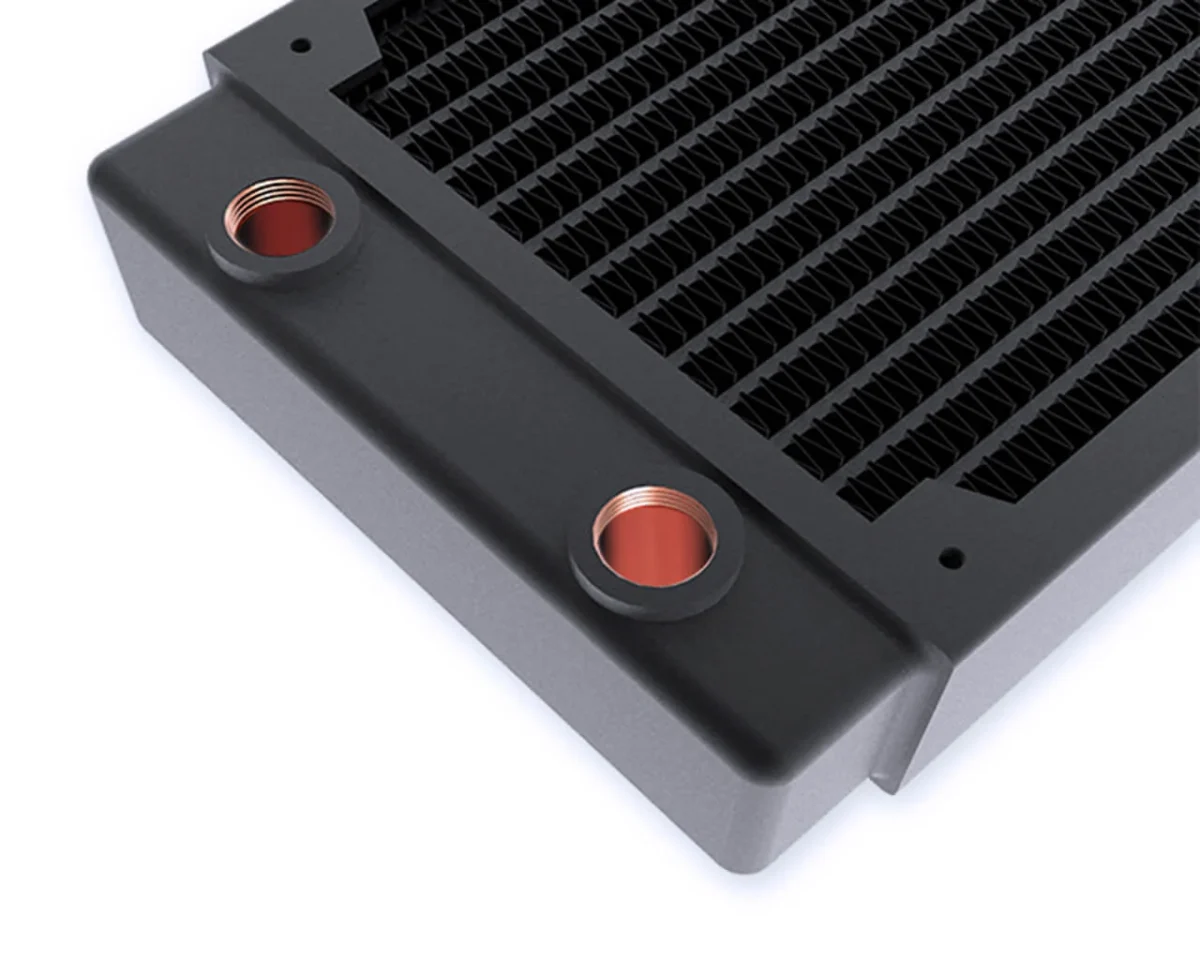

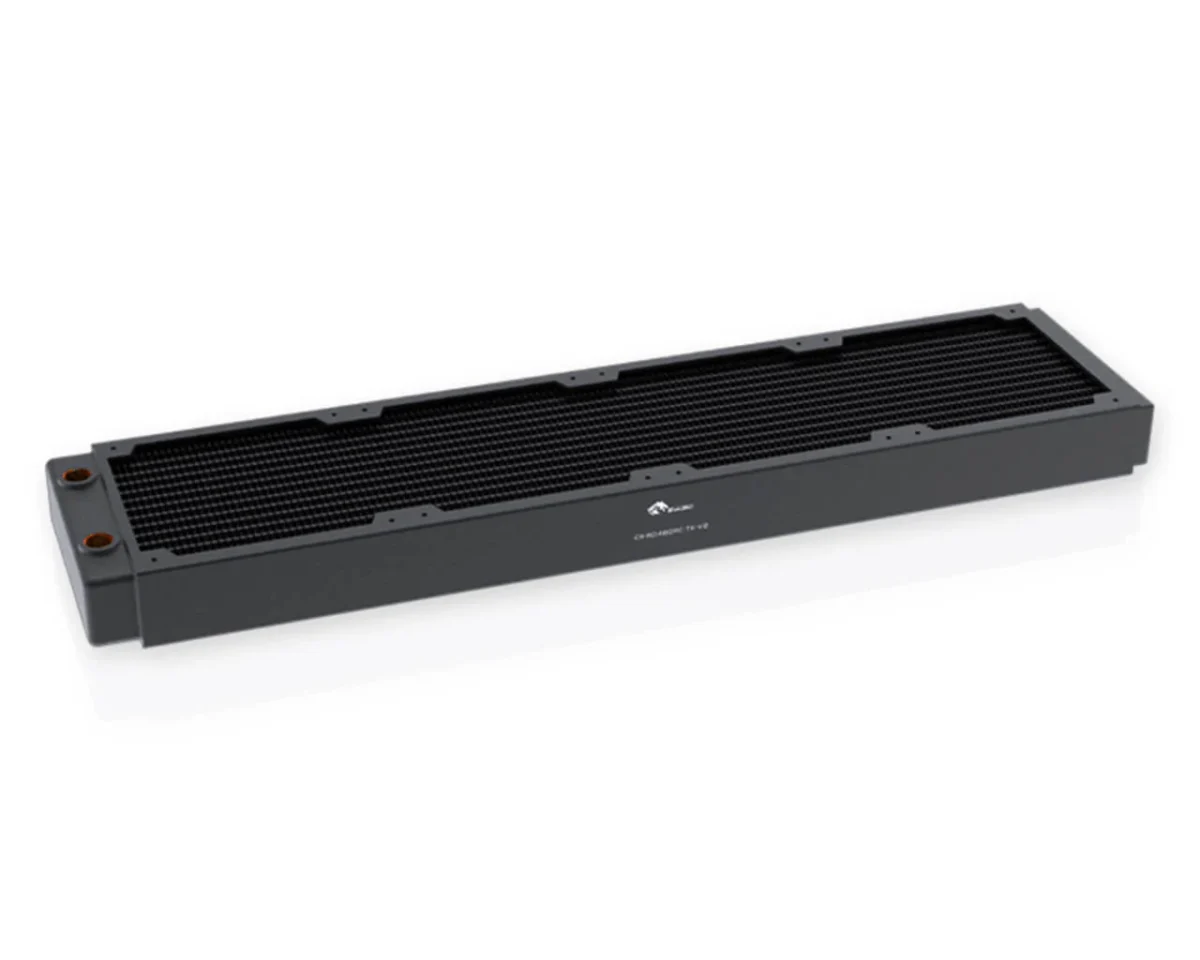

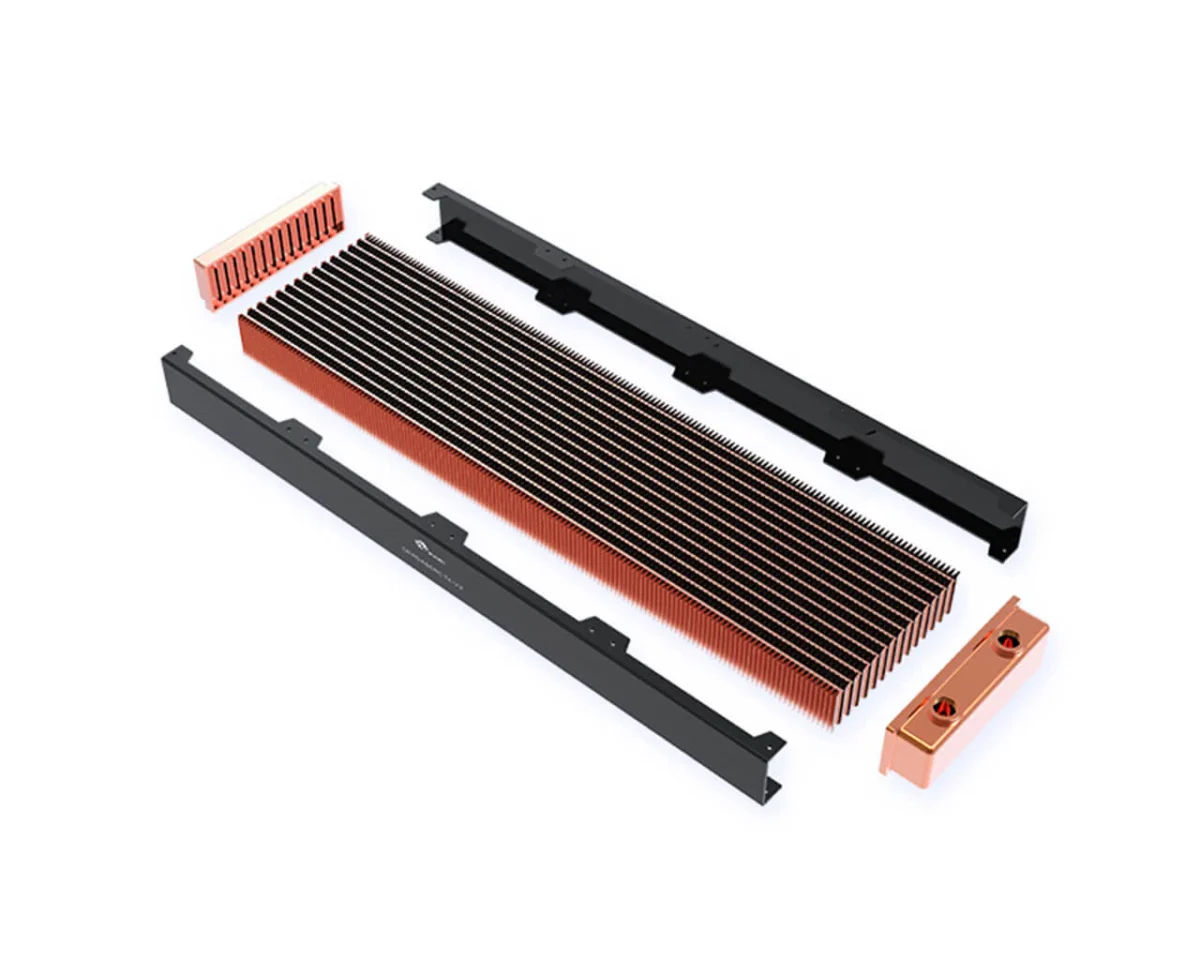

Bykski CR-RD480TR-TK-V2 radiator is designed as a single row of copper channels. The thickness of the radiator is 40mm which gives this radiator more cooling surface area. The water channels and wave fins are made of red copper with a thermal conductivity up to 401 w/(M.K.). There are 12 water channels aligned in a single row.
Features
- 12 Channel Design
- Industry Standard G1/4 Thread
- High-Quality Copper Design
Specifications
- Material: Red Copper / Iron side plates (not in contact with coolant)

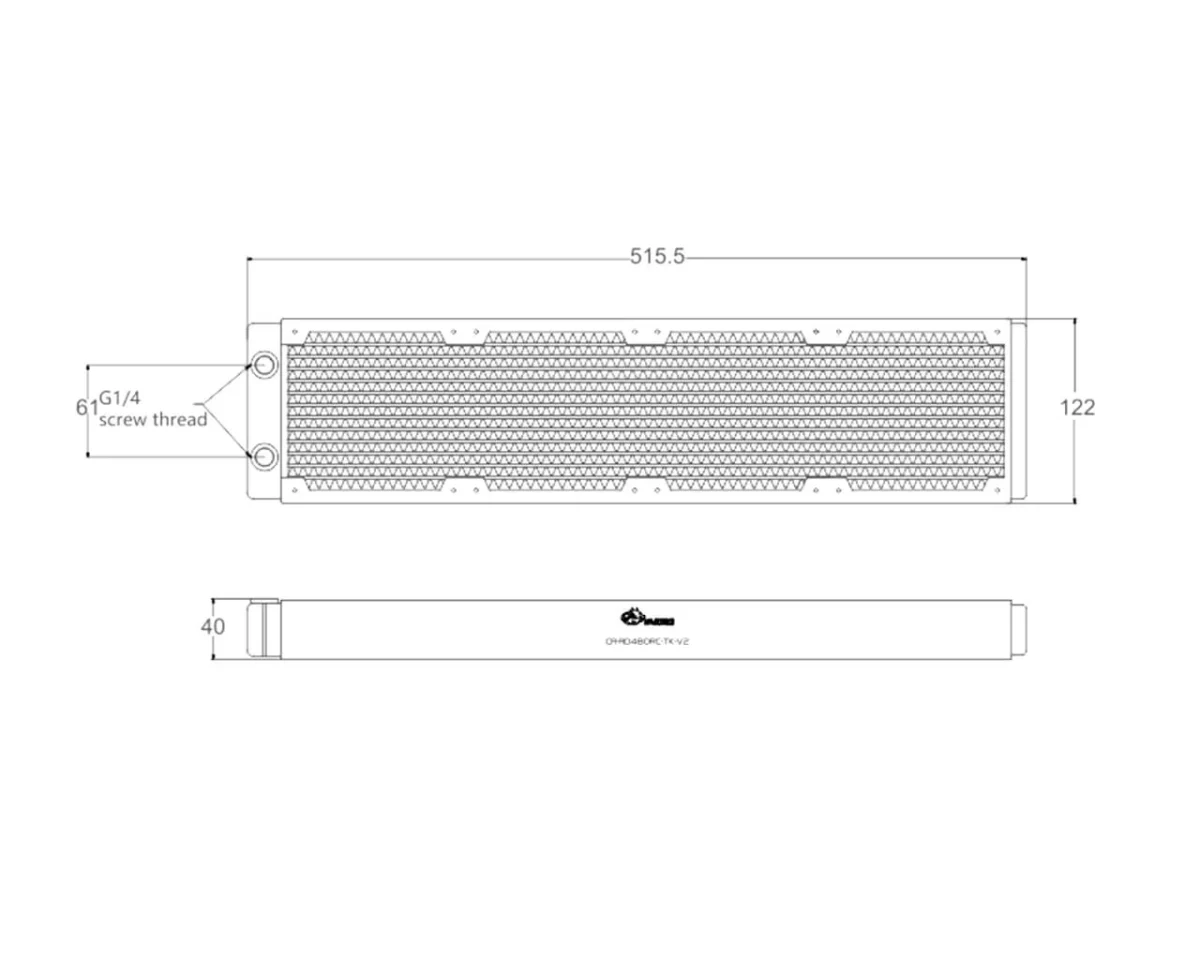

- Dimensions: 515.5mm x 122mm x 40mm
- Ports: 2
- Port Thread: G 1/4
- Mount Thread: M3
- Channels: 12
- Pressure: 1.5bar
- Fin Density: 12FPI
Compatibility
- Fans:120mm
Included Parts
- 1x Radiator
- 16x M3 x 30mm Mounting Hardware
Warnings
The radiator is formed by a high-temperature integrated soldering process. Due to this, there will be a slight colour change in the copper, this is a result of the process not rust.

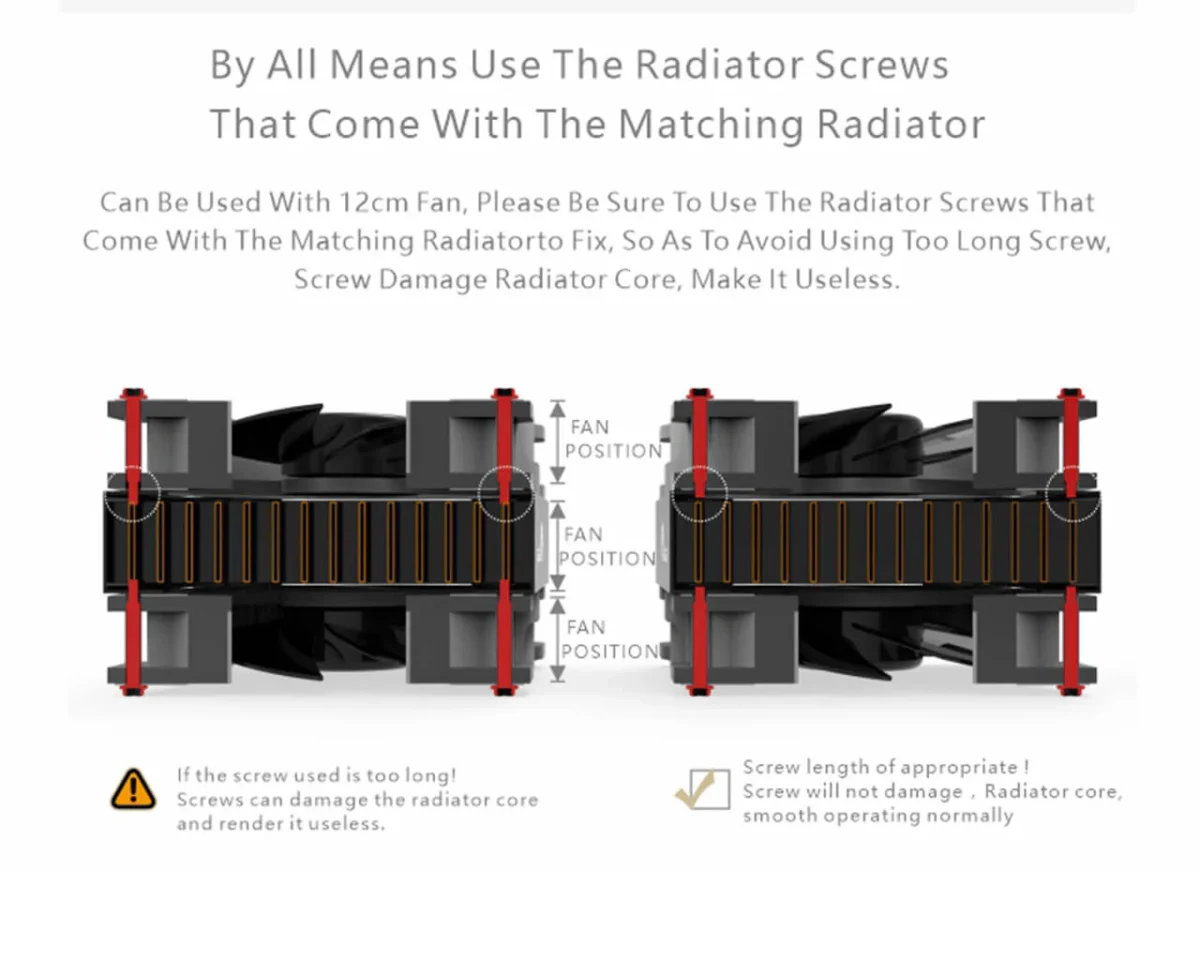

Please pay attention to the length of the screw. If the screw is too long, it will break through the radiator and cause water leakage, voiding warranty.The radiator comes with M3X30mm screws suitable for 120mm fans of 25mm thickness. If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max, not included)
Not responsible for any hardware damage. Use at your own risk.
