GIGABYTE B650 EAGLE AX – ATX AMD Motherboard
R3799,00
– ATX Form Factor
– AMD B650 Chipset
– Socket AM5 Supports Ryzen 7000 & 8000 Series Processors
– 4x DDR5 DIMM Slots, Supports Up to 256GB
– Supports Up to DDR5-7600 (OC)
– Supports AMD EXPO & Intel XMP 3.0
– 1x PCIe 4.0 x16 Slot (x16 Physical)
– 3x PCIe 3.0 x1 Slots (x16 Physical)
– 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot
– 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports

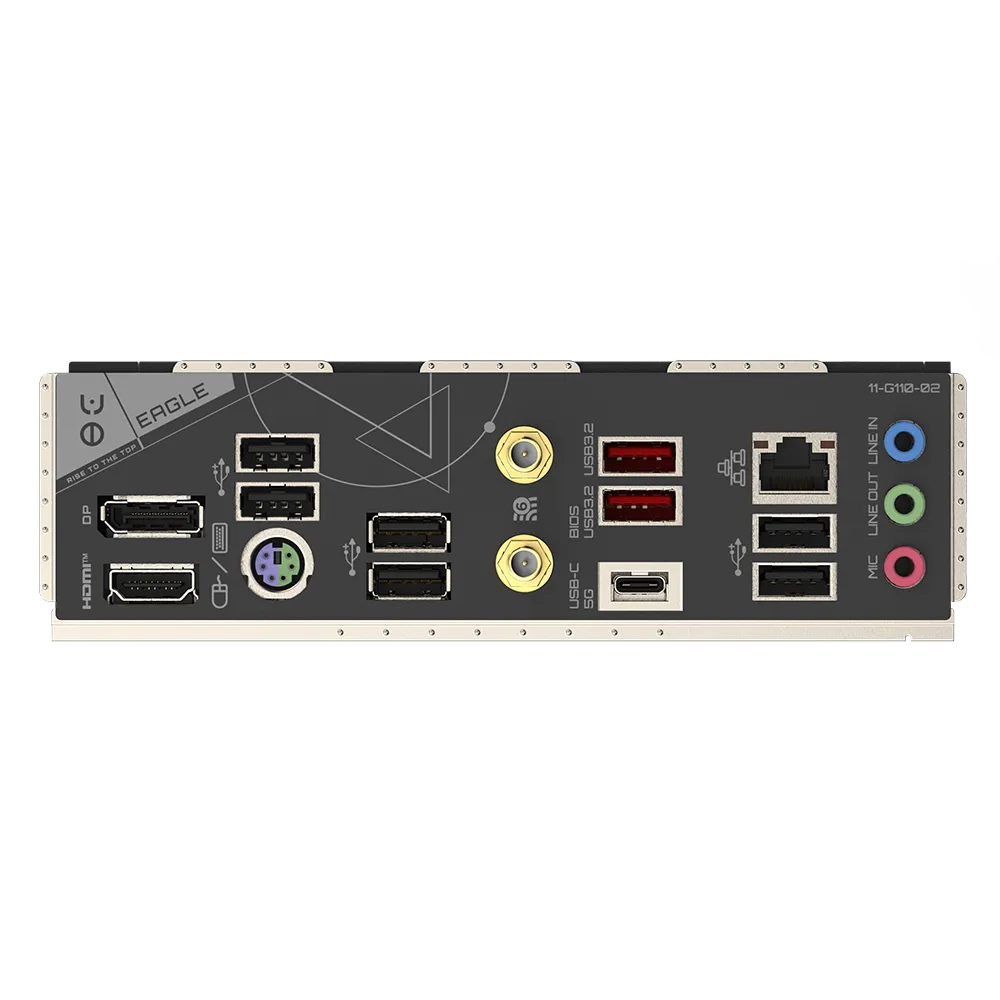

– Supports Front-Panel USB Type-C Port
– 1x USB 5Gbps Type-C Port
– 2x USB 10Gbps Type-A Port
– 6x USB 2.0 Type-A Ports
– 1x DisplayPort 1.4 Port
– 1x HDMI 2.1 Port
– 1x PS/2 Combo Port (Keyboard/Mouse)
– 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
– 2x SMA Connectors
– Realtek Gigabit Ethernet RJ-45 LAN
– WiFi 6E 2×2 MIMO Tri-Band Adapter, Bluetooth 5.3
– Realtek High-Definition Audio Codec
– PCIe x16 EZ-Latch Quick-Release Mechanism
– Direct 12+2+2 Phase Digital VRM Solution
– Gigabyte Q-Flash Plus
– Gigabyte M.2 Thermal Guard
– Gigabyte Smart Fan 6 Technology
– Supports Windows 11 64-bit
– 3 Year Warranty
10 in stock
GIGABYTE B650 EAGLE AX – ATX AMD Motherboard

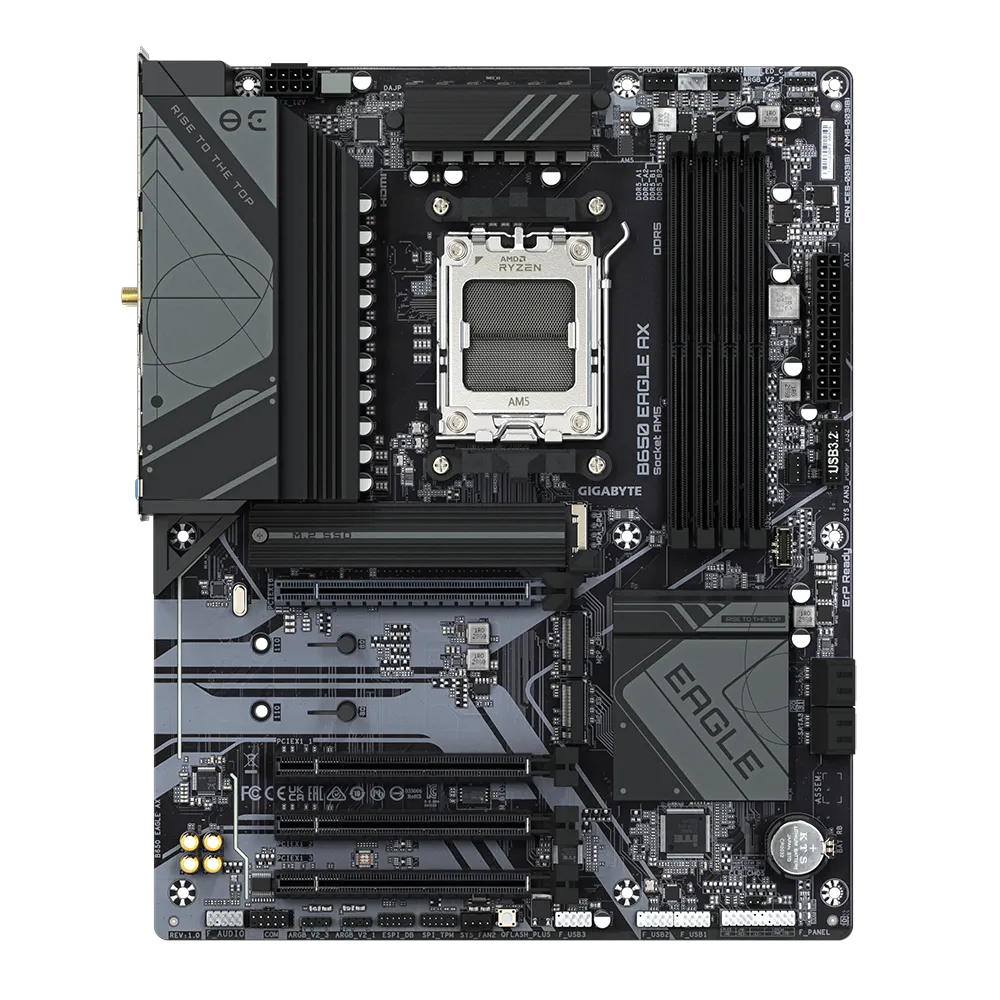

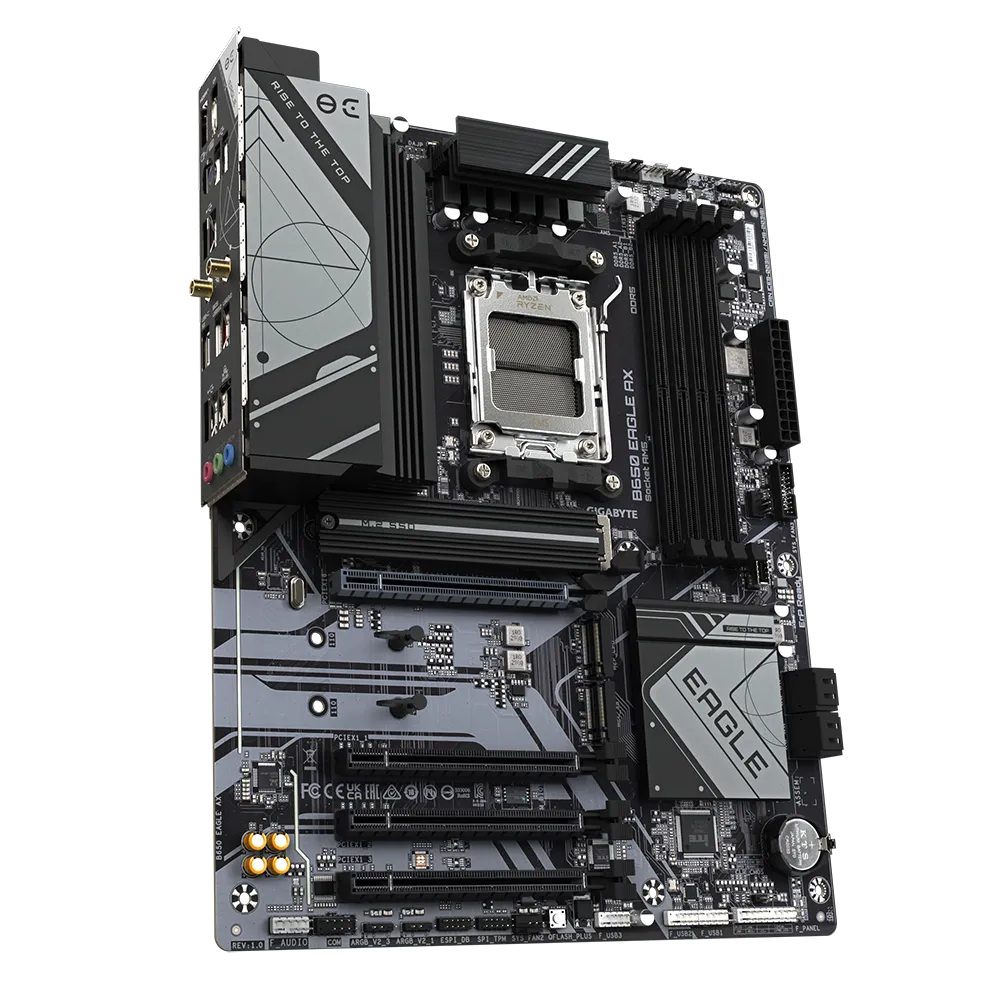

The GIGABYTE B650 EAGLE AX (rev. 1.0/1.1) is an AMD Socket AM5 motherboard supporting AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors. It features a 12+2+2 Phases Digital VRM Solution for unparalleled performance, dual channel DDR5 memory with AMD EXPO™ and Intel® XMP support, super speed storage with PCIe 5.0 and 4.0 M.2 connectors, advanced thermal design including M.2 Thermal Guard, EZ-Latch for PCIe slot, fast networks with Wi-Fi 6E and GbE LAN, extended connectivity with DP, HDMI, and rear USB 10Gb/s, Smart Fan 6 for cooling, and Q-Flash Plus for BIOS updates without installed components.
Key Features
- AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors for cutting-edge performance.
- 12+2+2 Phases Digital VRM: With digital PWM and low RDS(on) MOSFETs on 6-layer PCB for stable overclocking.
- Dual Channel DDR5: 4 SMD DIMMs with AMD EXPO™ & Intel® XMP support, up to 7600MHz and beyond.
- PCIe 5.0 M.2 & PCIe 4.0 x16 Slot: Ultra-fast storage with M.2 Thermal Guard and EZ-Latch quick release.
- Advanced Thermal Design: Fully covered MOSFET heatsinks with 5 W/mk pad and integrated I/O shield.
- Wi-Fi 6E & 2.5GbE LAN: 802.11ax with 6GHz band up to 2.4Gbps and Bluetooth 5 for high-speed connectivity.
- Multi-Display Support: HDMI and DisplayPort for high-resolution outputs.
- Smart Fan 6: 5 PWM/DC headers with up to 24W support, FAN STOP, and dual curve modes for quiet cooling.
- Q-Flash Plus: BIOS updates without CPU, memory, or graphics card.
- RGB Fusion: 3x Addressable LED Headers and 1x RGB LED Header for customization.
- Hi-Fi Audio: 8-Ch HD Audio with Audio Noise Guard and high-end capacitors.
- GIGABYTE Control Center: Unified software for BIOS and system management.
| Specification | Detail |
|---|---|
| Product Code | B650 EAGLE AX (rev. 1.0/1.1) |
| EAN | 4719331320502 |
| Type | ATX Motherboard |
| Chipset | AMD B650 |
| CPU Support | AMD Socket AM5; Supports AMD Ryzen™ 7000 Series and Ryzen™ 8000 Series Processors |
| Memory | Dual Channel DDR5; 4x SMD DIMMs; Supports AMD EXPO™ & Intel® XMP 3.0; Up to 7600 MT/s; Shielded Memory Routing; DDR5 Auto Booster |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (with EZ-Latch); PCIe 5.0 ready |
| Storage | 1 x PCIe 5.0 x4 M.2; 2 x PCIe 4.0 x4 M.2 (1 with Thermal Guard); 4 x SATA 6Gb/s |
| Audio | Realtek® ALC897 codec; 8-Channel HD Audio; High-End Audio Capacitors; Audio Noise Guard |
| LAN/Wi-Fi | GbE LAN with Bandwidth Management; Wi-Fi 6E 802.11ax (up to 2.4Gbps, 6GHz band); Bluetooth 5 |
| Video Outputs | 1 x HDMI port; 1 x DisplayPort |
| USB Ports | Rear: 6 x USB 2.0, 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1 Type-C; Internal: Front USB 3.2 Gen 1, Front USB 3.2 Gen 1 Type-C, Rear USB 10Gb/s |
| RGB Headers | 3 x Addressable LED Headers; 1 x RGB LED Header |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Power Design | 12+2+2 Phases Digital VRM; 8-pin + 4-pin CPU power; UD Solid Pin; 6-Layer PCB |
| BIOS Features | UEFI BIOS with EASY MODE, My Favorites; Q-Flash Plus; AMD EXPO/XMP Profiles; Memory Timing Monitor |
| Cooling Features | Smart Fan 6 with Multiple Sensors, Hybrid Headers (up to 24W), FAN STOP; VRM Thermal Design (Fully Covered Heatsinks, 5 W/mK Pad); M.2 Thermal Guard; Integrated I/O Shield |
| Weight | Approx. 1.1 kg |

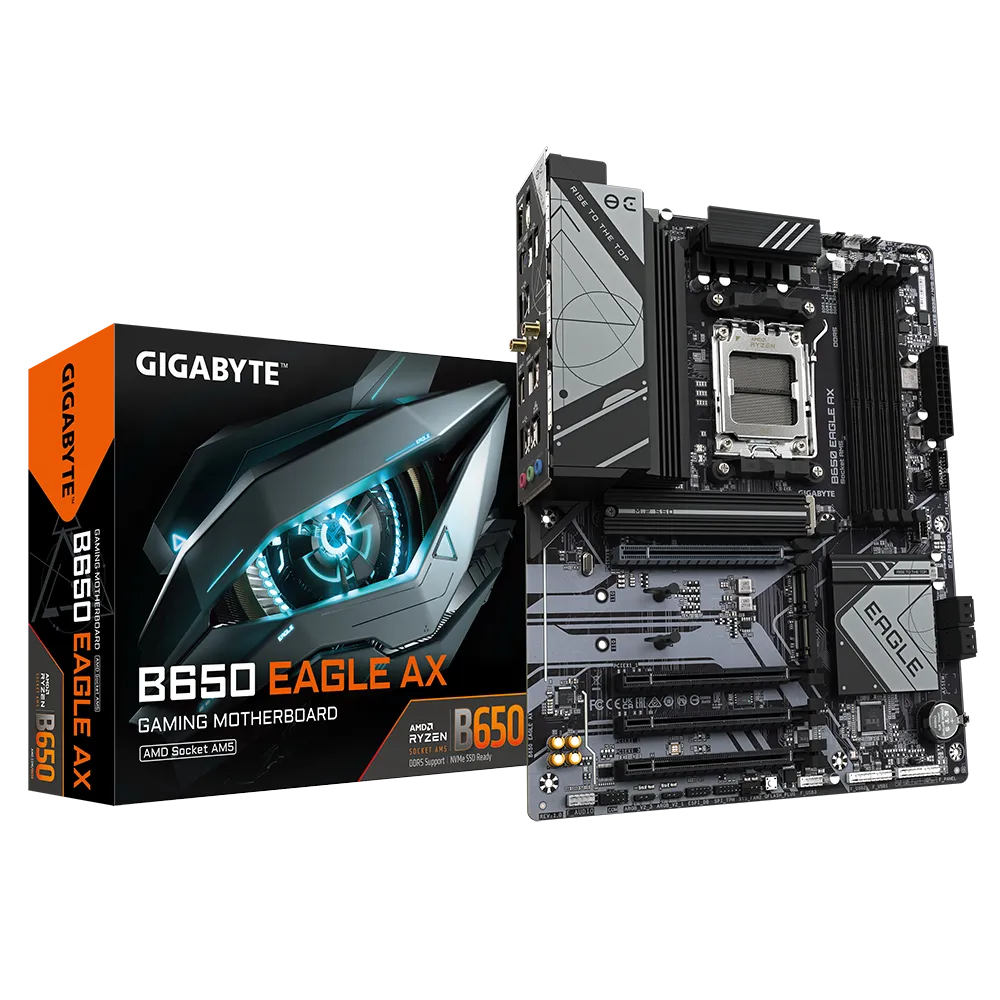

| Package Content | GIGABYTE B650 EAGLE AX Motherboard × 1 Quick Installation Guide × 1 I/O Shield × 1 SATA Cable × 2 Wi-Fi Antenna × 1 M.2 Screws × 3 Rear I/O Cables × 1 |
Why You’ll Love It
The B650 EAGLE AX offers robust AM5 performance with PCIe 5.0 storage, Wi-Fi 6E, and a powerful 12+2+2 VRM for overclocked Ryzen setups, enhanced by EZ-Latch and Q-Flash for effortless builds. Smart Fan 6 and advanced thermal guards maintain low temps, while RGB Fusion brings vibrant customization—perfect for gamers wanting high-speed, reliable connectivity and future-proof features in an accessible ATX package.
