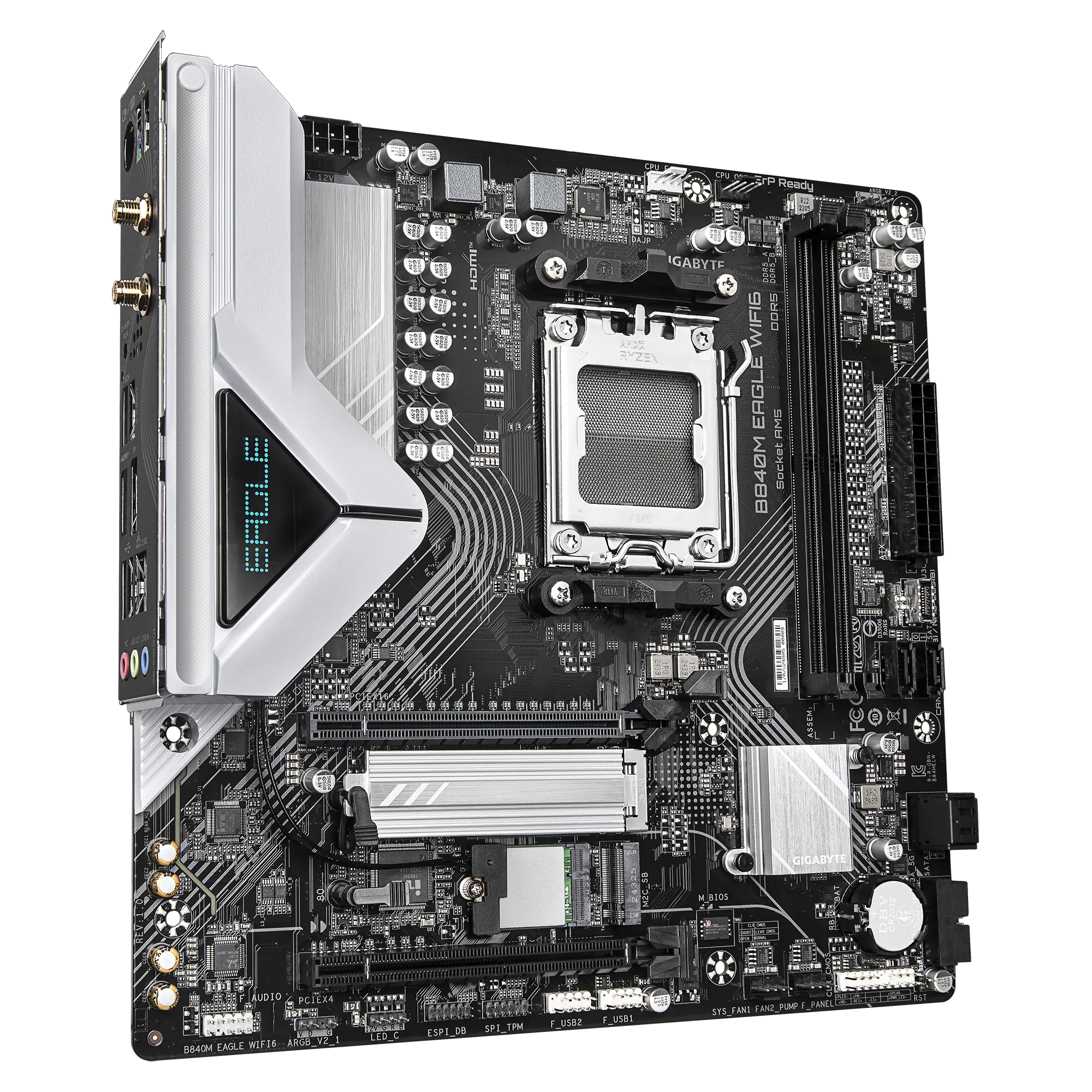

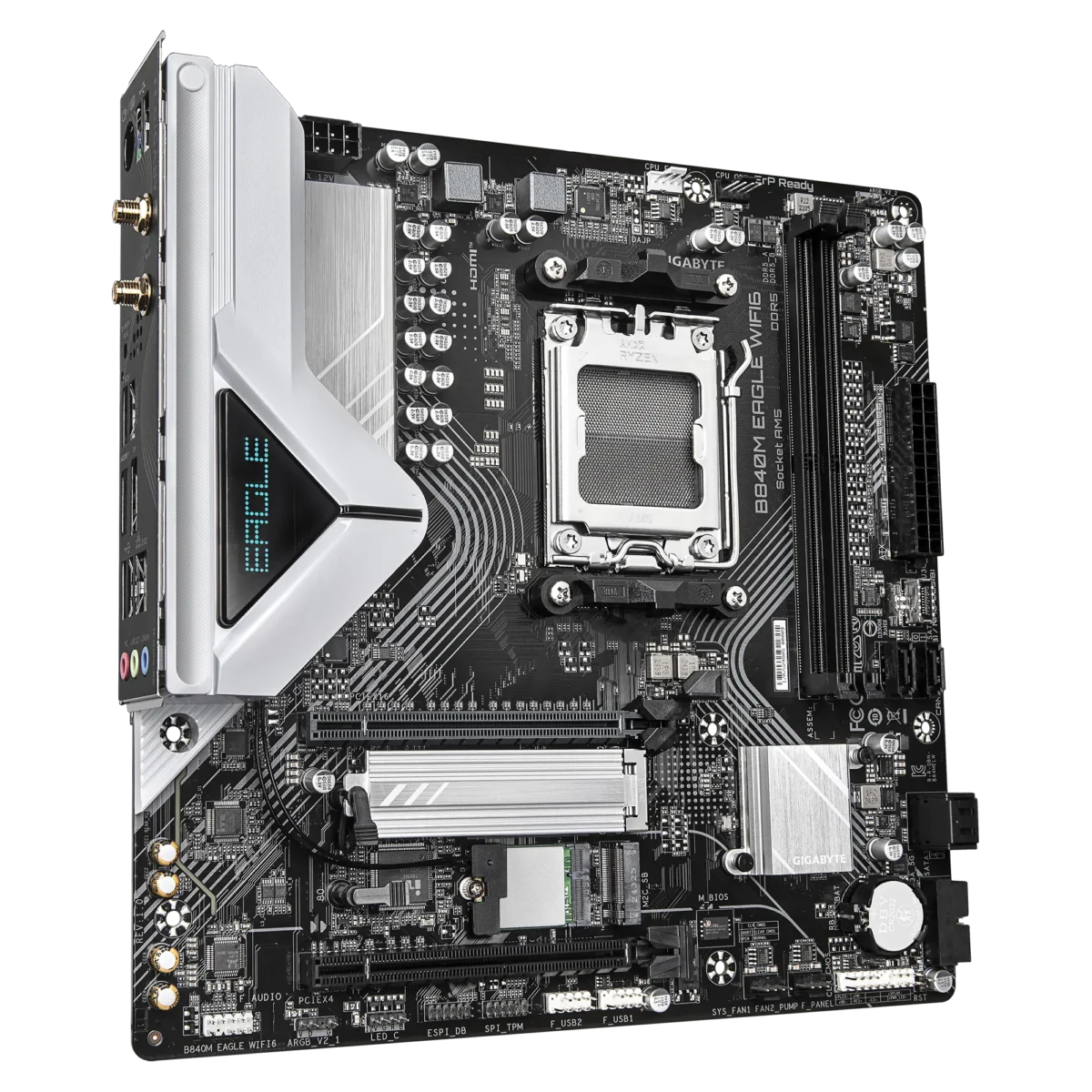

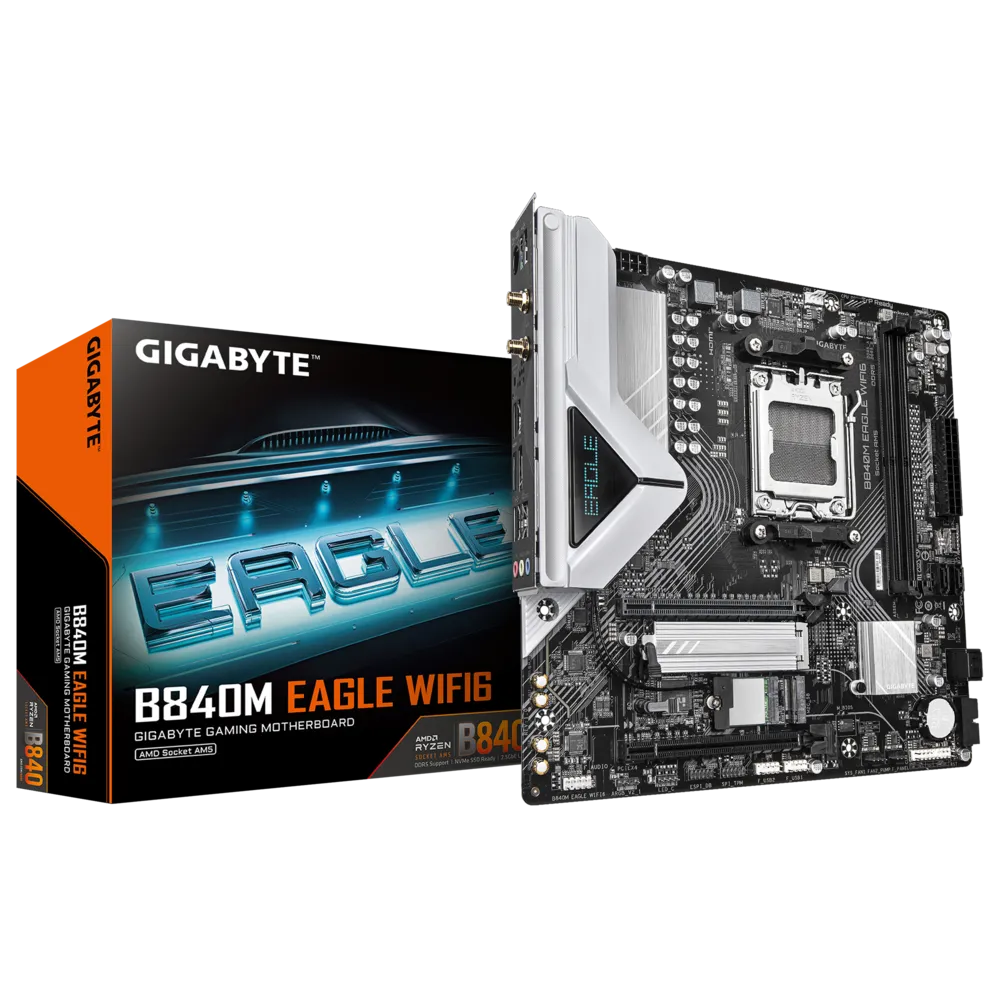

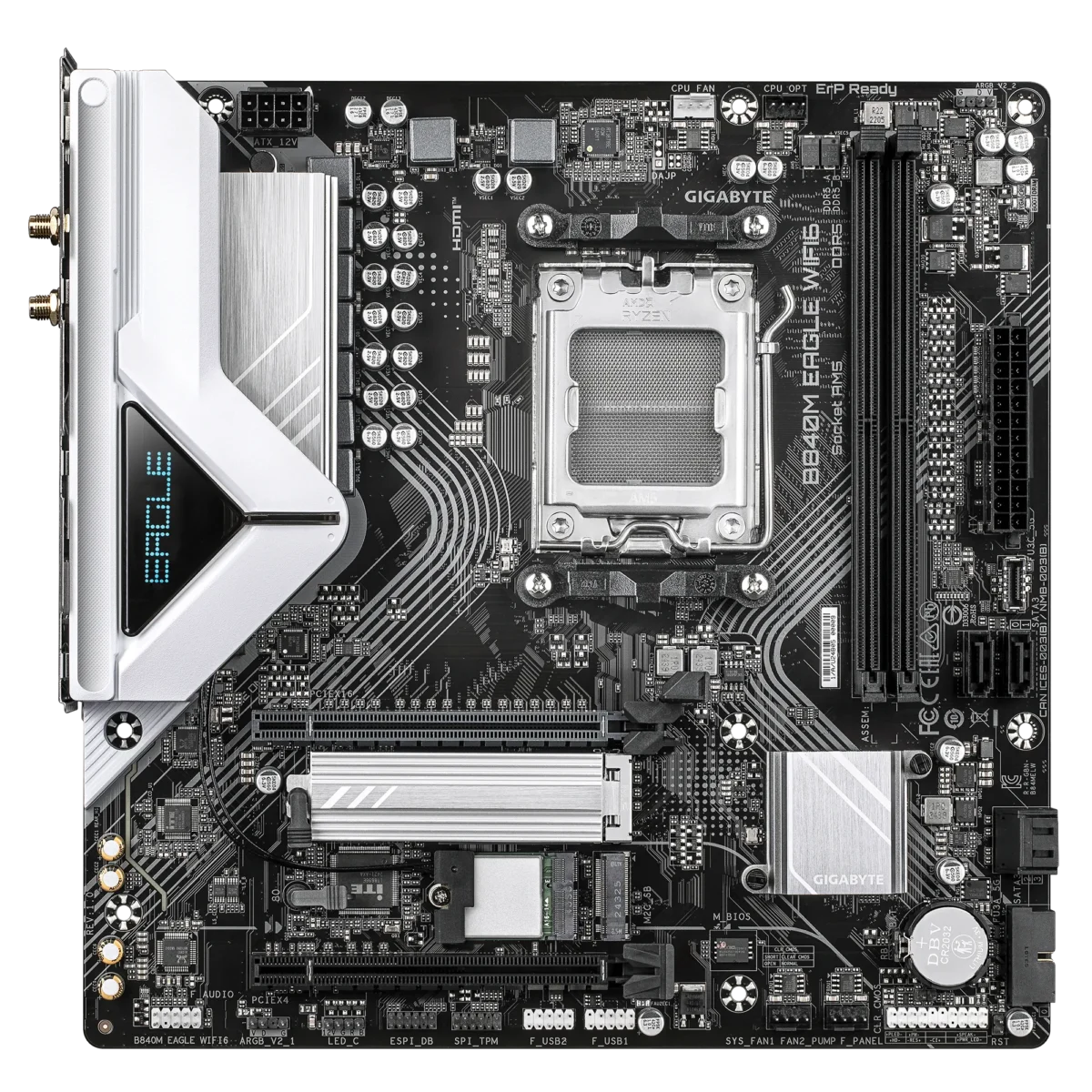

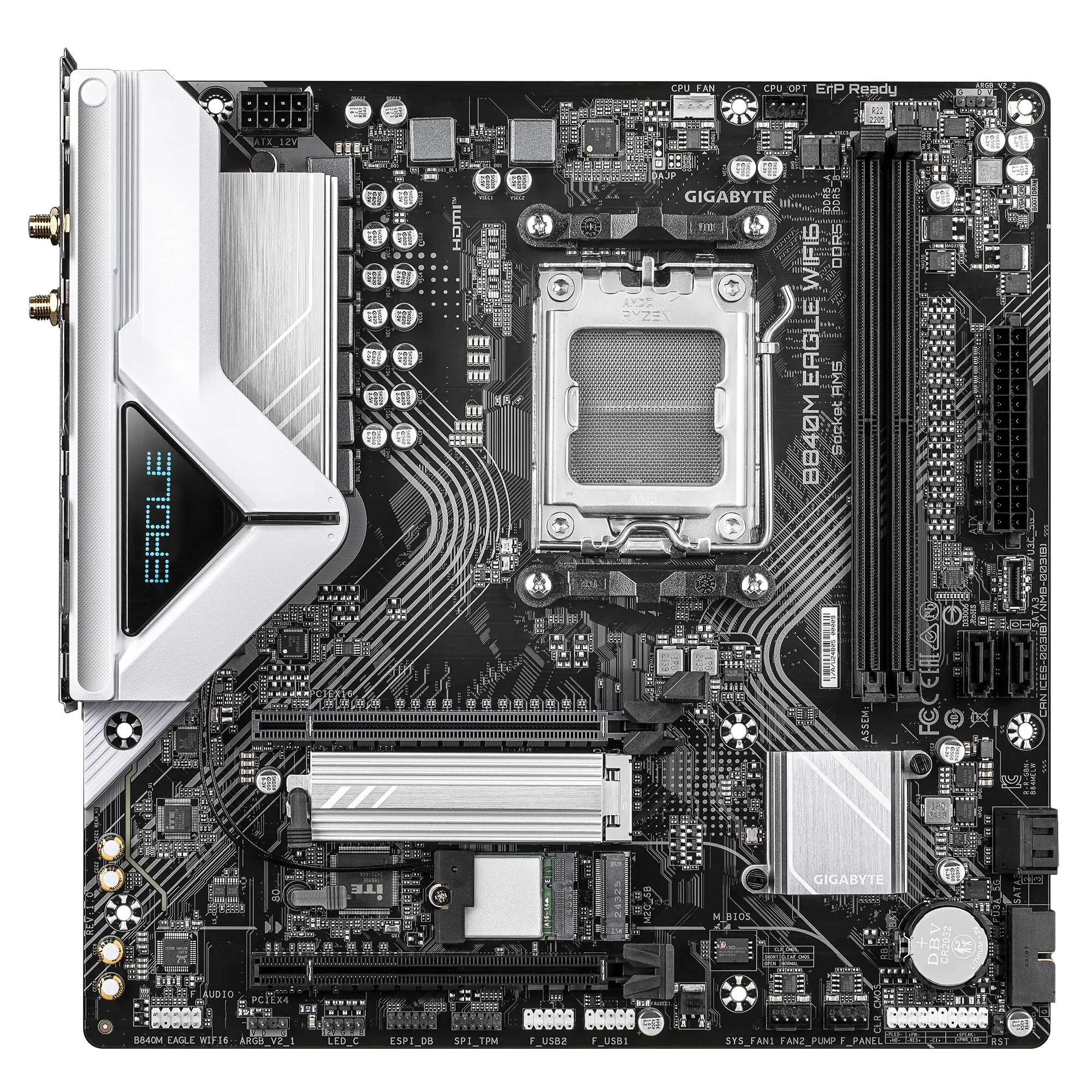

Gigabyte B840M EAGLE WIFI6 AMD B840 Ryzen Socket AM5 Micro-ATX Desktop Motherboard
R2699,00
– Micro-ATX Form Factor
– AMD B840 Chipset
– Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
– 2x DDR5 DIMM Slots, Supports Up to 128GB (2x64GB)
– Supports Up to DDR5-7200 (OC)
– Supports AMD EXPO & Intel XMP 3.0 Modules
– 1x PCIe 4.0 x16 Slot (x16 Physical)
– 1x PCIe 3.0 x4 Slot (x16 Physical)
– 1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
– 1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot
– 4x SATA 3.0 Ports

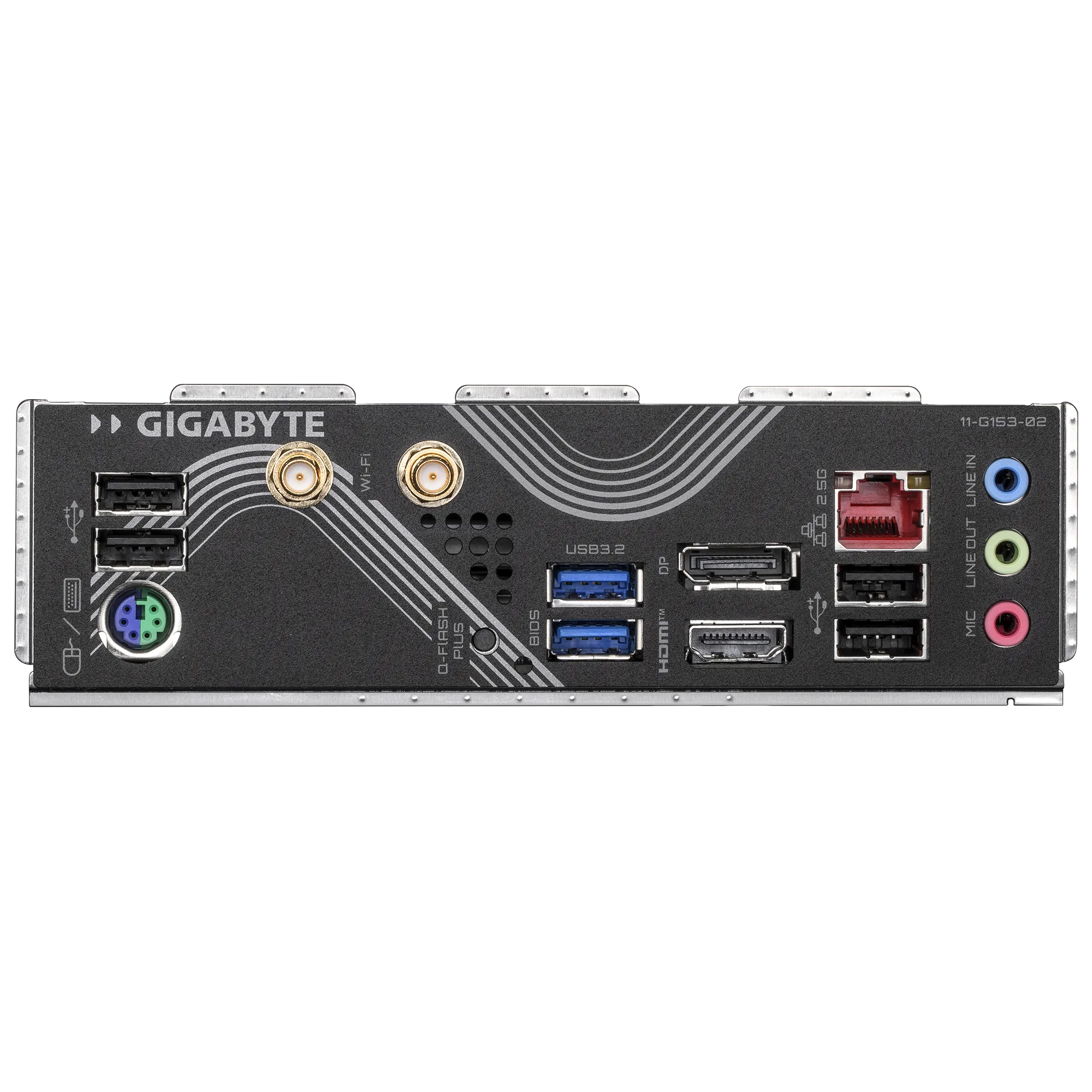

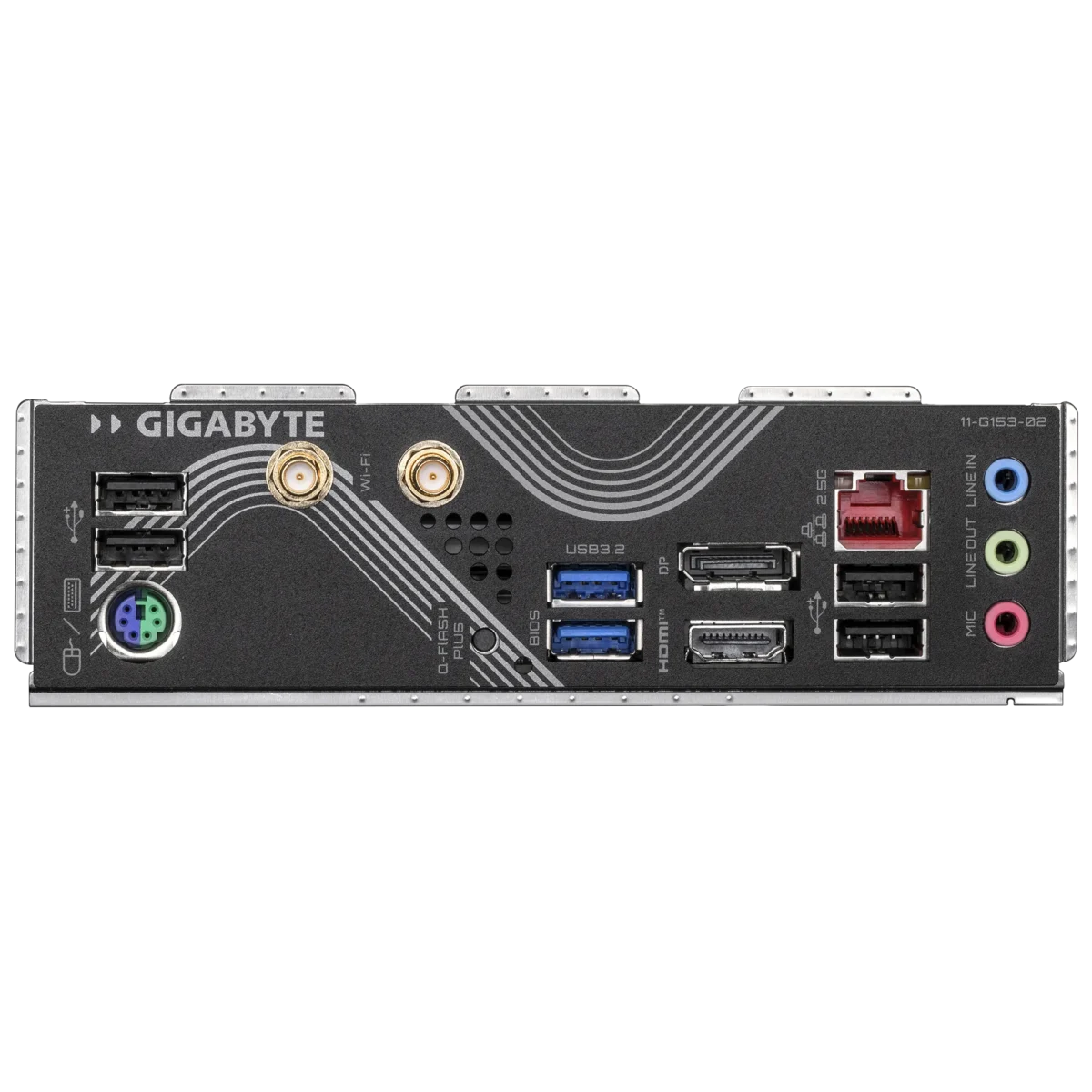

– 2x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x HDMI 2.1 Port (TMDS), 1x DisplayPort 1.4 Port
– 1x PS/2 Combo Port (Keyboard/Mouse)
– 3x 3.5mm Audio Jacks (Headphone, Microphone)
– 2x SMA Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
– Realtek WiFi 6 Dual-Band Adapter, Bluetooth 5.3
– Realtek High-Definition Audio Codec
– PCIe x16 EZ-Latch Mechanism
– Digital 5+2+2 Phase VRM Solution
– Gigabyte Q-Flash Plus Button
– Gigabyte RGB Fusion
– Supports Windows 11
– 3 Year Warranty
GIGABYTE B840M EAGLE WIFI6
The B840M EAGLE WIFI6 is a budget‑friendly yet feature‑rich micro‑ATX motherboard built for AMD’s AM5 platform. With support for the latest Ryzen 7000/8000/9000 series, integrated WiFi 6 and 2.5 Gb LAN, and a compact form factor, it’s perfect for small builds, home offices or gaming rigs with limited space.
Key Features
- AM5 Socket & B840 Chipset: Supports AMD Ryzen 7000/8000/9000 Series processors out of the box.
- High Speed Memory Support: DDR5 memory, up to high clock speeds (7200 MHz+ OC).
- Connectivity: Built‑in WiFi 6 and Bluetooth 5.3, and 2.5 Gb Ethernet for modern networking needs.
- Storage & Expandability: Dual M.2 slots plus SATA ports give you fast NVMe support and ample storage options.
- Compact micro‑ATX Design: Measures 24.4 × 24.4 cm — fits in many standard and small form cases without compromising build flexibility.
| Form Factor | micro‑ATX (≈ 24.4 × 24.4 cm) |
|---|---|
| Chipset | AMD B840 |
| CPU Socket | AM5 – Supports Ryzen 7000/8000/9000 Series |
| Memory | DDR5 – up to 128 GB supported; speeds up to approx. 7200 MHz (OC) |
| Storage Interfaces | 2× M.2 slots + multiple SATA 6Gb/s ports |
| Networking | 2.5 Gb LAN + WiFi 6 (802.11ax) + Bluetooth 5.3 |
| Expansion Slot | 1× PCIe x16 (for GPU/graphics) |
| Audio | HD Audio (Realtek codec) 7.1‑channel output support |
Why Choose This Board?
If you’re building a compact yet high‑capability PC—whether for gaming, home productivity or content work—the B840M EAGLE WIFI6 offers an excellent balance of performance, connectivity and future‑proofing without breaking the bank. Its AM5 support means you can upgrade your Ryzen CPU later, and with dual M.2 and modern networking features built‑in, the platform is ready for now and tomorrow.
