GIGABYTE AMD B850 Gaming Chipset for AMD AM5; 4x Dual DDR5; 3x M2; 1x HDMI 1x DP. .
R4899,00
A GIGABYTE B850 AM5 motherboard with Wi-Fi 7, 2.5GbE LAN, four DDR5 slots and three M.2 slots.
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
FEATURES
X3D Turbo Mode : Unleash new era gaming performance DDR5 OC up to 8200MT/s AMD Socket AM5:Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Channel DDR5:4xDIMMs with AMD EXPO Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click:M.2 heatsinks with screwless design Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage:3xM.2 slots, including PCIe 5.0 x4 Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity:HDMI,Displayport PCIe UD Slot :PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
SPECIFICATIONS
CPU AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Chipset AMD B850
Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor with AMD Radeon Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz x Support for DisplayPort 1.4 version and HDR. – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz x Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.)
Audio Realtek Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel x You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Realtek ALC1220 CODEC (Only for rev. 1.1) x The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel x You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) x Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) xx Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode x The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX11, PCIEX12)
Storage Interface 1 x M.2 connector (M2ACPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2BCPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices x RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI portx 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper x Actual support may vary by CPU.

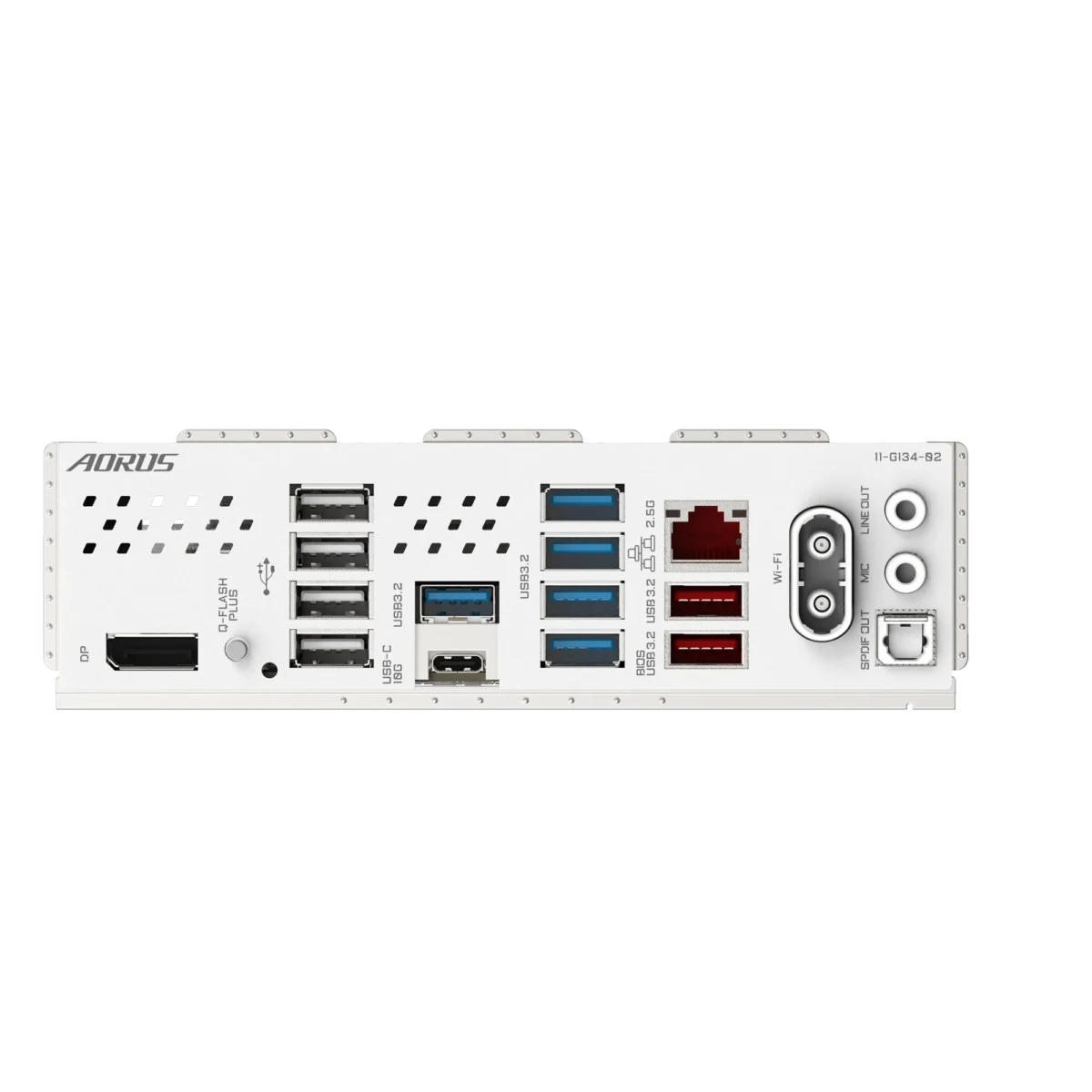

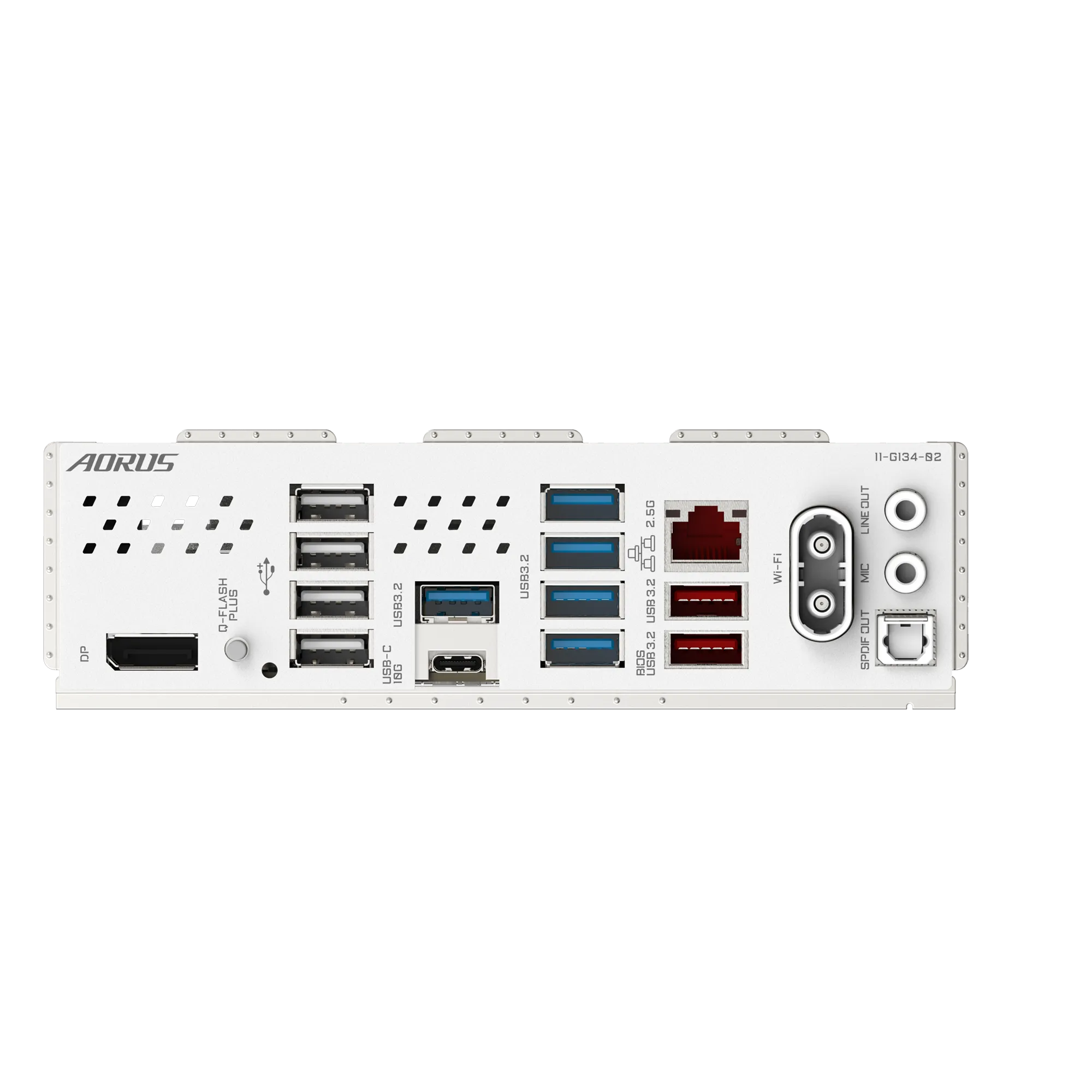

Back Panel Connectors 1 x DisplayPortx 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector x Actual support may vary by CPU.
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control x Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) x Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm

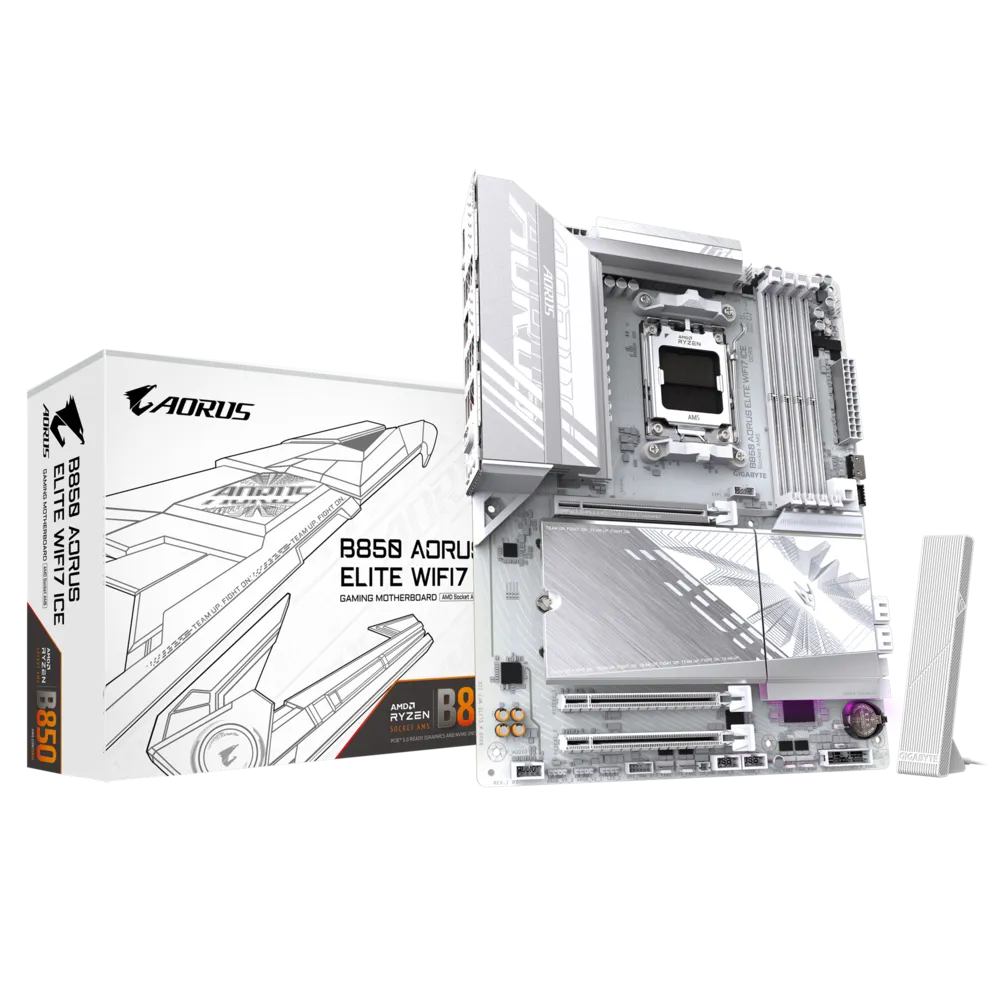

What’s in the box 1 × GIGABYTE B850 AORUS ELITE WIFI7 motherboard with a pre-installed I/O shield 1 × Magnetic dual-connector Wi-Fi 7 antenna (EZ Plug) to snap right into the motherboard’s ports 1 × SATA III data cable 1 × G-Connector (for front-panel I/O header wiring ease) 1 × AORUS metal case badge for adding some flair to your build 1 x Quick Installation Guide & regulatory leaflets (one-page install guide plus documentation) 1 x M.2 accessory pack (rubber pad and screws/standoffs for NVMe SSD mounting)
