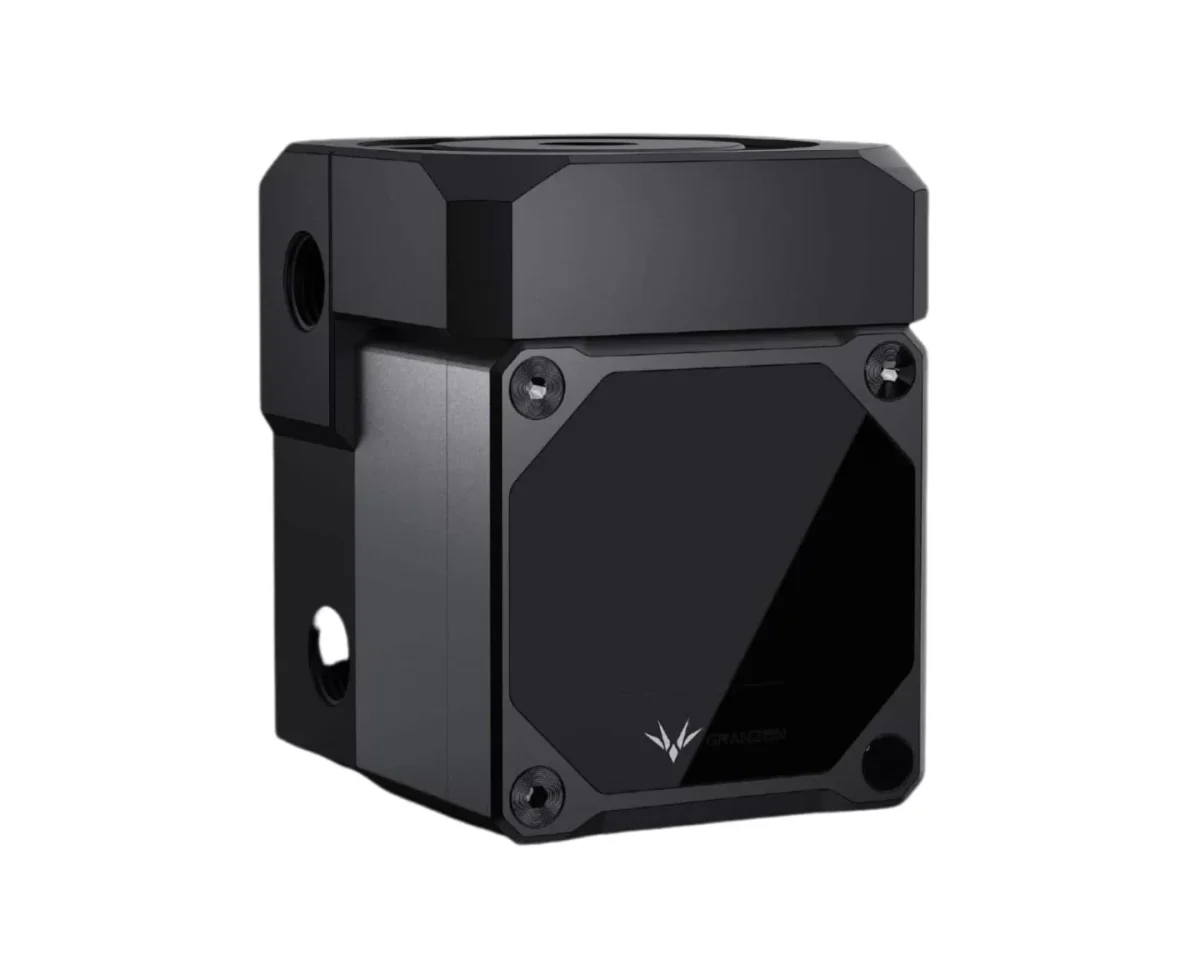

Granzon PWM DDC Style Pump w/ Digital Display – Reservoir Ready (GFMB)

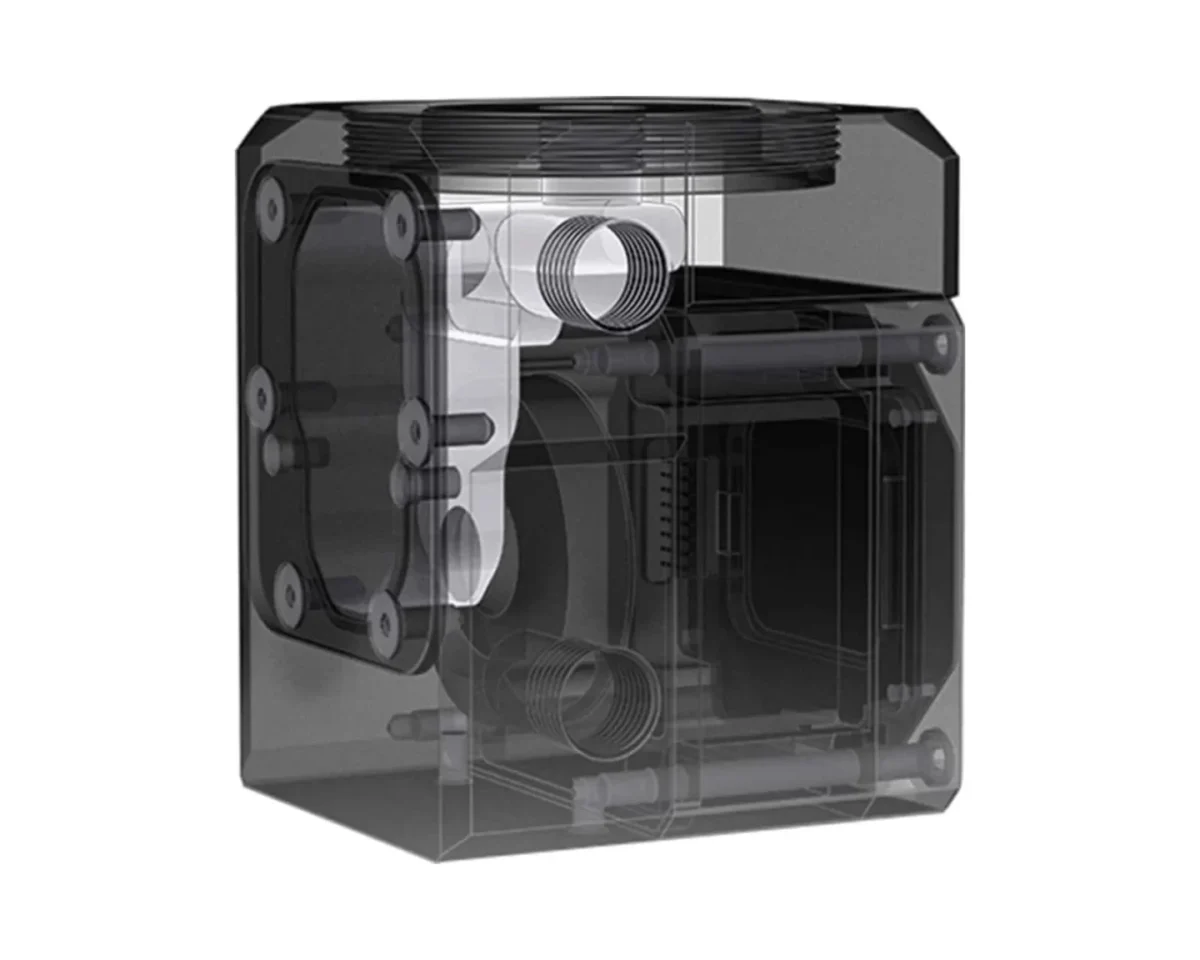

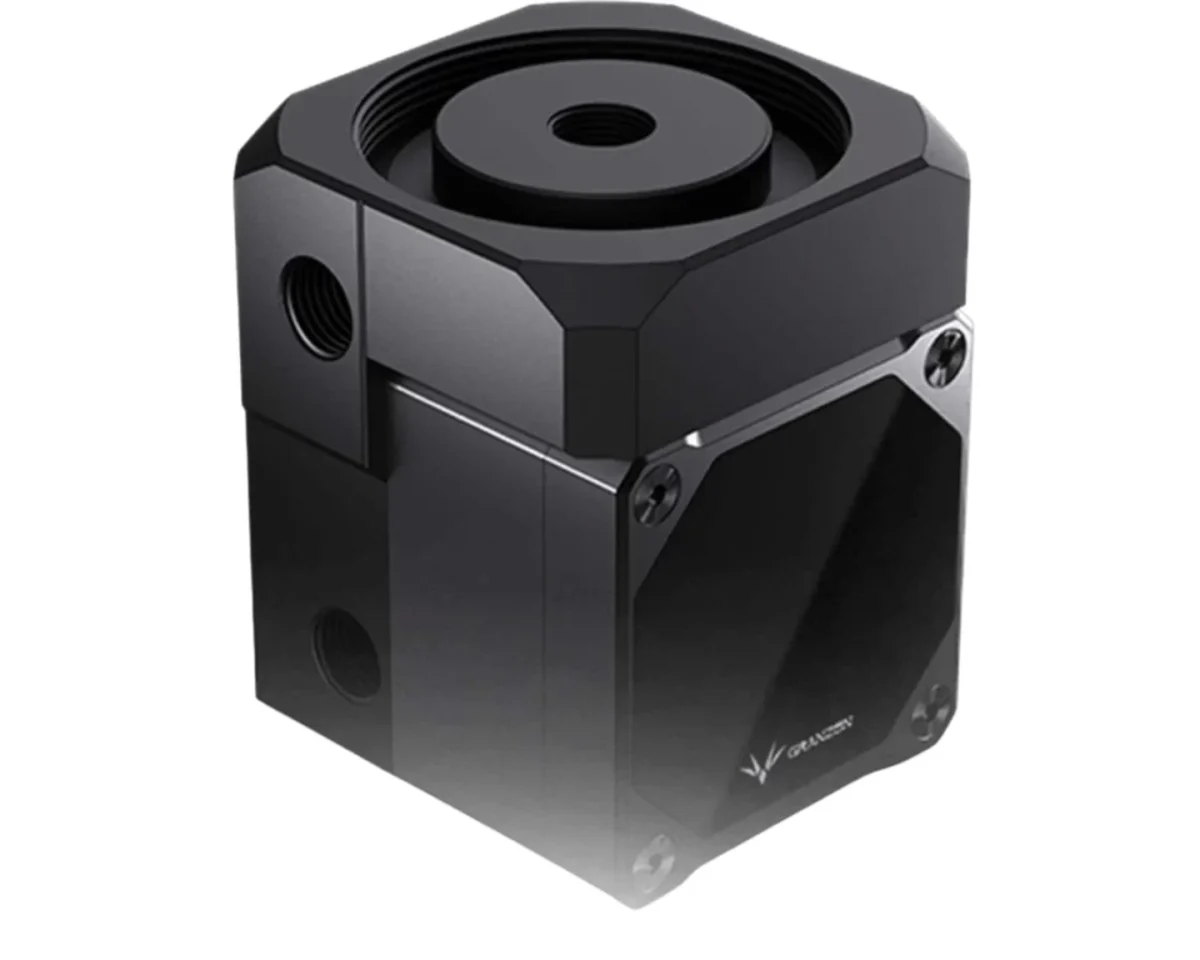

The Granzon PWM DDC Style Pump with Digital Display is a DDC-style pump that has multiple digital display readouts. Highlighting the display readouts is a tachometer design, a real-time display of pump speed. Speed control can be set manually in increments of 100. Automatic mode is also available when using your motherboard’s PWM header. Flow rates, voltage and load are displayed as well for a complete overview of your pump’s performance. Keep in mind the flow rate is based on the pump speed. This means the lower your loop resistance the more accurate the reading will be. For most applications, it will be a very accurate simulation. The pump is ready to use with a POM body encasing the pump. The top is threaded for instant reservoir adaptation.

Specifications

• Material: POM / Aluminum (not in contact with coolant)
• Pump Core: CP-D3PB-X
• RPM: 1800-4800
• Power: DC12v
• Flow Rate: 700L/h
• Head: 6M
• Connector: 4-Pin Molex and PWM+ data feedback

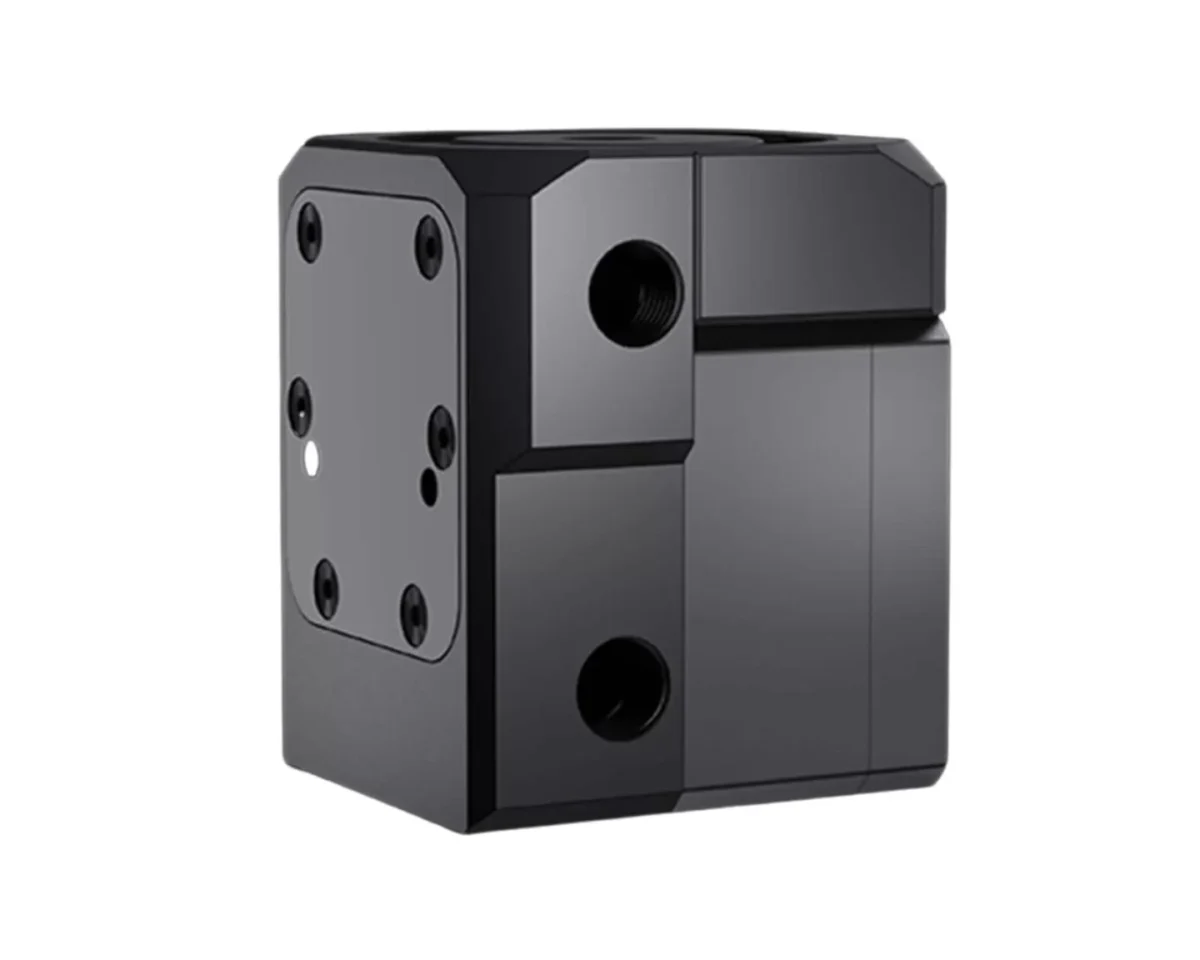

• Inlets: 2
• Outlets: 1

Compatibility

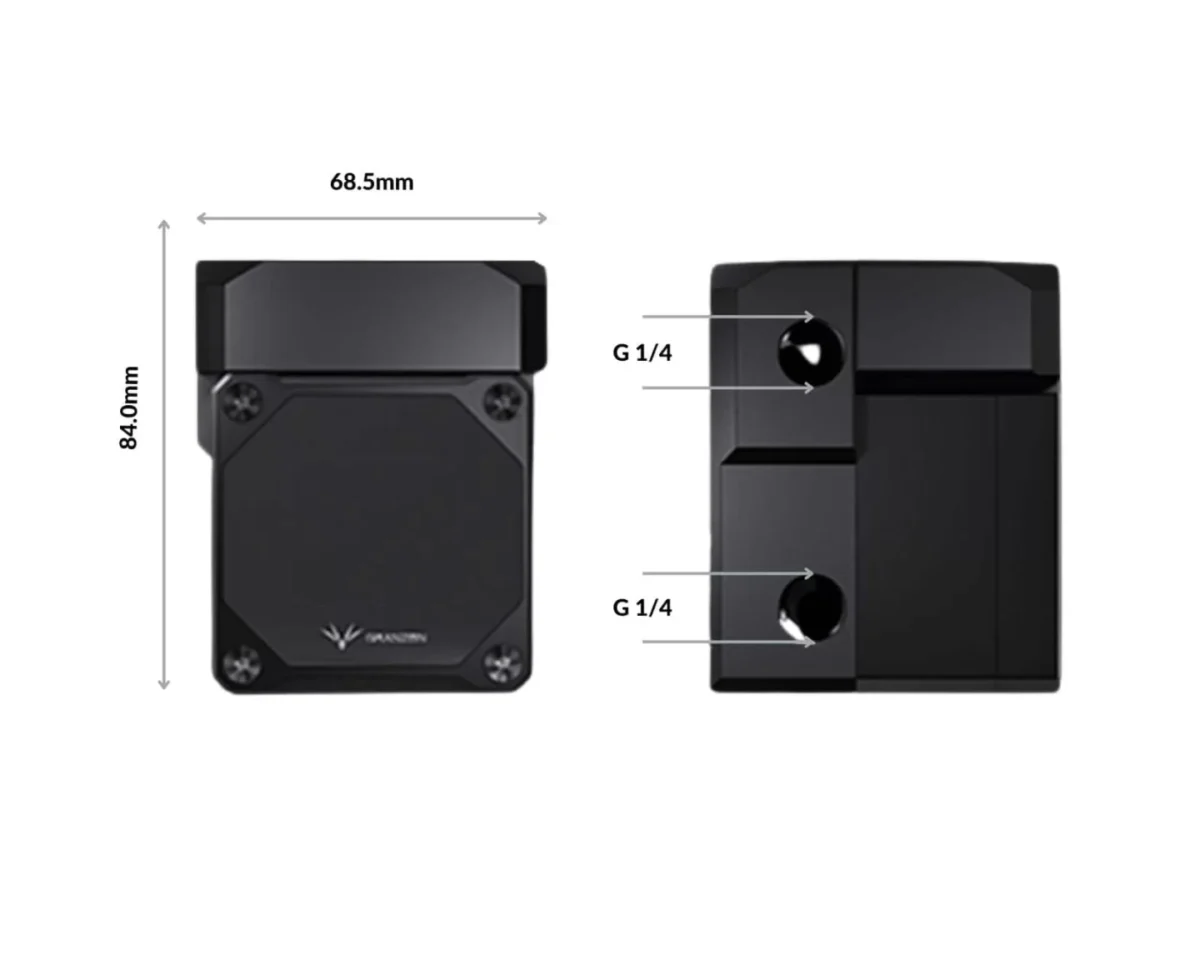

• Fitting: G 1/4in. Thread

Included Parts

• 4x Mount Screws
• 1x DDC Pump w/ housing
• Reservoir top/tube NOT included

Warnings

Not responsible for any hardware damage. Use at your own risk.

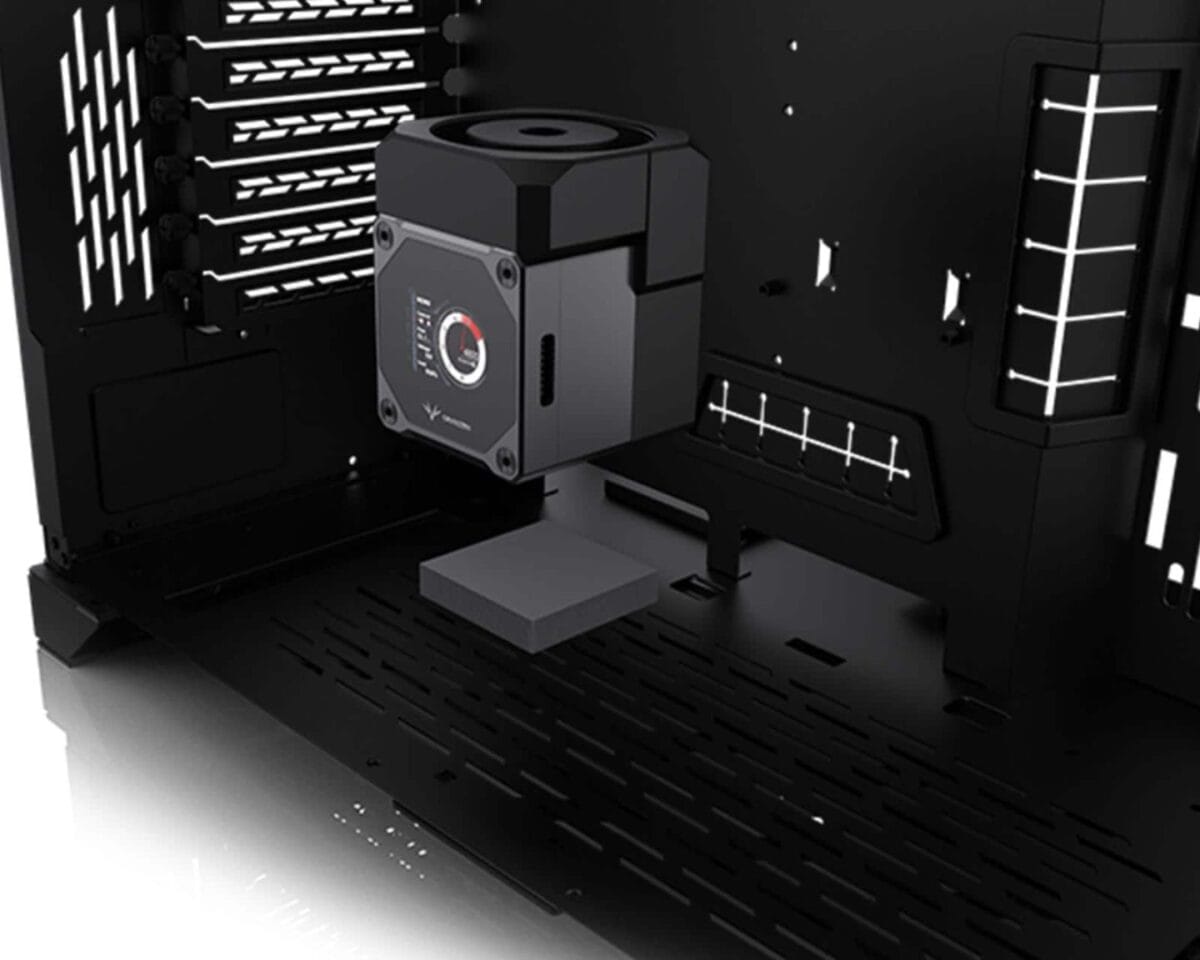

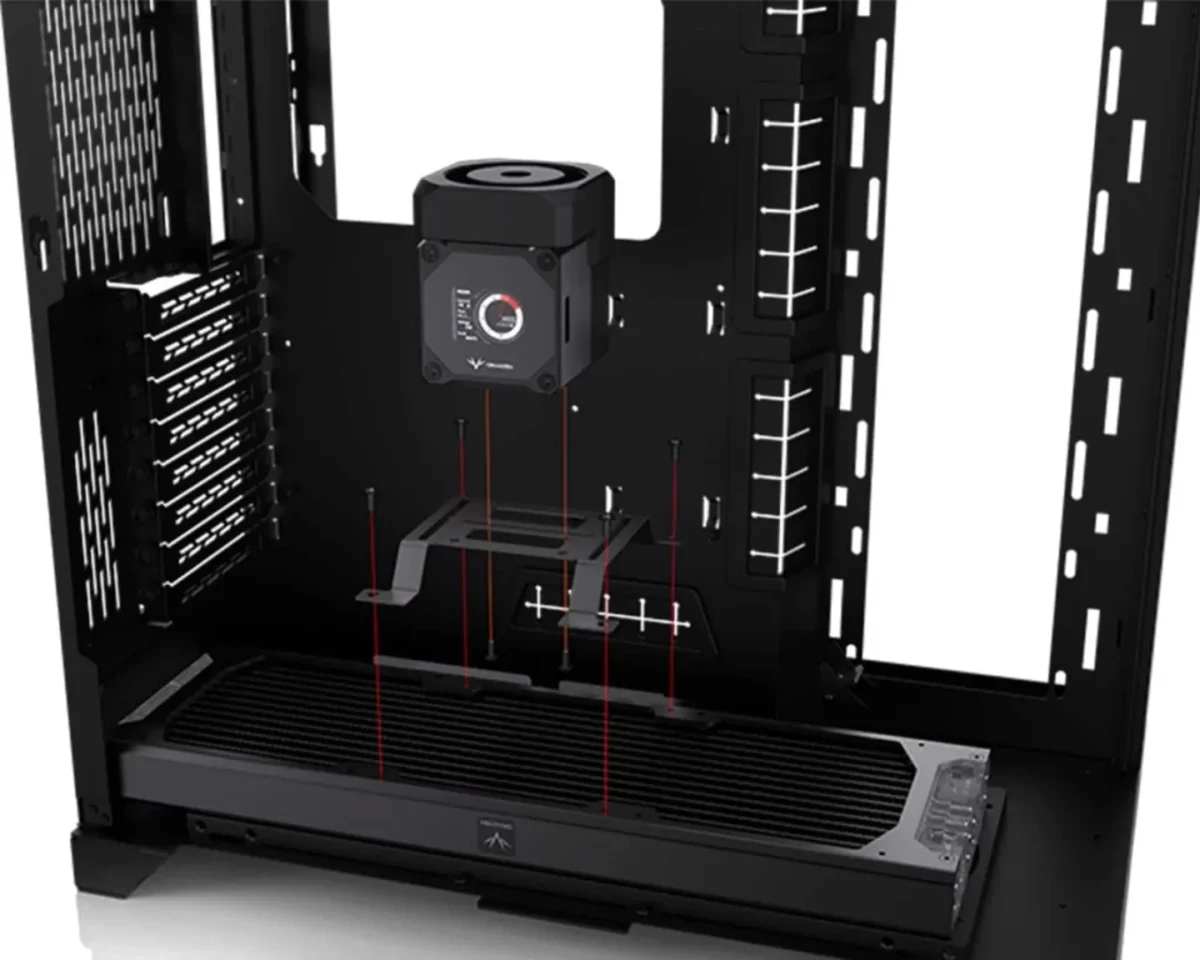

CAN BE PURCHASED WITH RESERVOIR (CT-F60-AL-V2-60/CT-F60-AL-V2-100/CT-F60-AL-V2-150/CT-F60-AL-V2-200 TO CREAT PUMP/RESERVOIR COMBO AS SEEN BELOW
