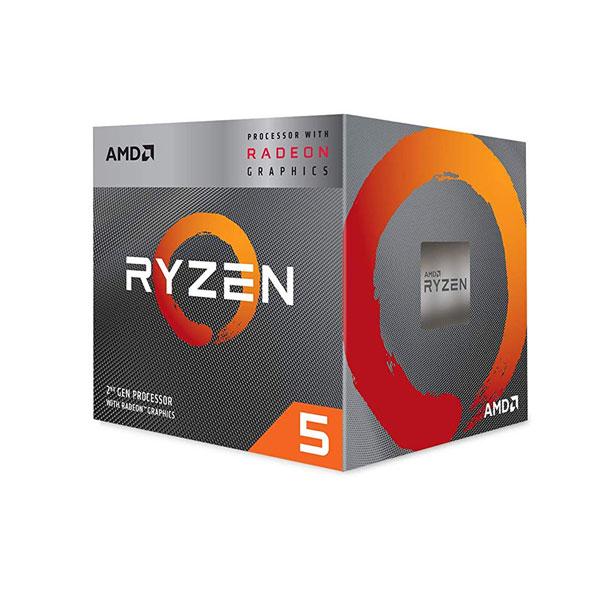

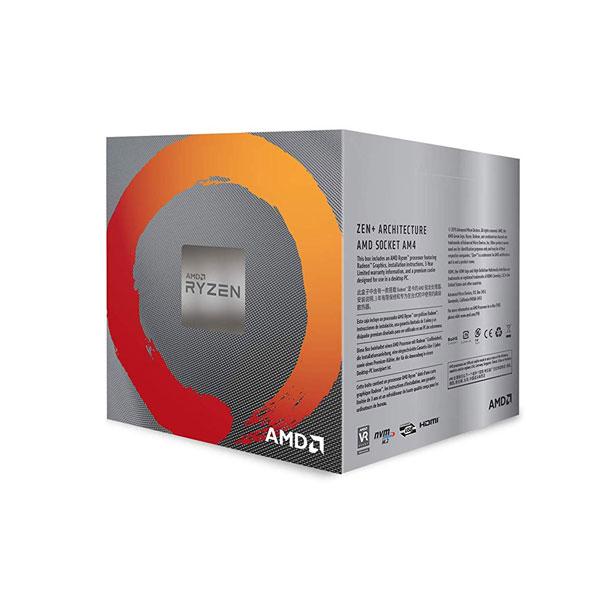

AMD RYZEN 5 3400G 4-CORE 6MB AM4 APU RADEON graphics

Short Description

The AMD Ryzen 5 3400G is a powerful all-in-one desktop processor with integrated Radeon RX Vega 11 graphics, ideal for gaming and everyday performance without a dedicated GPU. With 4 cores, 8 threads, and boost speeds up to 4.2GHz, it delivers smooth multitasking and responsive computing. Perfect for budget gaming builds and compact systems.

Features

• Integrated Radeon RX Vega 11 graphics for gaming without a dedicated GPU
• 4 cores and 8 threads for smooth multitasking and everyday performance
• Boost clock up to 4.2GHz for responsive system performance
• Unlocked for overclocking to maximise performance potential
• AMD Precision Boost 2 for dynamic performance optimisation
• Supports up to 3 displays with multi-monitor capability
• AMD FreeSync support for smoother, tear-free visuals
• Includes AMD Wraith Spire cooler for reliable thermal performance
• Compatible with a wide range of AM4 motherboards

Specifications

Processor Performance

• CPU Cores: 4
• Threads: 8
• Base Clock: 3.7 GHz
• Max Boost Clock: Up to 4.2 GHz
• Architecture: Zen+
• Manufacturing Process: 12nm FinFET
• Unlocked for Overclocking: Yes

Cache

• L1 Cache: 384 KB
• L2 Cache: 2 MB
• L3 Cache: 4 MB

Power & Thermal

• Default TDP: 65W
• Configurable TDP: 45–65W
• Max Operating Temperature: 95°C
• Included Cooler: AMD Wraith Spire

Platform & Compatibility

• Socket: AM4
• Supported Chipsets: X570, X470, X370, B450, B350, A320
• PCIe Version: PCIe 3.0
• PCIe Lanes: 20 (16 usable)
• Instruction Set: x86-64

Memory Support

• Memory Type: DDR4
• Memory Channels: Dual-channel
• Max Memory Capacity: 64GB
• Max Memory Speed:
  • DDR4-2933 (2x1R)
  • DDR4-2667 (2x2R)
  • DDR4-2133 (4x1R)
  • DDR4-1866 (4x2R)
• ECC Support: Yes (motherboard dependent)

Integrated Graphics

• Graphics Model: Radeon RX Vega 11
• Graphics Cores: 11
• Stream Processors: 704
• Graphics Frequency: 1400 MHz
• Max GPU Memory: 2 GB
• DirectX Support: 12
• OpenGL: 4.6
• OpenCL: 2.2

Display & Connectivity

• HDMI Version: 2.0
• DisplayPort Version: 1.4a
• USB-C DisplayPort Alternate Mode: Yes
• Multi-Monitor Support: Yes (Up to 3 displays)
• Adaptive Sync Support: Yes
• Max Resolution Support:
  • 4K (3840×2160) @ 60Hz
  • 3440×1440 @ up to 144Hz
  • 2560×1440 @ up to 180Hz
  • 1080p @ up to 240Hz

Protection Features

• AMD Enhanced Virus Protection (NX Bit)

What’s in the Box

• AMD Ryzen 5 3400G Processor

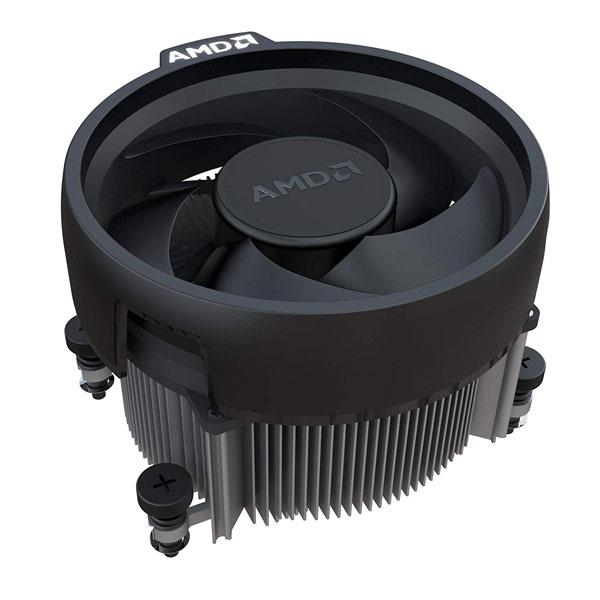

• AMD Wraith Spire CPU Cooler

Packaging Details

• Product ID (Boxed): YD3400C5FHSBX
• Product ID (Tray): YD3400C5M4MFH
