ASUS ROG CROSSHAIR X870E HERO AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard
R15899,00
– ATX Form Factor
– AMD X870E Chipset
– Socket AM5
– AMD Ryzen 9000 & 8000 & 7000 Series CPUs Supported
– 4x DDR5 DIMM Slots, Supports Up to 192GB
– Supports up to DDR5-8600MHz+(OC)
– 2x PCIe 5.0 x16 slots (supports x16 mode)
– 1x PCIe 4.0 x16 slot (supports x4 mode)
– 1x Slim SAS Connector
– 5x M.2 Slots and 4x SATA 6Gb/s Ports
– 2x USB 4 (40Gbps) Type-C Ports
– 8x USB 10Gbps Type-A Ports, 1x USB 10Gbps Type-C Ports
– 1x HDMI Port, 1 x Wi-Fi Module
– Dual Ethernet: 1x Realtek 5Gb Port, 1x Intel 2.5Gb Port
– 1x Optical S/PDIF out port, 1x BIOS FlashBack Button
– 1x Clear CMOS Button
– 802.11be 2×2 Tri-Band WiFi 7
– Bluetooth v5.4
– 18+2+2 Power Stages
– Dual ProCool II Power Connectors
– Polymo Lighting II
– Dynamic OC Switcher
– Aura Sync
– 3 Year Warranty
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.

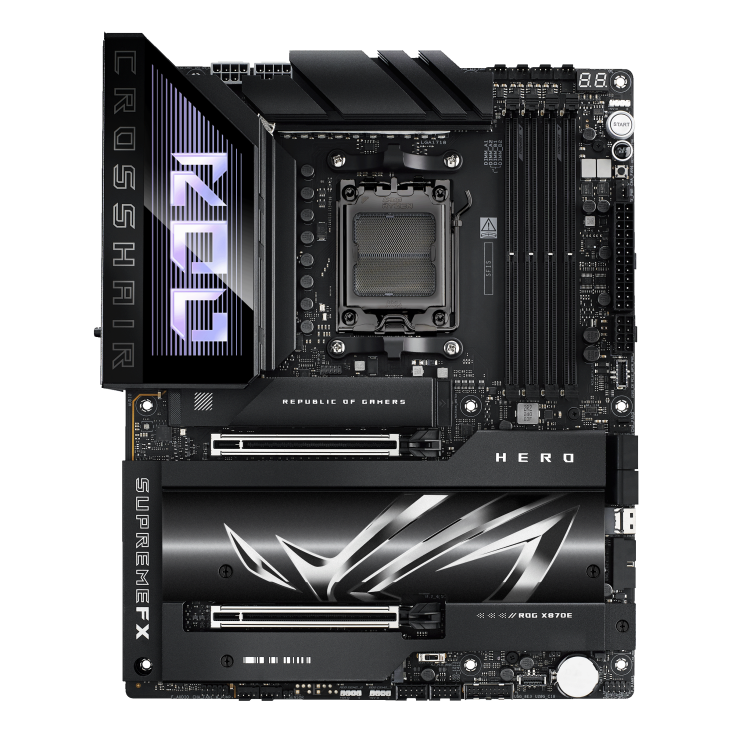

ASUS ROG Crosshair X870E Hero – AM5 ATX Motherboard
The Crosshair X870E Hero is a flagship AM5 board built for Ryzen™ 9000/8000/7000, pairing an 18 + 2 + 2 power stage design (up to 110 A) with comprehensive PCIe® 5.0 for GPUs and NVMe, five M.2 (3× PCIe 5.0 x4 + 2× PCIe 4.0 x4), dual USB4® 40 Gbps on the rear I/O, integrated Wi-Fi 7, and dual LAN—Realtek 5 GbE + Intel 2.5 GbE. SupremeFX ALC4082 audio with an ESS® ES9219 quad DAC, plus ROG’s Polymo Lighting II, round out a board aimed at extreme gaming and creator rigs.
Key Features
- 18 (110 A) + 2 (110 A) + 2 (80 A) power stages with dual ProCool II EPS connectors and massive VRM heatsinks for stable boosts on high-core Ryzen CPUs.
- Gen-5 where it matters: 2× PCIe 5.0 x16 slots for next-gen GPUs and 3× onboard PCIe 5.0 x4 M.2 (plus 2× PCIe 4.0 x4). Heatsinks and backplates on the M.2 keep thermals in check.
- Dual USB4® (40 Gbps) Type-C: Rear I/O includes two USB4 ports with display support, ideal for fast external drives and single-cable monitors.
- Networking for power users: Onboard Wi-Fi 7, Realtek 5 GbE and Intel 2.5 GbE give you flexible, high-speed links for gaming and NAS workflows.
- ROG SupremeFX audio: ALC4082 codec with ESS ES9219 quad DAC, 120 dB SNR playback / 110 dB recording, gold-plated jacks, and Dolby Atmos®.
- Creator-friendly I/O: Rear I/O stacks 8× USB 10 Gbps (6×A + 2×C) alongside the USB4 ports; front header adds USB-C 20 Gbps with QC4+ support.
- DIY & reliability: PCIe Slot Q-Release, M.2 backplates & Q-Latch, BIOS FlashBack™, Clear CMOS, Q-LED diagnostics, and Polymo Lighting II on the I/O shroud.
| Specification | Detail |
|---|---|
| CPU Support | AMD AM5 — Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870E |
| Memory | 4× DDR5 DIMM, dual-channel, up to 256 GB; NitroPath DRAM tech & AEMP tuning |
| Expansion Slots | 2× PCIe 5.0 x16 (SafeSlot) |
| Storage | 5× M.2 total — 3× PCIe 5.0 x4 (2280) + 2× PCIe 4.0 x4 (2280); 4× SATA 6 Gb/s; 1× SlimSAS (PCIe 4.0 x4 mode) |
| Rear USB | 2× USB4 (40 Gbps) Type-C · 8× USB 10 Gbps (6× Type-A + 2× Type-C) |
| Front USB | USB-C 20 Gbps header with Quick Charge 4+ support |
| Display I/O | HDMI® on rear; USB4 Type-C with DP Alt-Mode display out |
| Networking | Wi-Fi 7 (2×2) + Bluetooth, Realtek 5 GbE + Intel 2.5 GbE |
| Audio | ROG SupremeFX ALC4082, ESS® ES9219 quad DAC, optical S/PDIF, gold-plated jacks |
| Headers & Cooling | Multiple 4-pin PWM/DC fan headers, AIO_PUMP/W_PUMP+, thermal sensors; M.2 heatsinks & backplates |
| Form Factor | ATX |
Why You’ll Love It
If you want a no-compromise AM5 platform, the Crosshair X870E Hero delivers: dual USB4 for pro-grade external workflows, five M.2 with three Gen-5 slots for blistering scratch and project drives, Wi-Fi 7 plus 5 GbE/2.5 GbE for low-latency gaming and NAS access, and heavyweight power delivery to keep top-end Ryzen chips boosting hard—wrapped in ROG’s refined build experience.
