Gigabyte B650-AORUS-ELITE-AX-V2 B650 AORUS ELITE AX V2 AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard
R5199,00
– ATX Form Factor
– AMD B650 Chipset
– Socket AM5 Supports Ryzen 7000 & 8000 Series Processors
– 4x DDR5 DIMM Slots, Supports Up to 192GB
– Supports Up to DDR5-8000 (OC)
– Supports AMD EXPO & Intel XMP 3.0
– 1x PCIe 4.0 x16 Slot (x16 Physical)
– 2x PCIe 3.0 x1 Slots (x16 Physical)
– 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 25110 / 2580 PCIe 4.0 x4 NVMe SSD Slot
– 1x M.2 25110 / 2580 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– Supports Front-Panel USB Type-C Port

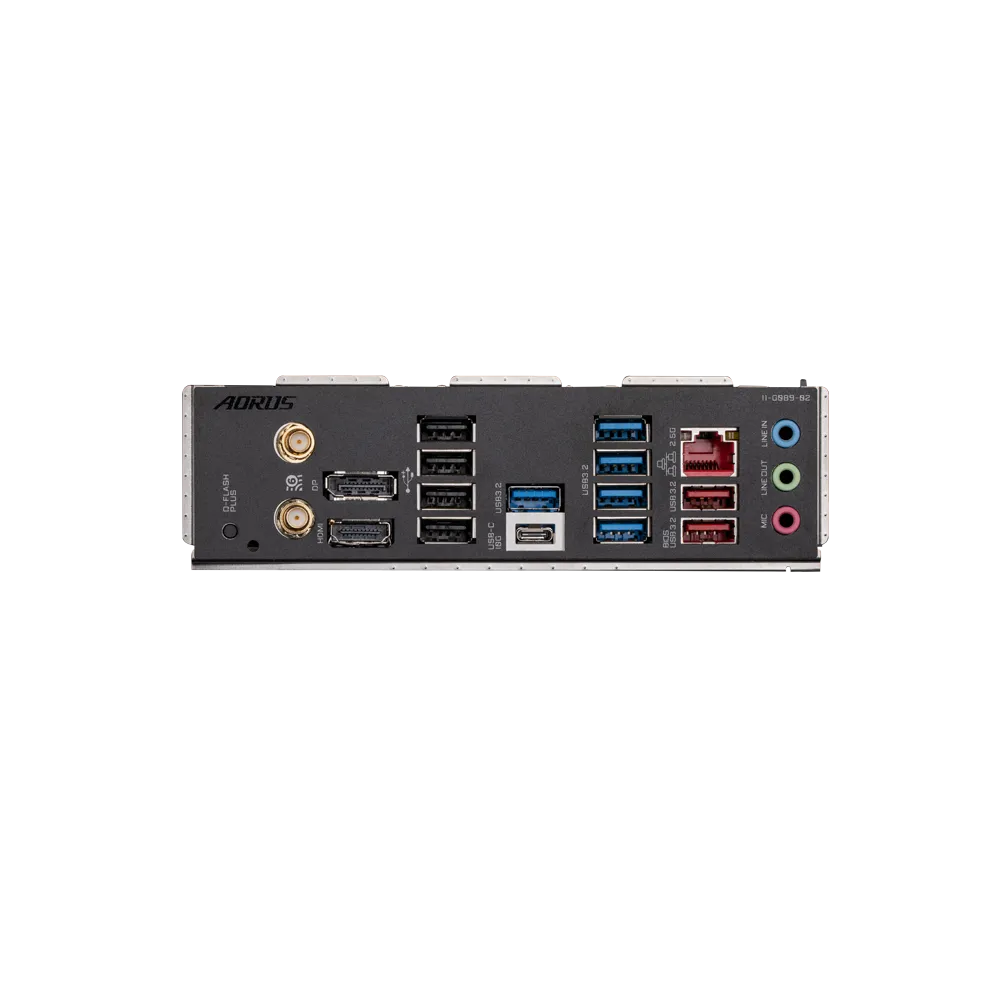

– 1x USB 10Gbps Type-C Port
– 2x USB 10Gbps Type-A Ports
– 5x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x DisplayPort 1.4 Port
– 1x HDMI 2.1 Port
– 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
– 2x SMA Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– Realtek WiFi 6E 2×2 MIMO Tri-Band Adapter, Bluetooth 5.3
– Realtek High-Definition Audio Codec
– PCIe x16 EZ-Latch Quick-Release Mechanism
– Direct 12+2+2 Phase Digital VRM Solution
– Gigabyte Q-Flash Plus
– Gigabyte M.2 Thermal Guard with EZ-Latch
– Gigabyte Smart Fan 6 Technology
– Supports Windows 11 64-bit
– 3 Year Warranty
11 in stock

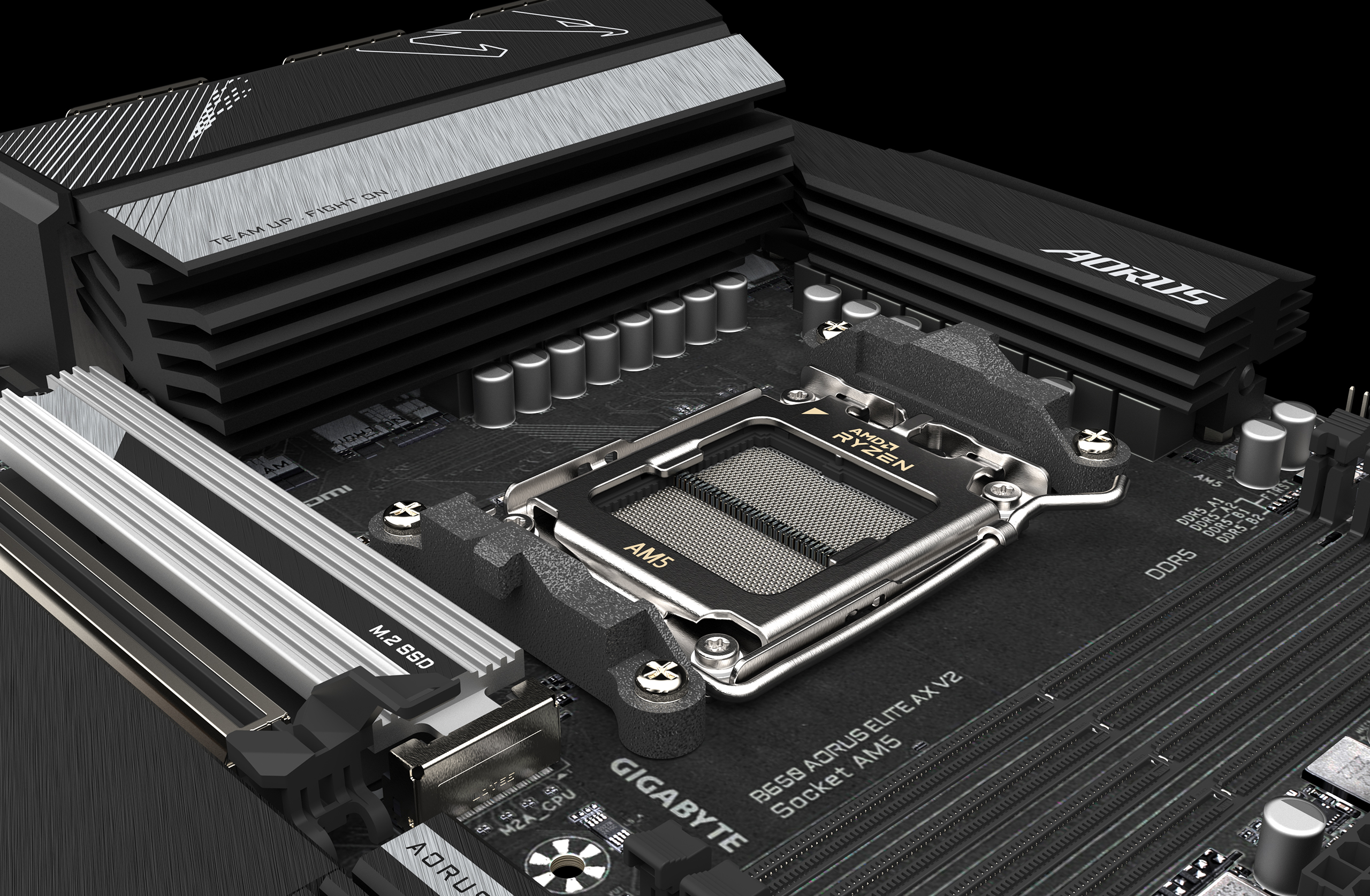

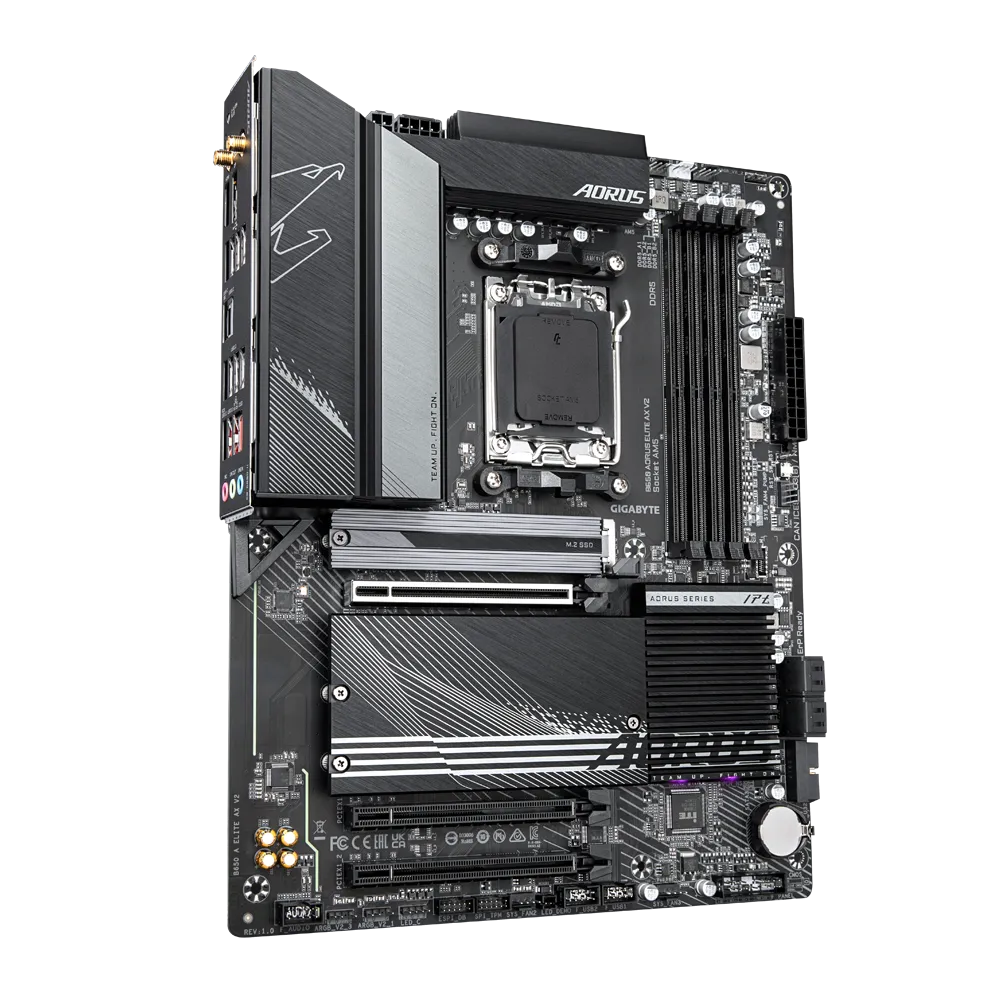

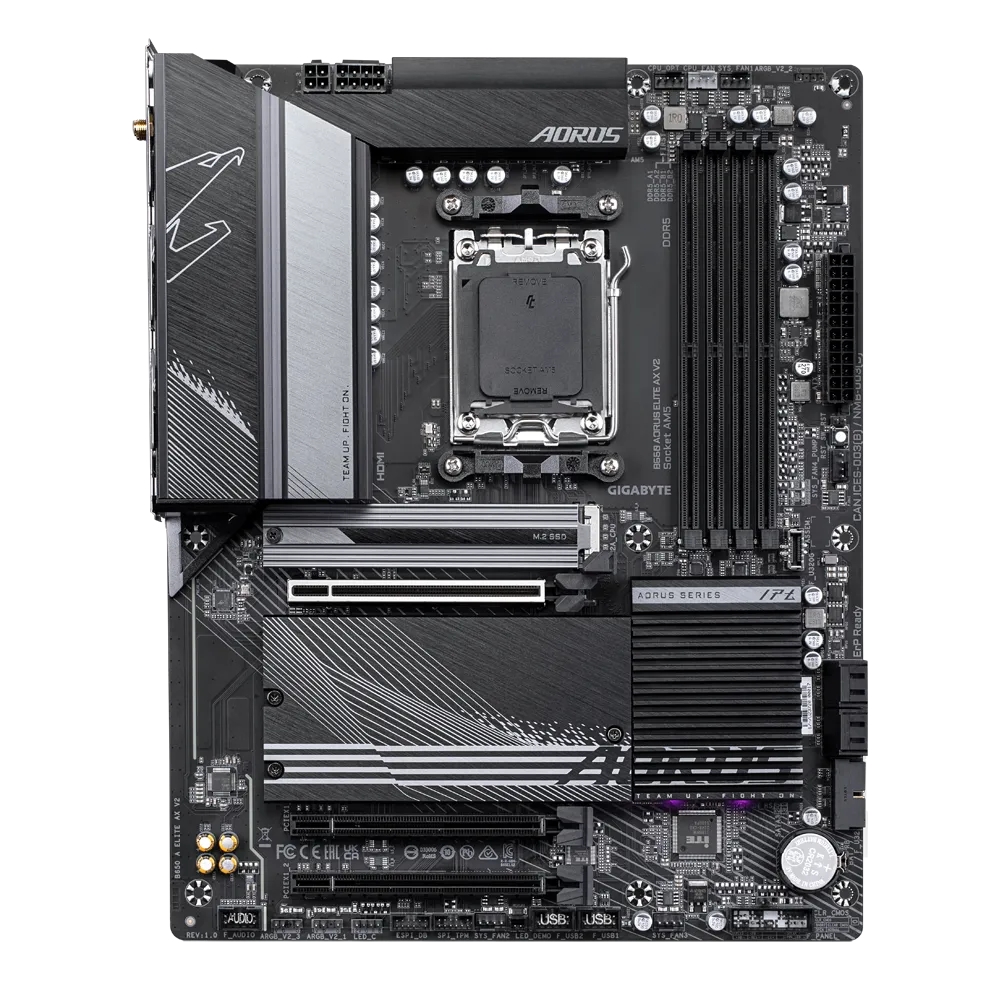

Gigabyte B650 AORUS ELITE AX V2
The B650 AORUS ELITE AX V2 from GIGABYTE brings together the AM5 socket ecosystem with advanced connectivity and high‑end features at a mid‑tier price point. With robust power delivery, next‑gen storage support and built‑in WiFi 6E, it’s designed for gamers, creators and future‑proof builders.
Key Features
- AM5 Socket & B650 Chipset Support: Ready for AMD Ryzen 7000/8000 series processors.
- 12+2+2 Twin Digital VRM Design with 6‑Layer PCB & 2× Copper Layers: Ensures stable power delivery under heavy loads.
- Triple M.2 Slots including PCIe 5.0 x4: For ultra‑fast NVMe storage and high capacity.
- High Memory Support: 4× DDR5 DIMMs, supports high overclocked frequencies (e.g., up to 8000 MT/s listed) for demanding workloads.
- Built‑in WiFi 6E & 2.5 Gb LAN: Modern wireless and wired networking out of the box.
| Form Factor | ATX |
|---|---|
| Chipset | AMD B650 |
| CPU Socket | AM5 (supports Ryzen 7000/8000 series) |
| Memory | 4× DDR5 DIMMs — supports high OC speeds (e.g., up to ~8000 MT/s) |
| Storage Interfaces | 3× M.2 slots (including 1× PCIe 5.0 x4) + SATA ports |
| Networking | WiFi 6E + 2.5 Gb Ethernet LAN |
| Power Design | 12+2+2 Twin Digital VRM, 6‑layer PCB with 2× Copper Layers |
Why Choose This Board?
If you’re building a modern AM5 system and you want strong connectivity, storage speed, and future‑proofing without going into ultra‑high‑end pricing, the B650 AORUS ELITE AX V2 delivers excellent value. It provides the foundation for powerful gaming rigs, content creation workstations or high‑spec productivity builds — with room to upgrade later.
