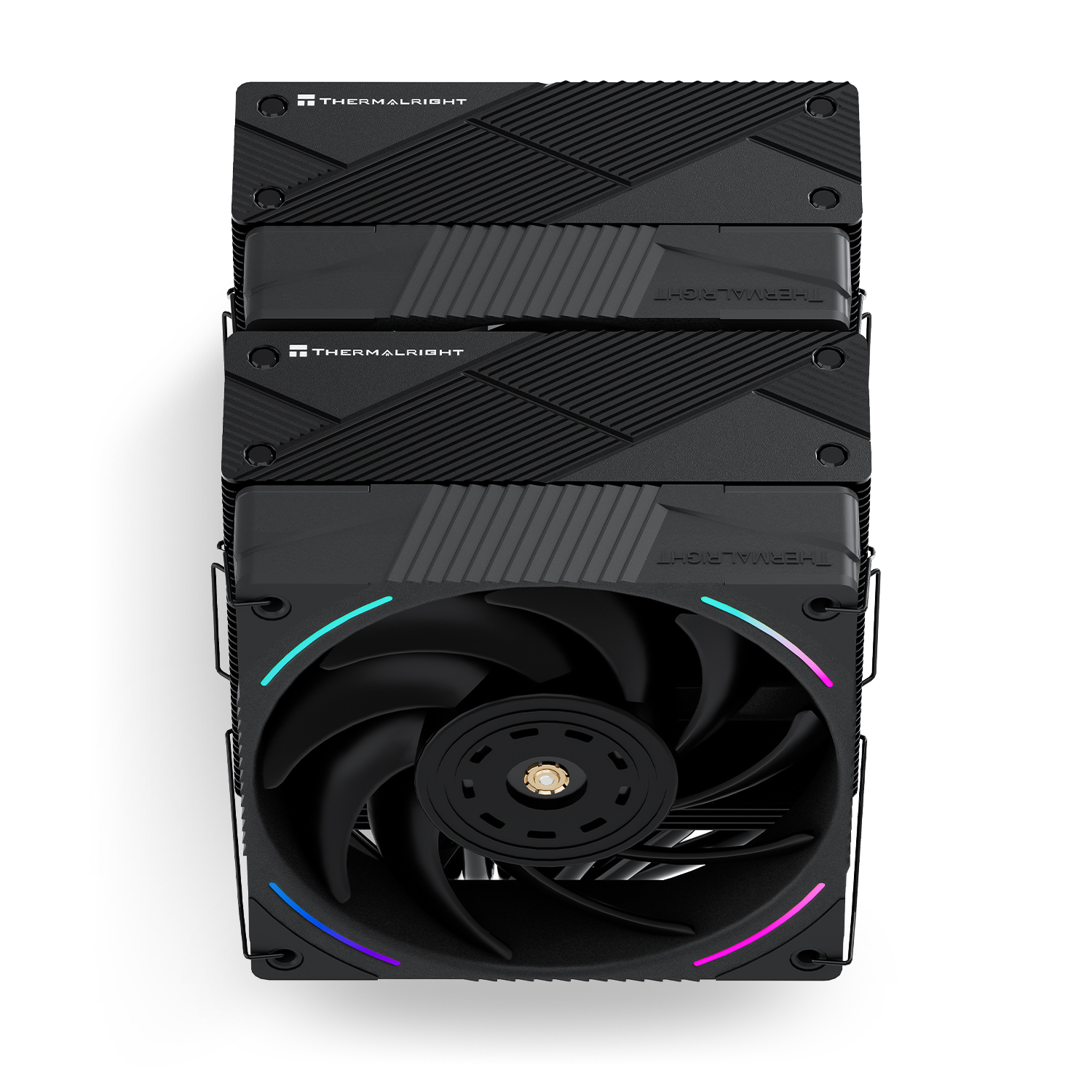

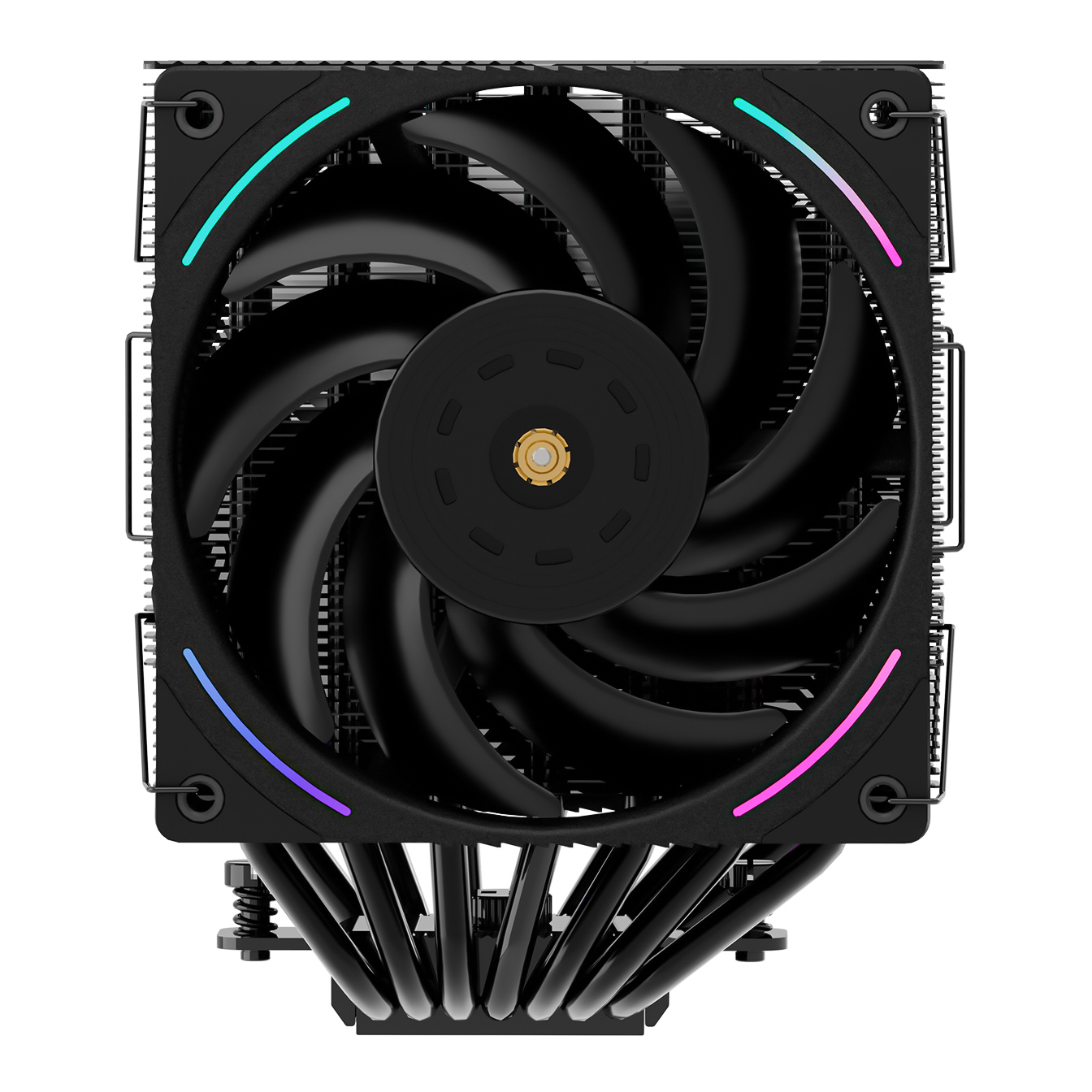

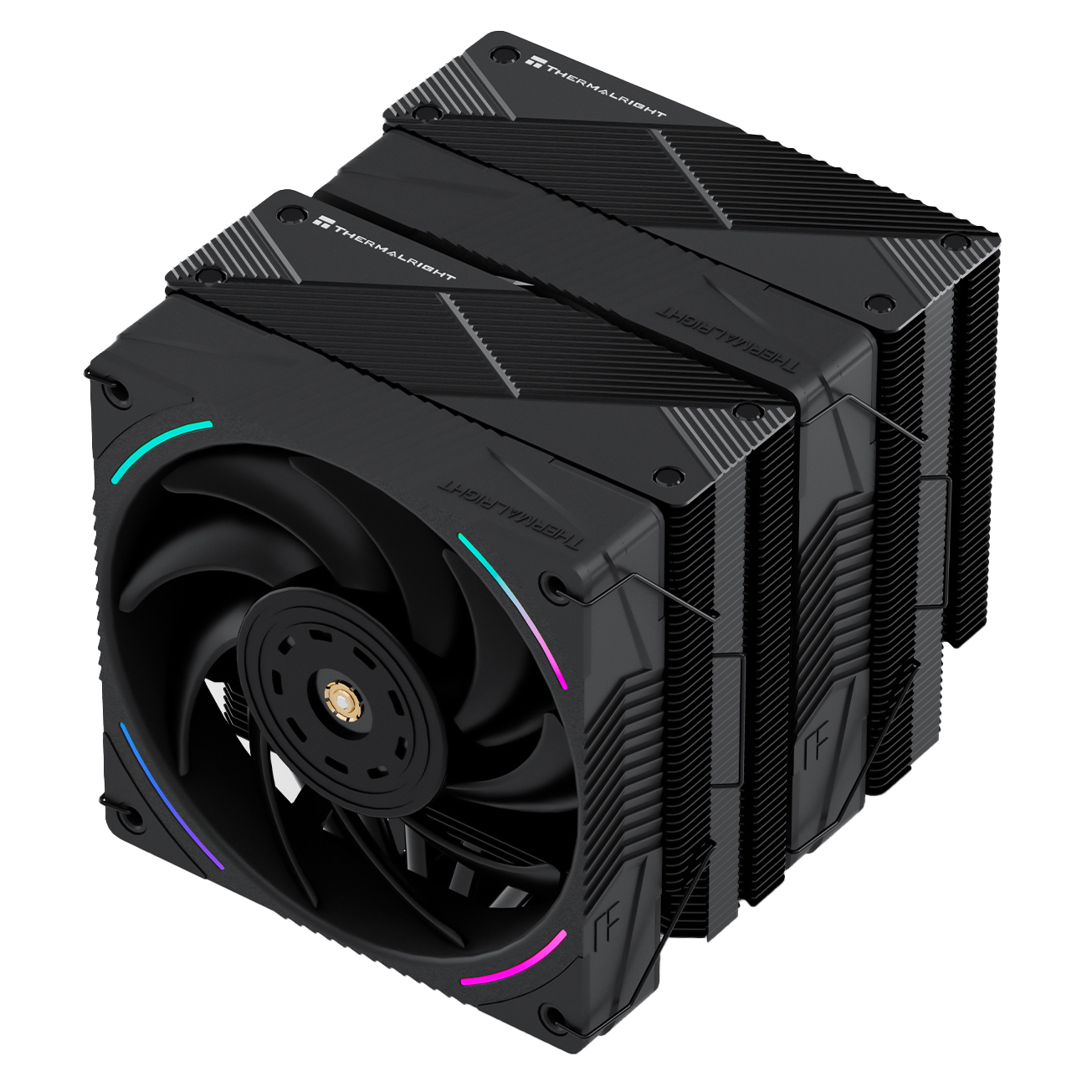

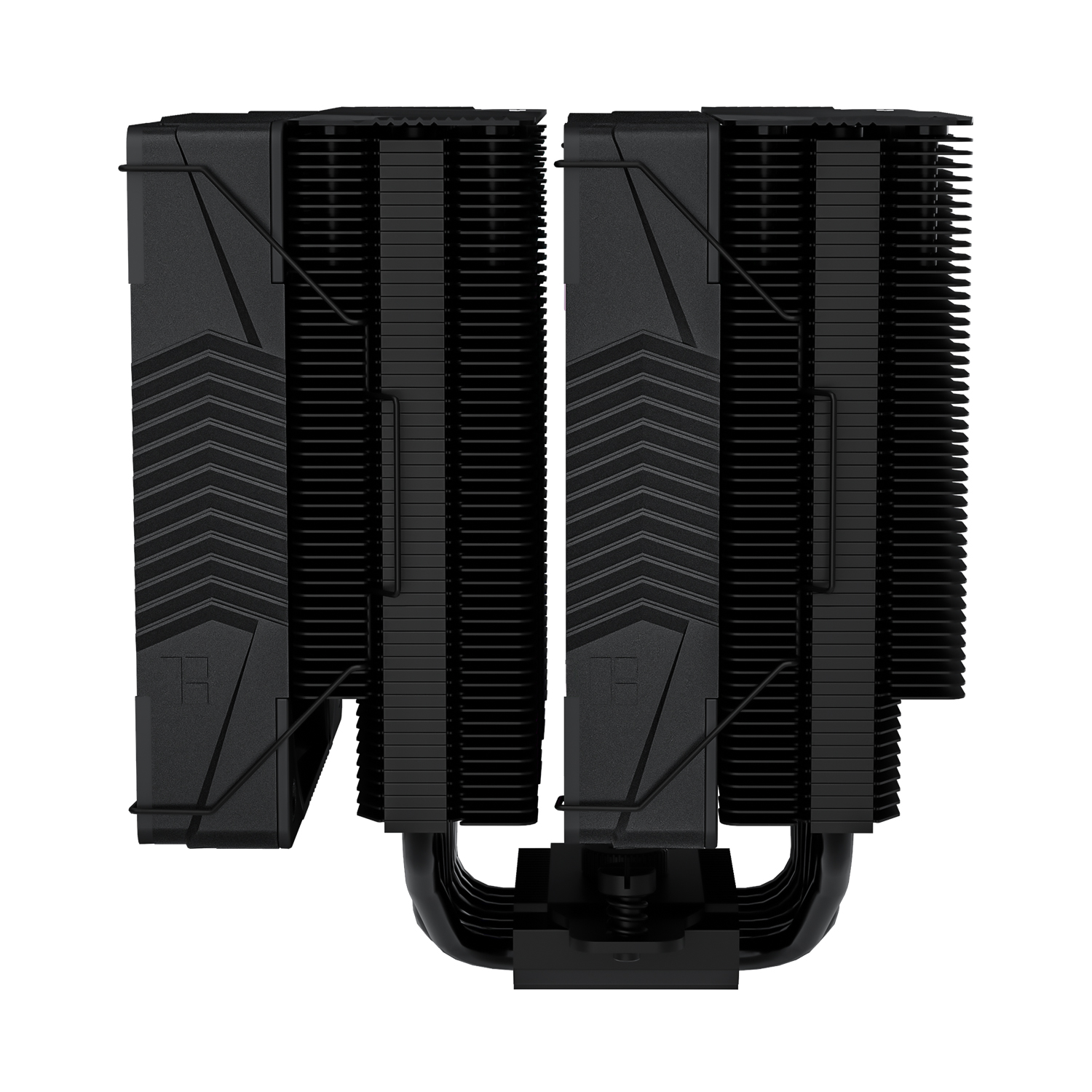

Thermalright Phantom Spirit 120 EVO CPU Air Cooler

Short Description

High-performance dual-tower CPU cooler featuring seven 6mm heatpipes and a nickel-plated pure copper base for efficient heat dissipation. Comes with an ARGB PWM fan delivering high airflow and quiet operation, perfect for gaming PCs and high-performance desktop builds.

Features

• Dual-tower heatsink design for maximum thermal efficiency
• Seven 6mm heatpipes with nickel-plated C1100 copper base for superior heat transfer
• TL-K12 PWM fan with ARGB lighting for customizable RGB effects
• High airflow at 69 CFM while maintaining low noise levels (27 dBA MAX)
• Durable S-FDB V2 bearing for long-lasting, quiet performance
• Compatible with Intel LGA115X/1200/1700/1851/2011/2066 and AMD AM4/AM5 sockets
• Easy installation with included mounting hardware

Specifications

• Heatsink Dimensions: 11 cm × 12.5 cm × 15.7 cm (L × W × H)
• Heatsink Weight: 810 g (without fan)
• Heatpipes: 7 × 6 mm
• Copper Base: C1100 pure copper, nickel-plated
• Fan Dimensions: 12 cm × 12 cm × 2.5 cm
• Fan Weight: 220 g
• Fan Rated Speed: 2150 RPM ±10% (MAX)
• Fan Noise Level: 27 dBA (MAX)
• Air Flow: 69 CFM (MAX)
• Air Pressure: 2.87 mm H₂O (MAX)
• Fan Ampere: 0.16 A
• Fan Connector: 4-pin PWM
• ARGB Connector: 3-pin 5V
• Bearing Type: S-FDB V2

Protection Features

• Not specified

What’s in the Box

• Phantom Spirit 120 EVO heatsink
• TL-K12 ARGB PWM fan
• Mounting hardware for Intel and AMD sockets
• User manual

Packaging Details (Estimated)

• Box Dimensions: 17 cm × 16 cm × 22 cm
• Box Weight: ~1.0–1.1 kg
