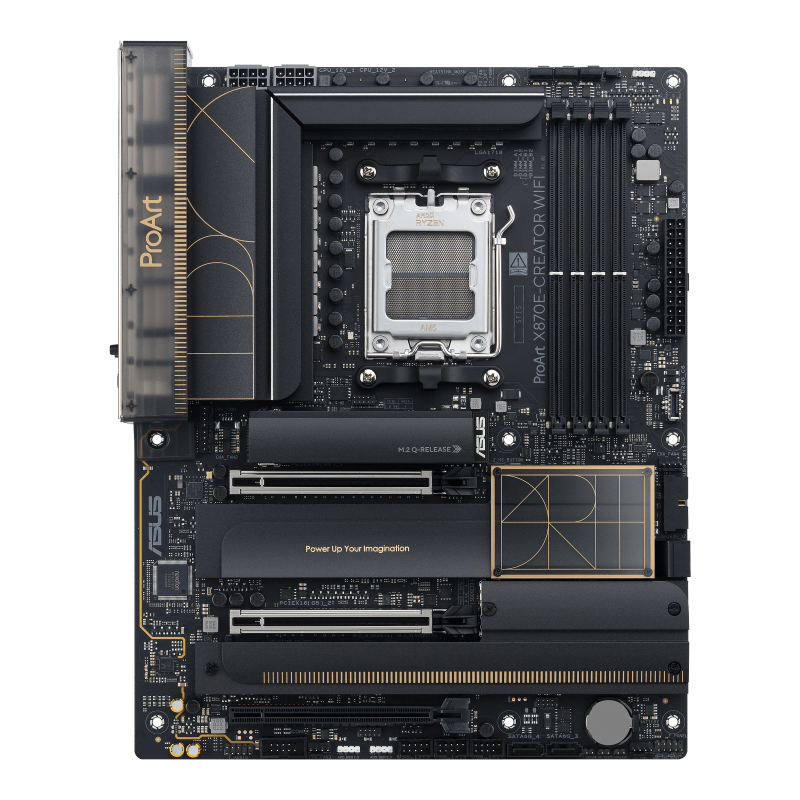

ASUS PROART X870E-CREATOR WIFI AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard
R11699,00
ETA: 04/12/2025
– ATX Form Factor
– AMD X870E Chipset
– Socket AM5
– AMD Ryzen 9000 & 8000 & 7000 Series CPUs Supported
– 4x DDR5 DIMM Slots, Supports Up to 192GB
– Supports up to DDR5-8000MHz+(OC)
– 2x PCIe 5.0 x16 slots (supports x16 mode)
– 1x PCIe 4.0 x16 slot (supports x4 mode)
– 4x M.2 Slots and 4x SATA 6Gb/s Ports
– 2x USB 4 (40Gbps) Type-C Ports
– 7x USB 10Gbps Type-A Ports, 1x USB 20Gbps Type-C Ports
– 1x USB 2.0 Port
– 1x HDMI Port, 1 x Wi-Fi Module
– Dual Ethernet: 1x Marvell AQtion 10Gb Port, 1x Intel 2.5Gb Port
– 1x Optical S/PDIF out port, 1x BIOS FlashBack Button
– 1x Clear CMOS Button
– 802.11be 2×2 Tri-Band WiFi 7
– Bluetooth v5.4
– 16+2+2 Power Stages
– Exclusive AI Technologies
– ProArt Creator HUB
– ASUS Control Center Express
– ASUS GlidEx
– 3 Year Warranty
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
ASUS ProArt X870E-CREATOR WIFI – AM5 ATX Motherboard for Creators
Designed for heavy 3D, video and design workflows, ProArt X870E-CREATOR WIFI blends a creator-grade I/O stack with next-gen bandwidth: dual PCIe® 5.0 x16 slots, two PCIe 5.0 M.2 (plus 2× PCIe 4.0 M.2), dual USB4® (40 Gbps) on the rear I/O, 10 GbE + 2.5 GbE networking, integrated Wi-Fi 7, and a front-panel USB-C® 20 Gbps header with up to 30 W USB-PD/QC4+ fast charging.
Key Features
- AM5 + DDR5 (up to 256 GB): Four DIMMs with EXPO/AEMP tuning and OC headroom to 8000+ MT/s, ready for Ryzen™ 9000/8000/7000.
- Dual PCIe 5.0 x16: Two SafeSlot x16 slots (x16 or x8/x8 with Ryzen 9000/7000); CPU-dependent lane behavior clearly defined.
- Four M.2 slots: 2× CPU-linked PCIe 5.0 x4 (Ryzen 9000/7000), 2× chipset PCIe 4.0 x4; all with heatsinks and RAID support.
- Creator I/O: Rear 2× USB4 (40 Gbps, Type-C with DP 1.4 up to 8K60), HDMI 2.1, 7× USB-A 10 Gbps, 1× USB-A 2.0; front USB-C 20 Gbps with up to 30 W PD.
- Networking for Media Work: Onboard Marvell® AQtion 10 GbE + Intel® 2.5 GbE with ASUS LANGuard, plus Wi-Fi 7 (2×2) & Bluetooth 5.4.
- Audio: Realtek ALC1220P 7.1-ch HD codec, premium caps, isolated PCB layers, and de-pop circuitry.
- DIY & Reliability: Q-Release Slim for GPU, M.2 Q-Release/Q-Slide/Q-Latch, pre-mounted I/O shield, BIOS FlashBack™, and ASUS 5X Protection III.
| Specification | Detail |
|---|---|
| CPU Support | AMD AM5 — Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870E |
| Memory | 4× DDR5 DIMM, dual-channel, up to 256 GB; up to 8000+ MT/s (OC); AMD EXPO™ / AEMP supported |
| Expansion | 2× PCIe 5.0 x16 (x16 or x8/x8; CPU-dependent) + 1× PCIe 4.0 x16 (x4, chipset) |
| Storage | 4× M.2 total: 2× PCIe 5.0 x4 (CPU; with Ryzen 9000/7000) + 2× PCIe 4.0 x4 (chipset); 4× SATA 6 Gb/s; NVMe/SATA RAID |
| Rear USB | 2× USB4 (40 Gbps, Type-C), 1× USB-C 20 Gbps, 7× USB-A 10 Gbps, 1× USB-A 2.0 |
| Front USB | 1× USB-C 20 Gbps (up to 30 W PD/QC4+), 1× USB 5 Gbps header (adds 2), 3× USB 2.0 headers (adds 6) |
| Display I/O | USB4 Type-C with DP 1.4 (up to 8K60) & HDMI 2.1 (4K60) |
| Networking | 10 GbE (Marvell® AQtion) + 2.5 GbE (Intel®), Wi-Fi 7 (2×2) & Bluetooth 5.4 |
| Audio | Realtek ALC1220P 7.1-ch HD, 120 dB SNR playback / 113 dB SNR recording |
| Form Factor | ATX (30.5 × 24.4 cm) |
Why You’ll Love It
ProArt X870E-CREATOR WIFI is purpose-built for modern content creation: two Gen-5 M.2 for blistering scratch drives, dual USB4 for fast external workflows and single-cable displays, and 10 GbE + 2.5 GbE for speedy NAS access—wrapped in ASUS’s creator-focused software and DIY conveniences so your rig stays fast, stable, and upgrade-ready.
