ASUS ROG STRIX B650E-F GAMING WIFI AMD Socket AM5 ATX Desktop Motherboard

ASUS ROG Strix B650E-F Gaming WiFi – AM5 ATX Motherboard

A performance-focused AM5 platform, the ROG Strix B650E-F Gaming WiFi combines a robust 12+2 power-stage (80 A) design with DDR5 up to 8000+ MT/s (OC), PCIe 5.0 for your primary GPU slot (with Ryzen 9000/7000) and a PCIe 5.0 M.2 slot, tri-M.2 storage, and next-gen connectivity including Wi-Fi 6E, Intel 2.5 GbE, and USB-C 20 Gbps. DIY touches like PCIe Q-Release, M.2 Q-Latch, and BIOS FlashBack™ make building and upgrading painless.

Key Features

• Power to spare: 12+2 teamed power stages rated at 80 A, ProCool 8+4-pin EPS, beefy VRM heatsinks, and high-conductivity pads for stable high-core Ryzen performance.
• Gen-5 ready: One PCIe 5.0 x16 slot for next-gen GPUs (Ryzen 9000/7000) and one CPU-linked PCIe 5.0 M.2 slot for ultra-fast NVMe SSDs.
• Tri-M.2 with heatsinks: 1× PCIe 5.0 x4 (M.2_1) + 2× PCIe 4.0 x4 (M.2_2/M.2_3), plus 4× SATA 6 Gb/s.
• DDR5 8000+ (OC): Four DIMMs up to 192 GB with AMD EXPO™ and OptiMem II trace tuning.

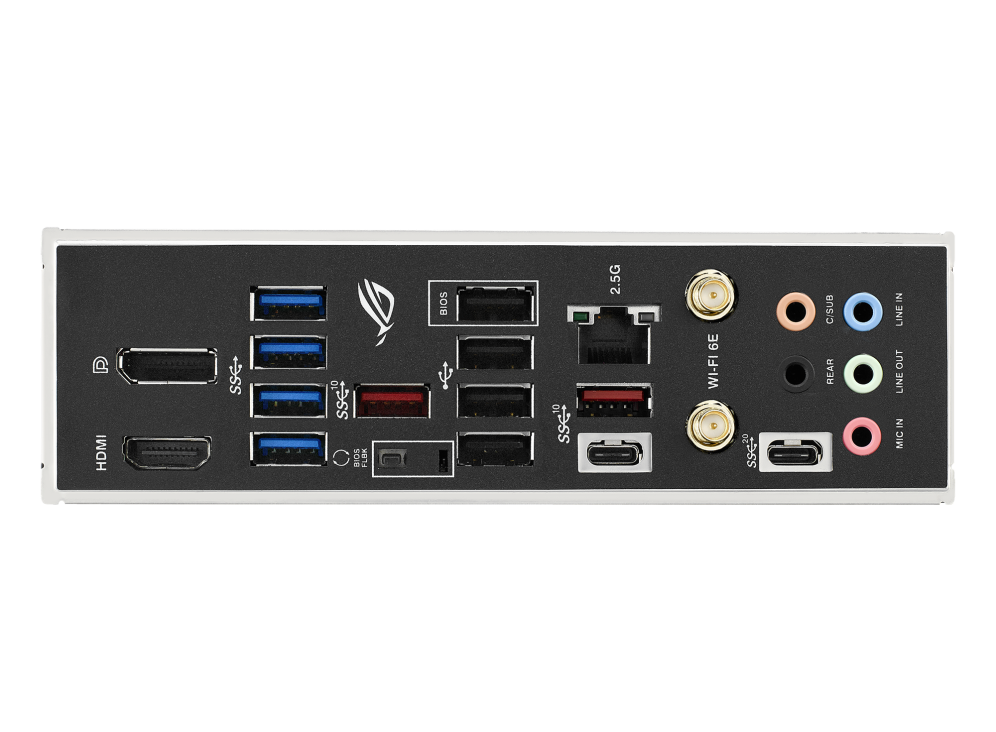

• Next-gen I/O: Rear USB-C 3.2 Gen 2×2 (20 Gbps), additional Gen 2/Gen 1 ports, and front-panel USB-C Gen 2.
• Networking: Intel® 2.5 Gb Ethernet + integrated Wi-Fi 6E (2×2) with BT 5.2.
• ROG audio: SupremeFX ALC4080 codec with Savitech headphone amp, shielding, and premium capacitors.
• DIY-friendly: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED diagnostics, pre-mounted I/O shield, SafeSlot/SafeDIMM, and BIOS FlashBack™.

Why You’ll Love It

If you’re building a fast, compact AM5 rig that won’t bottleneck next-gen GPUs or NVMe drives, the B650E-F hits the sweet spot: strong 80 A VRM, DDR5-8000+ tuning, PCIe 5.0 for GPU and OS drive, plus Wi-Fi 6E, 2.5 GbE, and a stacked rear I/O—all wrapped in ROG’s builder-friendly design.
