GIGABYTE A520M-K V2 – Micro ATX AMD Motherboard
Original price was: R1499,00.R1329,00Current price is: R1329,00.
– Micro-ATX Form Factor
– AMD A520 Chipset
– Socket AM4
– 2x DDR4 DIMM Slots, Supports Up to 64GB
– Supports up to DDR4-5100
– 1x PCIe 3.0 x16 Slot, 1x PCIe 3.0 x1 Slot
– 4x SATA 6Gb/s Ports, 1x M.2 Slots
– 4x USB 3.2 Gen 1 ports, 2x USB 2.0/1.1 ports
– 1x D-Sub port, 1x HDMI port
– Realtek GbE LAN Chip (1000 Mbit/100 Mbit)
– Realtek Audio Codec
– 3 Year Warranty
79 in stock
GIGABYTE A520M-K V2 – Micro ATX AMD Motherboard
The GIGABYTE A520M-K V2 is an ultra-durable AMD A520 chipset motherboard designed for reliable performance in budget builds. Supporting Ryzen 5000/4000/3000 Series processors, it features dual-channel DDR4 memory, PCIe 3.0 M.2 storage, Gigabit Ethernet with bandwidth management, and Smart Fan 5 for optimized cooling. Ideal for everyday computing with essential connectivity and multi-display support via HDMI and D-Sub.

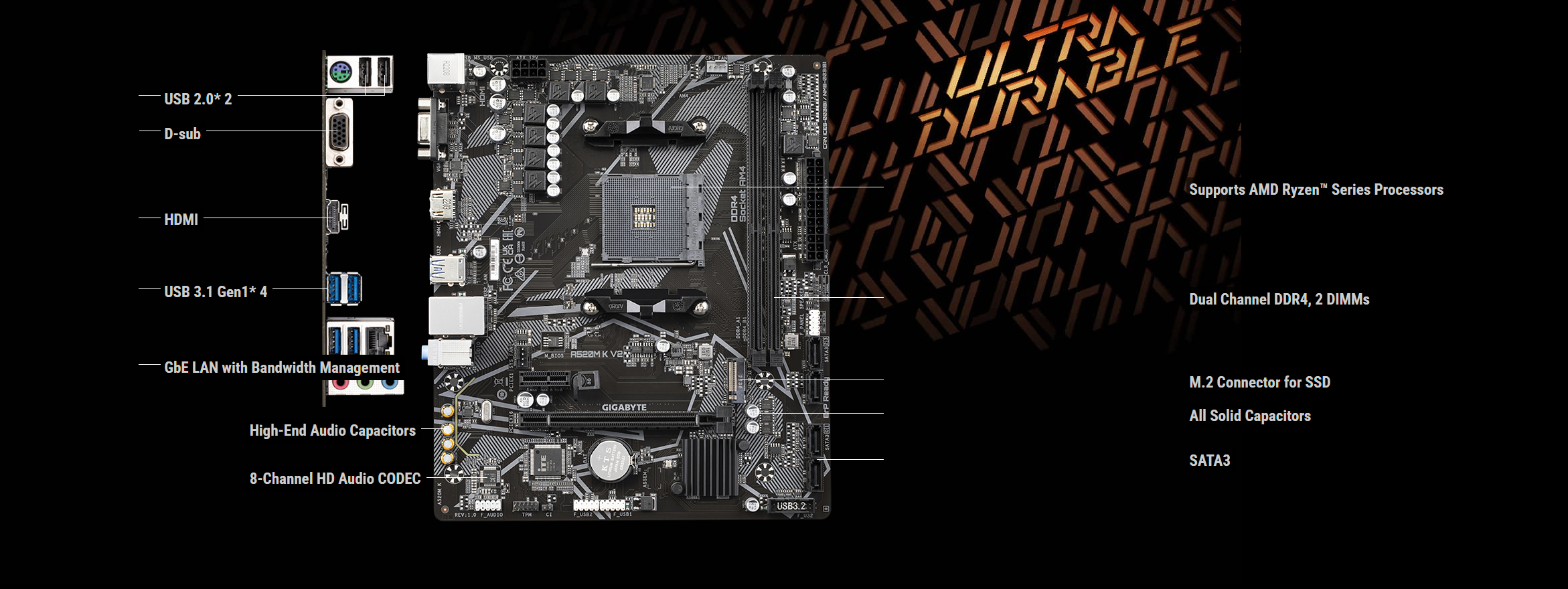

Key Features
- AMD Ryzen Support: Compatible with Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors for versatile performance.
- Dual Channel DDR4: ECC/Non-ECC Unbuffered memory support with 2 DIMM slots for efficient multitasking.
- PCIe Gen3 M.2 Slot: High-speed NVMe SSD support with PCIe and SATA modes for fast storage.
- GbE LAN with Management: Gigabit Ethernet with bandwidth control for stable networking.
- Premium Audio: 8-channel HD Audio enhanced by high-quality capacitors and Audio Noise Guard.
- Multi-Display Ready: Rear HDMI and D-Sub ports for dual-monitor setups.
- Smart Fan 5: Multiple temperature sensors, hybrid fan headers, and FAN STOP for quiet, efficient cooling.
- Ultra Durable Design: Anti-sulfur resistors, all-solid capacitors, and patented double locking bracket for longevity.
- GIGABYTE APP Center: Easy access to BIOS tools like EasyTune, @BIOS, and System Information Viewer.
| Specification | Detail |
|---|---|
| Product Code | A520M-K V2 (rev. 1.0) |
| EAN | 4719331307343 |
| Type | Micro ATX Motherboard |
| Chipset | AMD A520 |
| CPU Support | AMD Ryzen™ 5000/5000 G-Series/4000 G-Series/3000/3000 G-Series Processors (AM4 socket) |
| Memory | Dual Channel ECC/Non-ECC Unbuffered DDR4, 2 DIMMs; Supports DDR4 5100(O.C.)/5000(O.C.)/4866(O.C.)/4800(O.C.)/4600(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz memory modules; Max 64 GB |
| Expansion Slots | 1 x PCIe x16 slot (PCIEX16), supporting x16 mode; 1 x PCIe x1 slot (PCIEX1), supporting x1 mode; 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2 SSD) |
| Storage | 1 x M.2 Connector (NVMe PCIe Gen3 x4 & SATA modes); 4 x SATA 6Gb/s connectors; Support for RAID 0 and RAID 1 |
| Audio | Realtek® ALC897 codec; 7.1-Channel HD Audio; High Quality Audio Capacitors; Audio Noise Guard |
| LAN | 1 x GbE LAN with Bandwidth Management (Realtek® RTL8111H(C) Gigabit LAN) |
| Video Outputs | 1 x HDMI port (supports 4K@60Hz); 1 x D-Sub port |

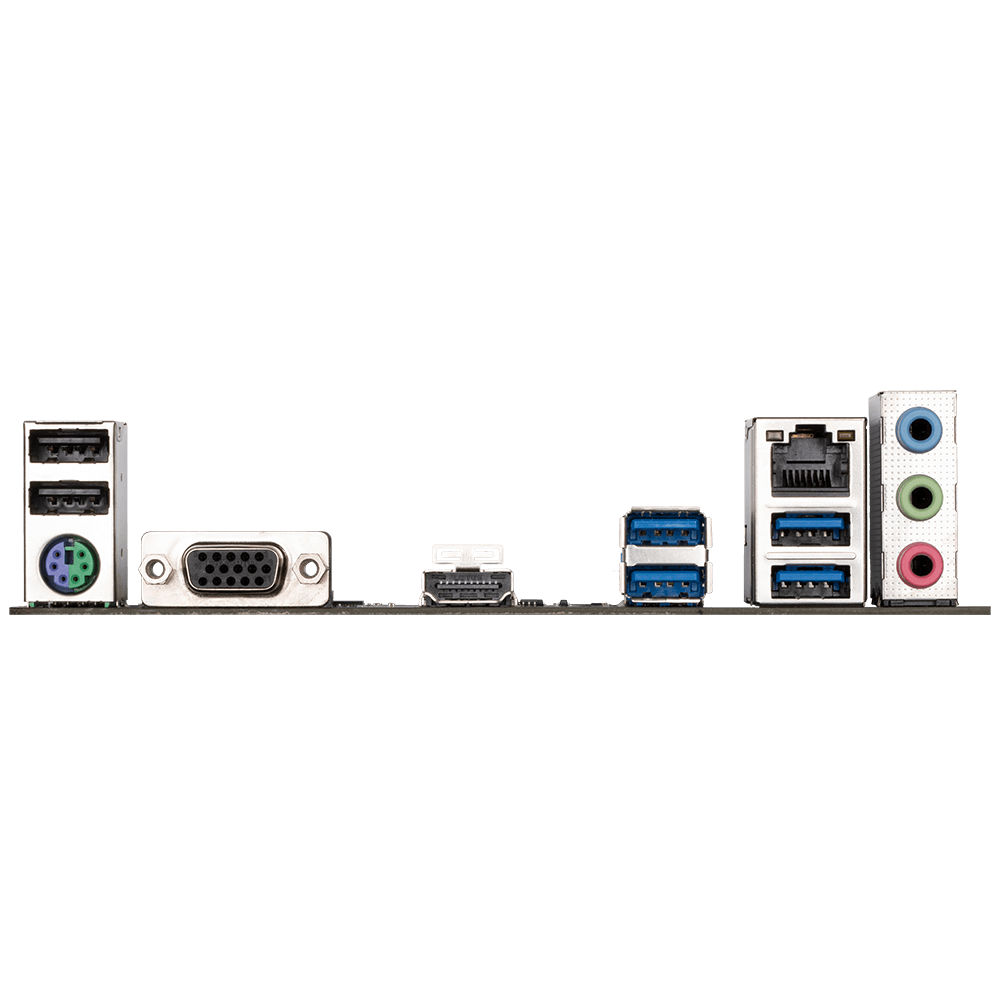

| USB Ports | Rear: 2 x USB 2.0, 4 x USB 3.2 Gen 1; Internal: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Audio I/O | 3 x Audio jacks; 1 x Optical S/PDIF out connector |
| Form Factor | Micro ATX (24.4 cm x 20.0 cm) |
| Power Design | All-Solid Capacitors; Smart Fan 5 with 5 Temperature Sensors, 2 Hybrid Fan Headers, FAN STOP |
| BIOS Features | AMI UEFI BIOS; Features: Fast Boot, GIGABYTE APP Center (EasyTune, @BIOS, System Information Viewer, RGB Fusion, Smart Backup, Game Boost, Q-Flash, etc.) |
| Weight | Approx. 0.8 kg |

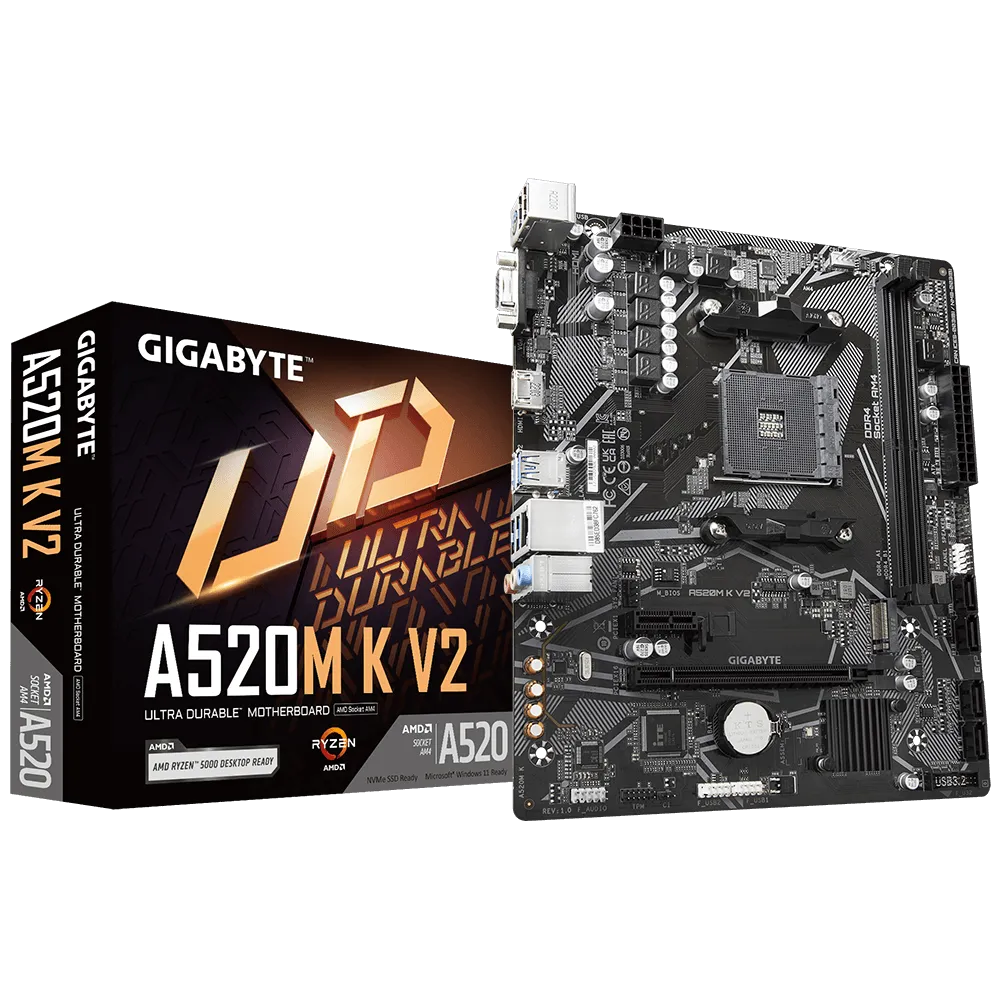

| Package Content | GIGABYTE A520M-K V2 Motherboard × 1 Quick Installation Guide × 1 I/O Shield × 1 SATA Cable × 2 M.2 Screw × 1 Rear I/O Cables × 1 |
Why You’ll Love It
The A520M-K V2 offers essential features for reliable AMD builds at an affordable price, with robust power delivery, smart thermal management via Smart Fan 5, and easy BIOS tools for quick setup. Its anti-sulfur design ensures long-term stability, making it perfect for entry-level gaming, office PCs, or HTPCs that demand durability without complexity.
