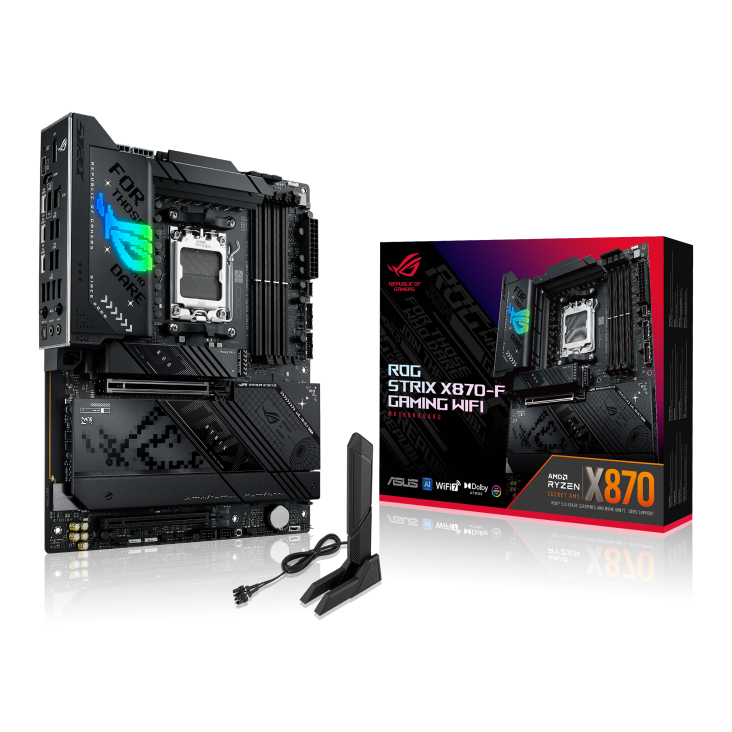

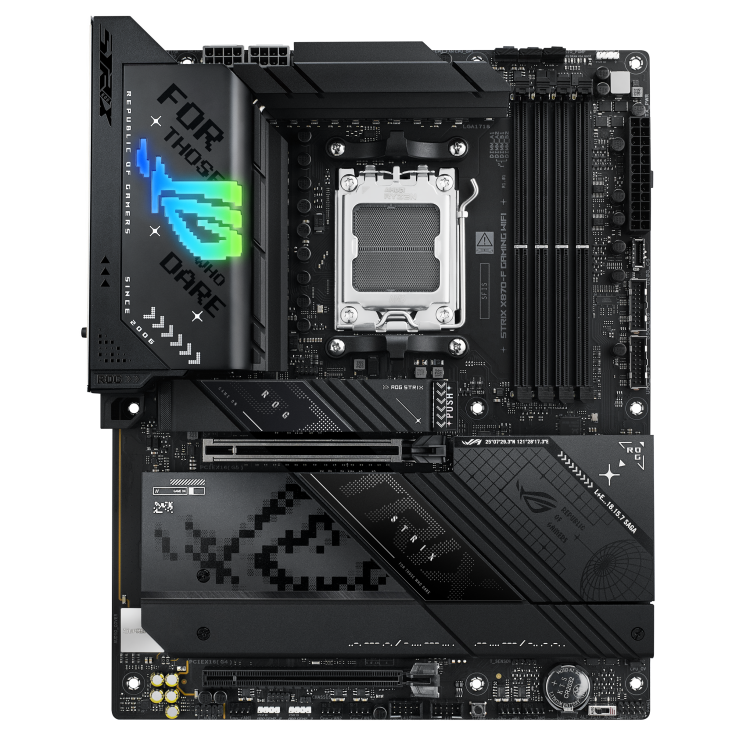

ASUS ROG Strix X870-F Gaming WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard
R9999,00
– ATX Form Factor
– AMD X870 Chipset
– Socket AM5
– AMD Ryzen 9000 & 8000 & 7000 Series CPUs Supported
– 4x DDR5 DIMM Slots, Supports Up to 192GB
– Supports up to DDR5-8000MHz+(OC)
– 1x PCIe 5.0 x16 Slot (Supports x16 Mode)
– 1x PCIe 4.0 x16 Slot (Supports x8/x4 Mode), 1x PCIe 4.0 x16 Slot (Supports x4 Mode)
– Supports 4x M.2 Slots & 2x SATA 6Gb/s Ports
– 2x USB 4 (40Gbps) Type-C Ports (DP Alt mode)
– 5x USB 10Gbps Type-A Ports, 1x USB 10Gbps Type-C with up to 30W PD Fast-charge
– 4x USB 5Gbps Type-A Ports
– 1x DisplayPort, 1x HDMI Port
– 1x Wi-Fi Module, 1x Intel 2.5Gb Ethernet
– 2x Audio Jacks, 1x Optical S/PDIF Out Port
– 1x BIOS FlashBack Button, 1x Clear CMOS Button
– 802.11be 2×2 Tri-Band WiFi 7
– Bluetooth v5.4
– 16(110A)+ 2(110A)+ 2 Power Stages
– Dual ProCool II Power Connectors
– 4x M.2 Heatsinks
– 5x 4-pin PWM Chassis Fan Headers, AIO Pump Header
– 3x 3-Pin Addressable Gen 2 RGB Headers
– SupremeFX ALC4080 Codec
– Savitech SV3H712 AMP
– 3 Year Warranty
4 in stock
ASUS ROG Strix X870-F Gaming WiFi – AM5 ATX Motherboard
A performance-focused AM5 platform for Ryzen™ 9000/8000/7000, the Strix X870-F combines a robust 16 + 2 + 2 (up to 110 A) power solution with DDR5 up to 8000+ MT/s (OC), PCIe 5.0 for your GPU, two PCIe 5.0 M.2 slots (four M.2 total), dual USB4® 40 Gbps on the rear I/O, integrated Wi-Fi 7, and Intel® 2.5 GbE—plus builder-friendly touches like PCIe Q-Release Slim and M.2 Q-Latch.
Key Features
- 16 + 2 + 2 power stages (up to 110 A): With dual ProCool II 8-pin EPS and enlarged VRM heatsinks for stable boosts on high-core Ryzen chips.
- DDR5 8000+ MT/s (OC): 4 × DIMMs, up to 256 GB with EXPO and ASUS AEMP memory tuning.
- Next-gen lanes where they matter: 1 × PCIe 5.0 x16 SafeSlot for GPUs, 2 × PCIe 5.0 x4 M.2 (one up to 22110) + 2 × PCIe 4.0 x4 M.2 (four M.2 total).
- Dual USB4® 40 Gbps (Type-C): Each with DP Alt-Mode display output; plus a rear USB-C 10 Gbps port with up to 30 W USB-PD fast charge and USB Wattage Watcher.
- Networking: Integrated Wi-Fi 7 (2×2) with BT 5.4 and Intel® 2.5 Gb Ethernet. (Full Wi-Fi 7 features require Windows 11 24H2+.)
- ROG audio: SupremeFX ALC4080 codec + Savitech amp, 120 dB SNR playback / 110 dB recording, plus optical S/PDIF out.
- DIY & reliability: PCIe Slot Q-Release Slim, M.2 Q-Latch/Q-Slide, Q-LED, pre-mounted I/O shield, BIOS FlashBack™ & Clear CMOS.
| Specification | Detail |
|---|---|
| CPU Support | AMD AM5 — Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM, dual-channel, up to 256 GB; up to 8000+ MT/s (OC); EXPO / AEMP supported |
| Graphics / Display | 1× DisplayPort 1.4 (up to 8K60) · 1× HDMI 2.1 (4K60) · Dual USB4 Type-C with DP Alt-Mode |
| Expansion Slots | Ryzen 9000/7000: 1× PCIe 5.0 x16 (CPU) · Ryzen 8000: 1× PCIe 4.0 x16 (x8/x4) · Chipset: 1× PCIe 4.0 x16 (x4) |
| Storage | 4× M.2 total — M.2_1 PCIe 5.0 x4 (2280); M.2_2 PCIe 5.0 x4 (22110); M.2_3 & M.2_4 PCIe 4.0 x4 (2280) · 2× SATA 6 Gb/s |

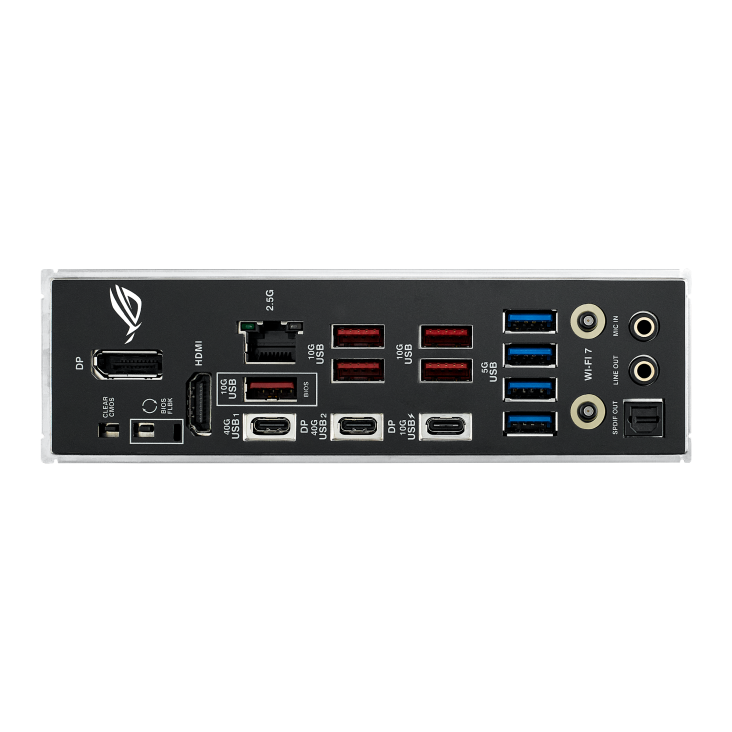

| Rear USB | 2× USB4 40 Gbps (Type-C) · 1× USB-C 10 Gbps (PD up to 30 W) · 5× USB-A 10 Gbps · 4× USB-A 5 Gbps |
| Front USB | 1× USB-C 20 Gbps header · 2× USB 5 Gbps headers (add 4) · 2× USB 2.0 headers (add 4) |
| Networking | Intel® 2.5 GbE · Wi-Fi 7 (2×2) · Bluetooth® 5.4 |
| Audio | ROG SupremeFX ALC4080, Savitech amp, optical S/PDIF out |
| Internal Headers | CPU_FAN, CPU_OPT, AIO_PUMP, 5× CHA_FAN, 3× ARGB Gen 2, Thermal Sensor, Start button, etc. |
| Form Factor | ATX (30.5 × 24.4 cm) · Windows 11 |
Why You’ll Love It
If you want a board that’s fast today and ready for tomorrow, the Strix X870-F delivers: Gen-5 GPU and OS-drive support, true creator-grade dual USB4, Wi-Fi 7 for low-latency wireless, and strong 16 + 2 + 2 power delivery—wrapped in ROG’s builder-friendly design so upgrades and maintenance stay painless.
