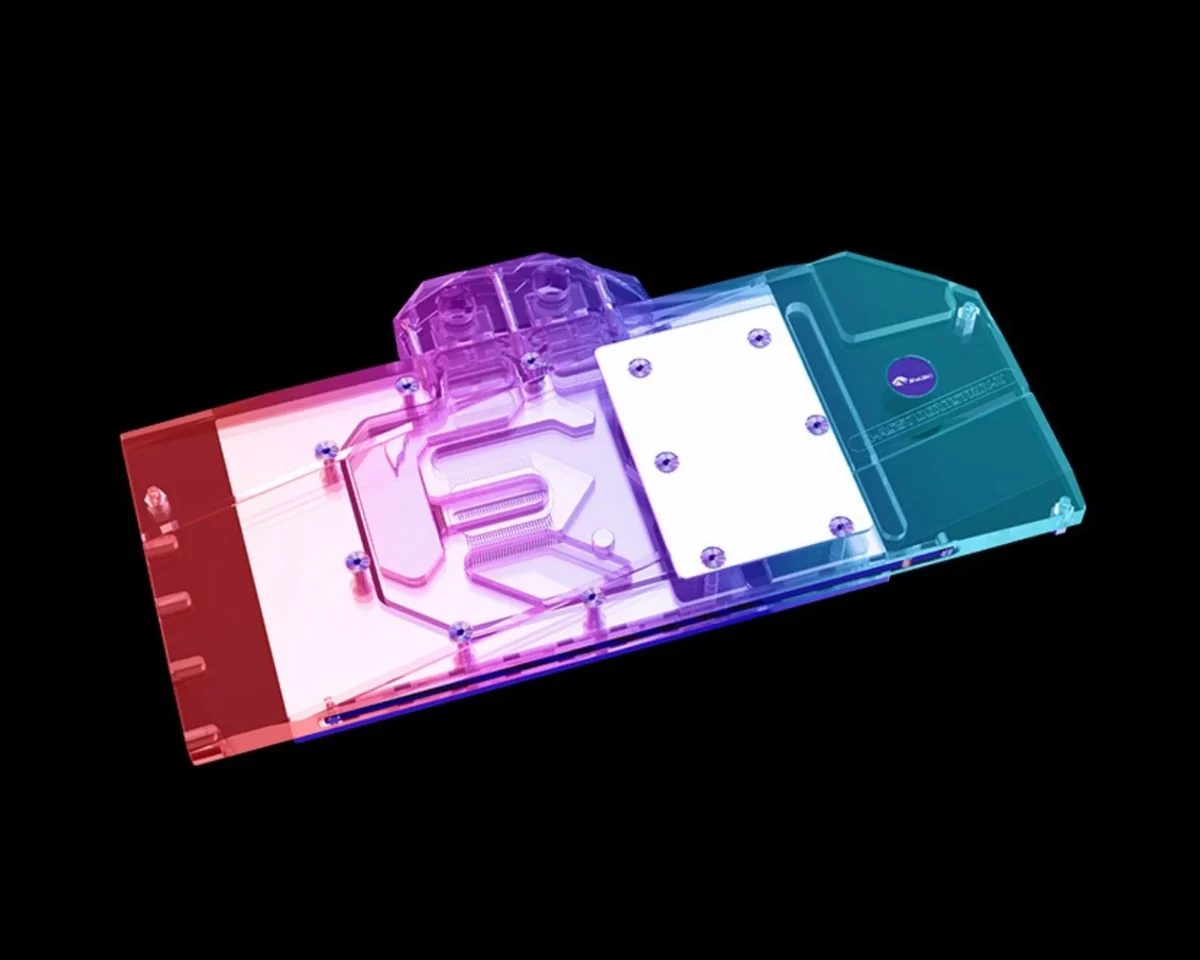

The Bykski AMD RX 5700 Public Version Full Coverage GPU Water Block is a work of art! This full coverage block, directly cools the video cards core (GPU), graphics memory (RAM) as well as a voltage regulator modules (VRM). By directly cooling these components you can achieve great temperatures! Along with these temperatures comes the ability to reach higher overclocks or extend the overall lifespan of your card by running at below factory temps.

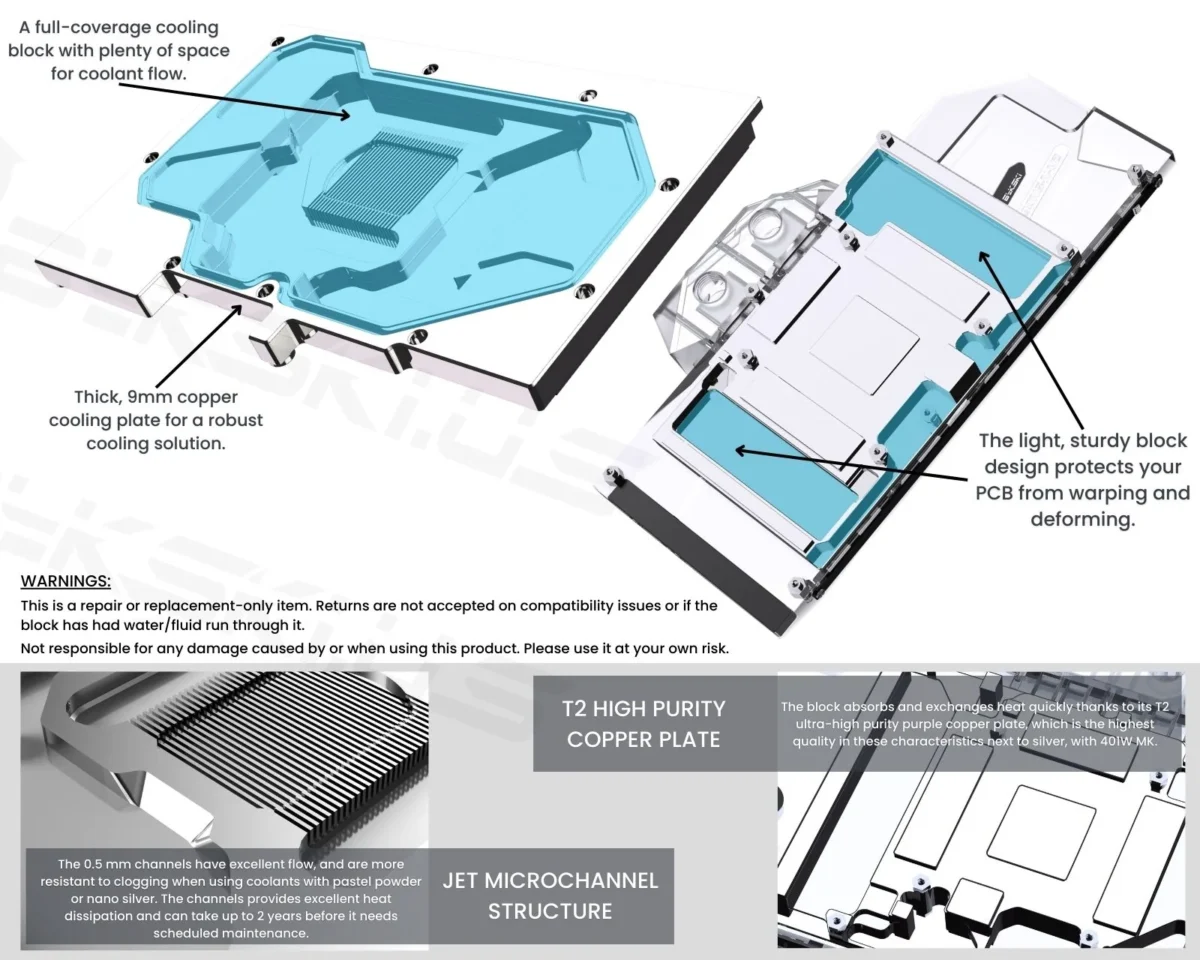

The block is constructed of high purity copper electroplated to prevent oxidation. A high flow design is used to allow multiple blocks to run in series. Top and bottom ports can be used to configure parallel or serial designs in multi-block setups.
FEATURES
- Finest Craftmanship
- Designed to Fit Standard G1/4″ Thread Fittings
- SLI/Crossfire Compliant
SPECIFICATIONS
- Model: A-RX5700XT-X
- Brand: Bykski
- Material: Electroplated High Purity Copper / Clear Acrylic
COMPATIBILITY
- (Including but not limited to the following models)
- Reference Edition AMD RX 5700 XT
- AMD Radeon RX 5700 XT, 8GB GDDR6
- compatibility based on reference design only, the block may not fit altered / super clocked and other third-party variations that deviate from the reference design.
- (expected visual compatibility below)
- AMD Radeon RX 5700, 8GB GDDR6
- AMD Radeon RX 5700 XT 50th Anniversary, 8GB GDDR6
- ASRock Radeon RX 5700 XT, 8GB GDDR6, (90-GA15ZZ-00UANF)
- ASRock Radeon RX 5700, 8GB GDDR6, (90-GA16ZZ-00UANF)
- ASUS Radeon RX 5700 XT, RX5700XT-8G, 8GB GDDR6, (90YV0D80-U0NA00)
- ASUS Radeon RX 5700, RX5700-8G, 8GB GDDR6, (90YV0D70-U0NA00)
NOT COMPATIBLE WITH 3 FAN ASUS VERSION OF GPU or STRIX - Gigabyte Radeon RX 5700 8G, 8GB GDDR6, (GV-R57-8GD-B)
- Gigabyte Radeon RX 5700 XT 8G, 8GB GDDR6, (GV-R57XT-8GD-B)
- MSI Radeon RX 5700 8G, 8GB GDDR6, (V803-891R)
- MSI Radeon RX 5700 XT 8G, 8GB GDDR6, (V803-890R)
- PowerColor Radeon RX 5700 8G, 8GB GDDR6, HDMI, 3x DP (21294-01-40G)
- PowerColor Radeon RX 5700 XT 8G, 8GB GDDR6, (AXRX 5700XT 8GBD6-M3DH)
- Sapphire Radeon RX 5700 8G, 8GB GDDR6, (21294-01-20G)
- Sapphire Radeon RX 5700 XT 8G, 8GB GDDR6, (21293-01-40G)
- XFX Radeon RX 5700 XT, 8GB GDDR6, (RX-57XT8MFD6)
- Fittings: G1/4″ Thread
- Stock Backplates: Due to mounting variances between cards, stock backplates not guaranteed to fit.

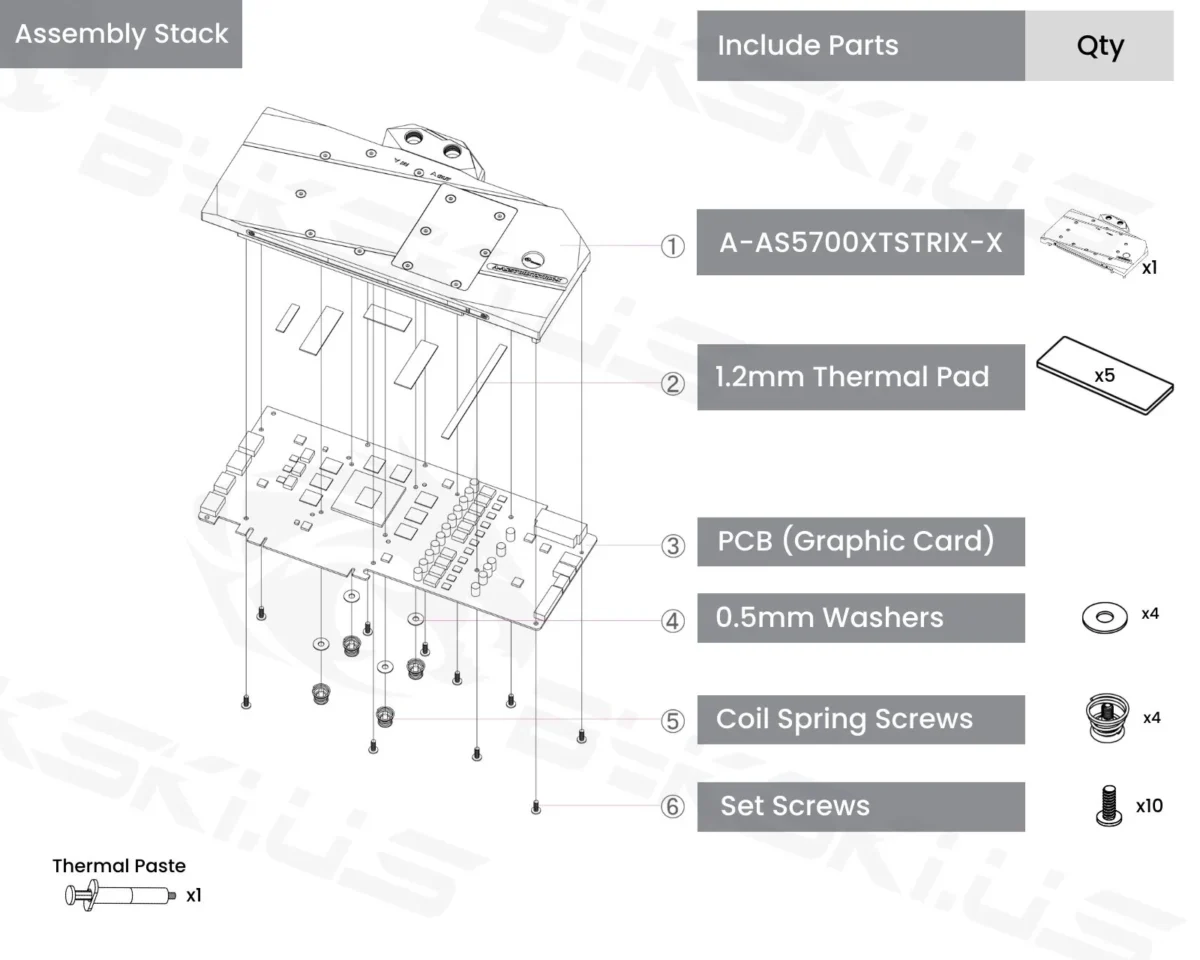

PARTS INCLUDED
- 1x Full Coverage GPU Water Block
- 2x Stop Fitting
- 1x Mounting Hardware

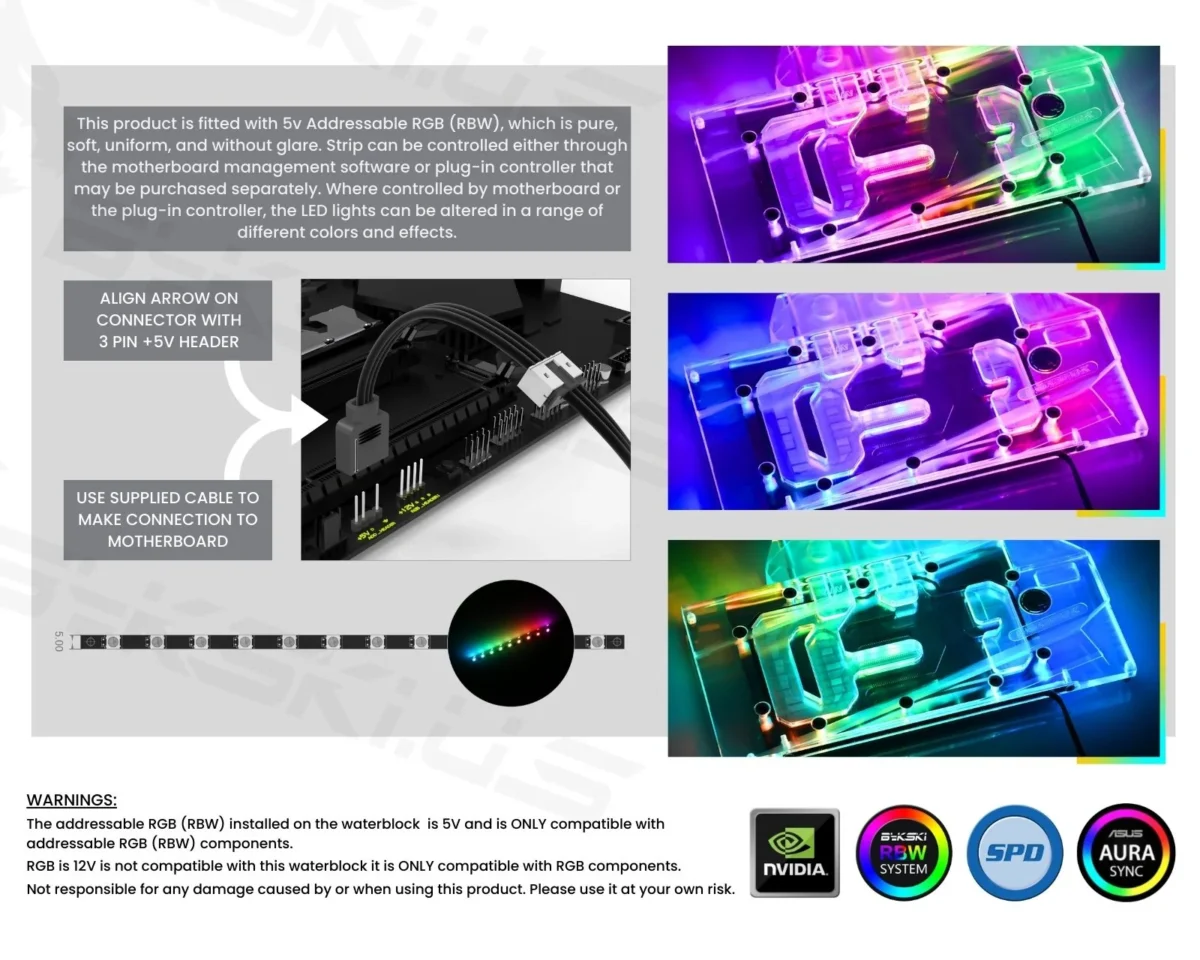

- 1x 5v Addressable RGB (RBW)
Note!
Bykski LED modules always operate with 5 Volt. For hassle free running you always need a 3-pin 5 Volt ADD-Header or compatible controller.
Attention!
If you connect the 5 Volt LED model with a 12 Volt power, the 5 Volt module will be destroyed by the overload!
Some manufacturers stick a protection foil on the backside of their CPU/ GPU coolers. This foil must be removed before mounting. Bykski does not assume any liability for improper use or faulty assembly
